• Trademark：Hongjin
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Rated Speed：1.2
• Rated Acceleration：400
• Frequency Range：5-4500
• Rated Random Thrust：800
• Rated Sinusoidal Thrust：1000
• Power Source：AC220V
• Weight：500-1000Kg
• Control：Computer Control
• Display：Digital
• Model NO.：HJ-68
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-68 Display Digital Control Computer Control Weight 500-1000Kg Power Source AC220V Rated Sinusoidal Thrust 1000 Rated Random Thrust 800 Frequency Range 5-4500 Rated Acceleration 400 Rated Speed 1.2 Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Features
1. The well-designed moving coil frame has a high first-order axial resonance frequency.
2. Double magnetic circuit, low magnetic flux leakage, compact and reasonable structure, composite guiding mechanism of rocker arm roller and imported linear bearing, high guiding rigidity and strong eccentric load capacity.
3. The vibration isolation of the trunnion does not require a special foundation, and it is easy to install and move.
4. The advanced moving coil winding process ensures the high reliability of the moving coil.

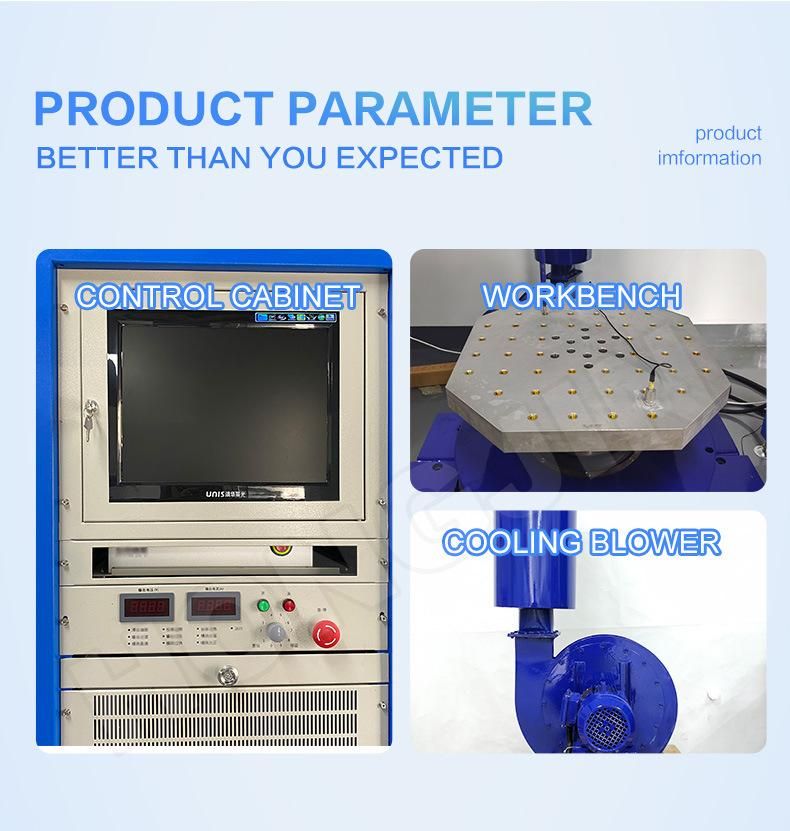

5. The new air duct design enhances the cooling effect.
6. Large static stiffness, small dynamic stiffness bearing airbag, improve the bearing capacity of the vibration table and improve the low frequency performance.

Product Usage

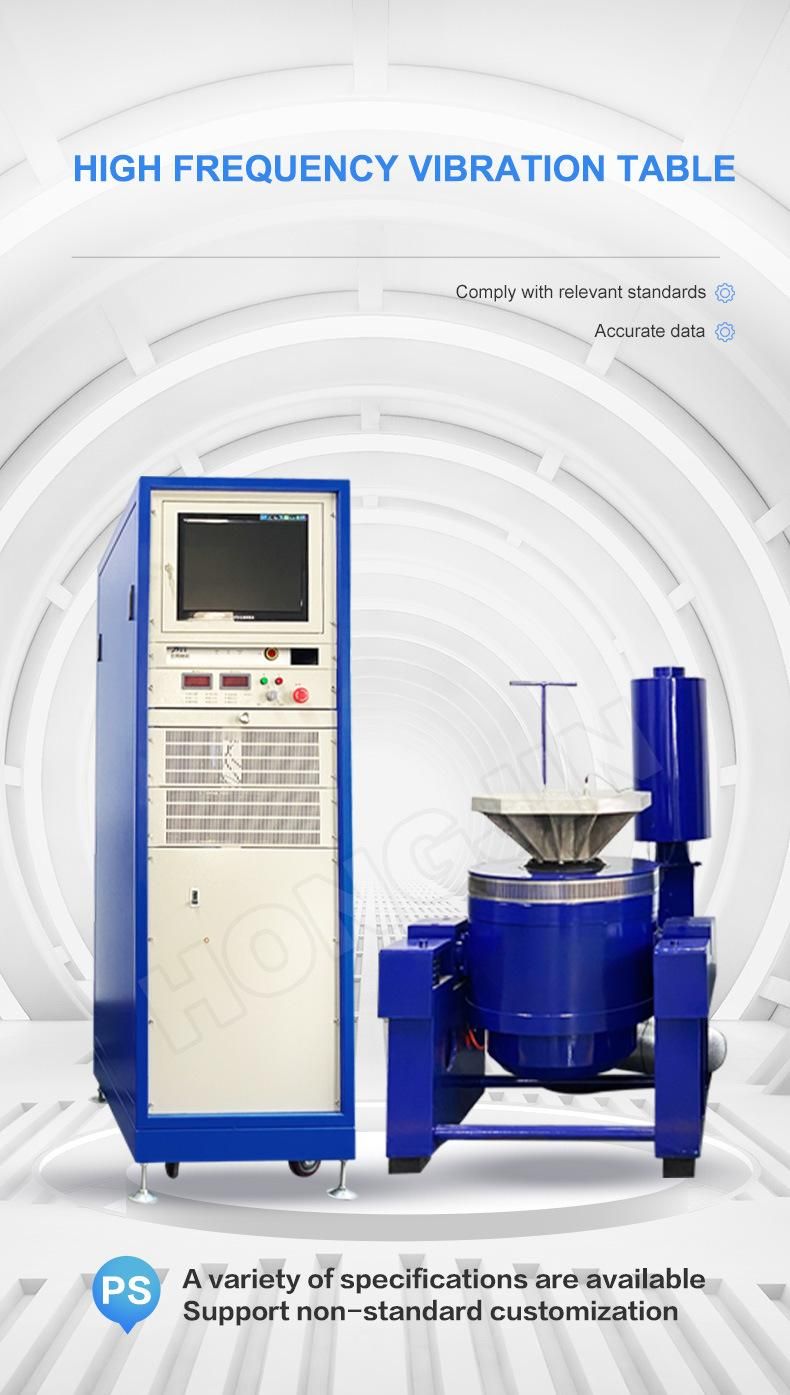

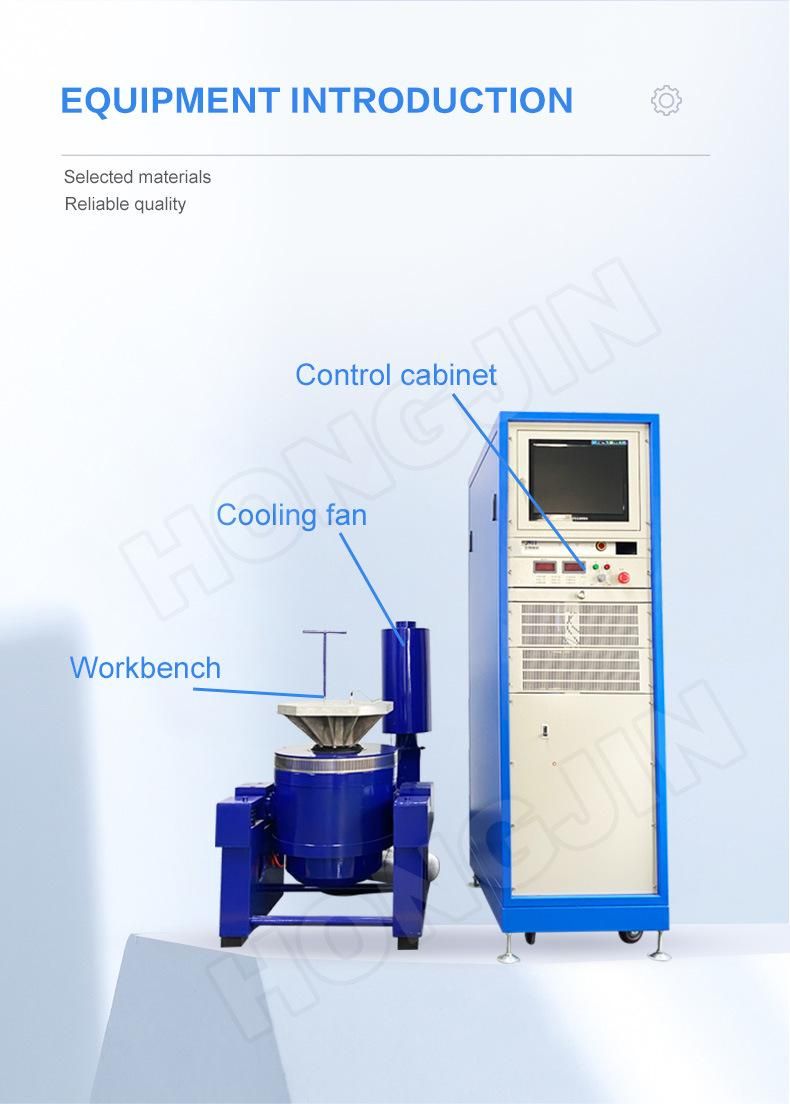

The electric vibration series products produced by our company adopt modern advanced technologies and special processes such as "dual magnetic circuit structure", "self-generating skeleton dynamic coil", "air suspension support", "linear bearing and roller guide", "trunnion vibration isolation", etc. , can complete the three-axis sinusoidal vibration test and broadband random vibration test respectively, can complete the classical (half-sine, trapezoidal, post-peak sawtooth) pulse and shock response spectrum test. A climate box can be configured to complete the comprehensive test of mechanics and climate in multiple environments.


Model	Rated sinusoidal  thrust	Rated random  thrust	Frequency  range	Rated  acceleration	Rated  speed	Rated  displacement	Maximum  load	Equivalent weight  of moving parts	working  desk size
HJS-1	1000	800	5-4500	400	1.2	25	70	2.5	Φ150
HJS-1.5	1500	1200	5-4500	600	1.2	25	70	2.5	Φ150
HJS-2	2000	1600	5-4000	800	1.6	25	70	2.5	Φ150
HJS-2a	2000	1600	2-3000	250	1.4	40	140	8	Φ230
HJS-3	3000	2400	5-4000	1000	1.6	25	120	3	Φ150
HJS-3a	3000	2100	2-3000	350	1.4	40	140	8.5	Φ230
HJS-6	6000	4800	5-3000	1000	1.6	25	200	6	Φ200
HJS-6a	6000	4200	2-3000	500	1.4	51	300	12	Φ230
HJS-10	10000	8000	5-3000	1000	1.8	51	150	10	Φ200
HJS-20	20000	18000	5-3000	1000	2	51	300	20	Φ320
HJS-30	30000	30000	5-3000	1000	1.8	51	500	30	Φ370
HJS-40	40000	40000	5-3000	900	1.8	51	800	44	Φ440
HJS-50	50000	50000	5-2800	1000	1.8	51	800	50	Φ440
HJS-60	60000	50000	5-2800	830	1.8	51	800	60	Φ440
HJS-100	100000	80000	5-2200	850	1.8	51	1000	110	Φ580
HJS-160	160000	130000	5-2000	850	1.6	51	1200	164	Φ600

The Introduction Of Hongjin
Hongjin products are widely used in paper products, packaging, ink printing, tape, luggage, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, suitable for all scientific research units, Quality inspection agencies and academic fields. Products comply with UL, ASTM, JIS, GB, SO, TAPPI, EN, DIN, BS and other domestic and foreign standards. We have CE certificates, ISO certificates, and are a high-tech enterprise with more than ten years of experience.
