• Model NO.：HZDP-80kv
• Accuracy Grade：0.5
• Load Way：High Voltage Hipot Tester
• Loading Method：High Voltage Hipot Tester
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Form：Vlf High Voltage Tester
• Output Rated Voltage：30kv, 50kv, 60kv, 80kv, 90kv or Others
• Output Frequency：0.1Hz,0.05Hz,0.02Hz
• Accuracy：± (3% of Full Scale +0.5 Kv)
• Voltage Waveform Distortion：≤5%
• Humidity：≤85%Rh
• Power Supply：AC50 Hz,220V ±5%
• Language：English
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9022909090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZDP-80kv Accuracy Grade 0.5 Load Way High Voltage Hipot Tester Loading Method High Voltage Hipot Tester Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Form Vlf High Voltage Tester Output Rated Voltage 30kv, 50kv, 60kv, 80kv, 90kv or Others Output Frequency 0.1Hz,0.05Hz,0.02Hz Accuracy ± (3% of Full Scale +0.5 Kv) Voltage Waveform Distortion ≤5% Humidity ≤85%Rh Power Supply AC50 Hz,220V ±5% Language English Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9022909090 Production Capacity 100 PCS/Month

Product Description

China 2022 30kv 40kv 50kv 60kv 80kv 90kv 100kv 120kv 0.1Hz Hv AC Vlf Cable Testing Equipment High Voltage Hipot Tester Price I.Packaging & Delivery



Packaging Details:	vlf ac hipot tester standard package for low frequency generator
Delivery Detail:	vlf ac hipot tester 7-15days after order confirmed

II.Features

Model no	Rated Voltage	Load Carrying Capacity	Power FuseTube	Product Structure
HZDP-30	30kV (Peak)	0.1Hz,≤1.1µF	10A	Controller Booster
		0.05Hz,≤2.2µF
		0.02Hz,≤5.5µF
HZDP-40	40kV (Peak)	0.1Hz,≤1.1µF	10A	Controller Booster
		0.05Hz,≤2.2µF
		0.02Hz,≤5.5µF
HZDP-50	50kV (Peak)	0.1Hz,≤1.1µF	20A	Controller Booster
		0.05Hz,≤2.2µF
		0.02Hz,≤5.5µF
HZDP-60	60kV (Peak)	0.1Hz,≤1.1µF	20A	Controller Booster
		0.05Hz,≤2.2µF
		0.02Hz,≤5.5µF
HZDP-80	80kV (Peak)	0.1Hz,≤1.1µF	20A	Controller Booster
		0.05Hz,≤2.2µF
		0.02Hz,≤5.5µF
HZDP-90	90kV (Peak)	0.1Hz,≤1.1µF	20A	Controller Booster

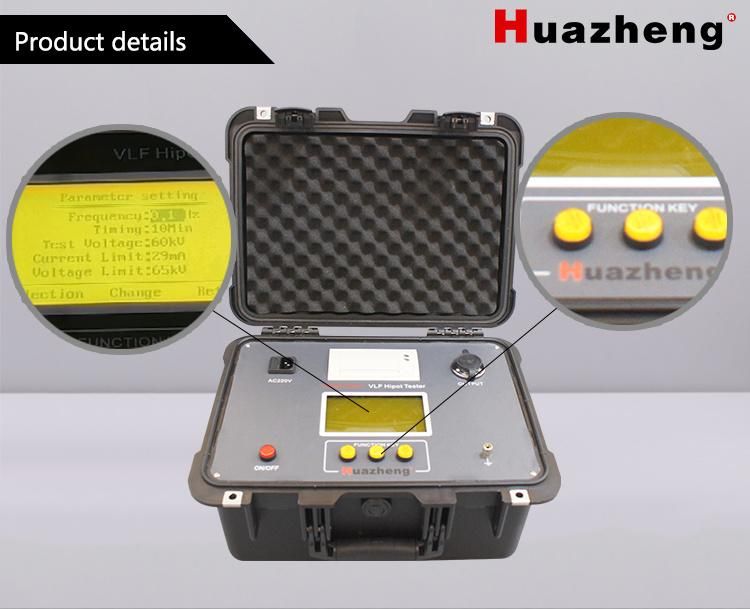

III.Detailed Photos


IV.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
