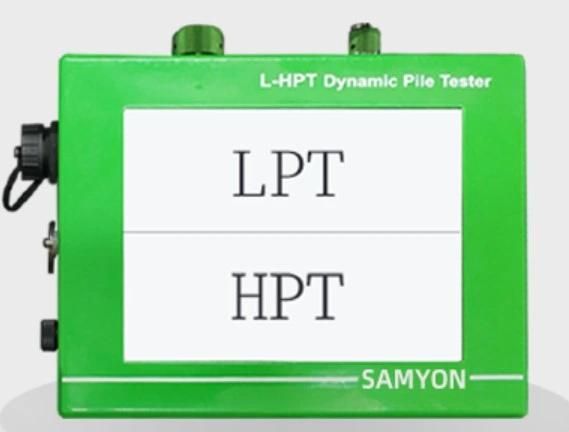

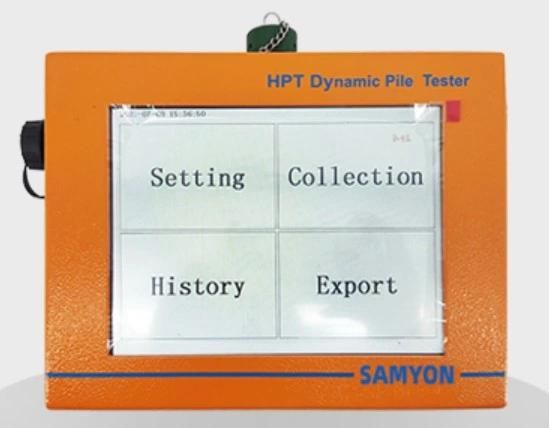

ASTM D4945 Pile Driving Analyzer for Dynamic Pile Loading Testing

Beijing Samyon Instruments Co., Ltd.
  • After-sales Service：24hours
  • Warranty：One Year
  • Standards：ASTM D 4945
  • Sampling Frequency：10 kHz, 20 kHz, 40 kHz.
  • Sampling Point：1024, 2048 and 4096
  • Application：Pile Bearing Capacity

Base Info

  • Model NO.：HPT
  • Transport Package：Carton
  • Specification：ISO
  • Trademark：SAMYON
  • Origin：China
  • HS Code：903180
  • Production Capacity：100 PCS ,Month

Description

Sampling frequency is Optional of 10 kHz, 20 kHz, 30 kHz and 40 kHz.
Sampling points are optional of 1024, 2048 and 4096. Maximum sampling time is up to 400 ms
Before test the two accelerometers and two strain transducers are self-checked automatically, determine whether the system is in normal state.
Automatically check the static strain deviation of the strain transducer during installation and adjusted to zero before blow.
During test every blow can be saved automatically
Built-in lithium battery can be used more than 5 hours continuously.
RCAPWAP program carry on match analysis automatically or manually. HPTLPTL-HPT ASTM D4945 Pile Driving Analyzer for Dynamic Pile Loading Testing  ASTM D4945 Pile Driving Analyzer for Dynamic Pile Loading TestingASTM D4945 Pile Driving Analyzer for Dynamic Pile Loading TestingSLPTDRILLHOLECSLASTM D4945 Pile Driving Analyzer for Dynamic Pile Loading TestingASTM D4945 Pile Driving Analyzer for Dynamic Pile Loading TestingASTM D4945 Pile Driving Analyzer for Dynamic Pile Loading Testing
