• Model NO.：3672
• Warranty：3 Years Warranty
• Power Source：AC 100-240V
• Weight：〉10Kg
• Installation：Direct Connected
• Customized：Non-Customized
• Transport Package：Aluminum Alloy Box
• Specification：W*H*D=516mm*280mm*690mm
• Trademark：Ceyear
• Origin：China
• HS Code：9030849000
• Production Capacity：100 Pieces , Year

Frequency CharacteristicFrequency Range10MHz~13.5/26.5GHzFrequency Resolution1HzFrequency Accuracy±1×10-7(23ºC±3ºC)Port Harmonic SuppressionTypical ValueHarmonic Suppression on Port 1 And 3-48dBc(0.01~4GHz)
-57dBc(4~13.5GHz)
-57dBc(13.5~26.5GHz)-51dBc(0.01~4GHz)
-60dBc(4~13.5GHz)
-60dBc(13.5~26.5GHz)Harmonic Suppression On Port 2 And 4-13dBc(0.01~4GHz)
-18dBc(4~13.5GHz)
-18dBc(13.5~26.5GHz)-13dBc(0.01~4GHz)
-21dBc(4~13.5GHz)
-21dBc(13.5~26.5GHz)Port Power CharacteristicTypical ValuePower Sweep Range33dB(10~500MHz)
30dB(0.5~4GHz)
34dB(4~7GHz)
31dB(7~13.5GHz)
29dB(13.5~20GHz)
25dB(20~26.5GHz)42dB(10~500MHz)
37dB(0.5~4GHz)
42dB(4~7GHz)
41dB(7~13.5GHz)
38dB(13.5~20GHz)
35dB(20~26.5GHz)Max. Output Power
(Standard Configuration, Option 400)Port1, 30dBm(0.01~4GHz)(Filter Mode)
+9dBm(10~50MHz)(High Power Mode)
+6dBm(0.05~4GHz)(High Power Mode)
+12dBm(4~7GHz)
+8dBm(7~13.5GHz)
+6dBm(13.5~20GHz)
+4dBm(20~26.5GHz)+16dBm(10~50MHz)(High Power Mode)
+11dBm(0.05~4GHz)(High Power Mode)
+16dBm(4~7GHz)
+14dBm(7~13.5GHz)
+11dBm(13.5~20GHz)
+9dBm(20~26.5GHz)Port2, 4+13dBm(10~50MHz)
+13dBm(0.05~4GHz)
+10dBm(4~7GHz)
+9dBm(7~13.5GHz)
+6dBm(13.5~20GHz)
+2dBm(20~26.5GHz)+16dBm(10~50MHz)
+16dBm(0.05~4GHz)
+16dBm(4~7GHz)
+15dBm(7~13.5GHz)
+13dBm(13.5~20GHz)
+8dBm(20~26.5GHz)Max. Output Power
(Option 201, 401, 402)Port1, 3-1dBm(0.01~4GHz)(Filter Mode)
+8dBm(10~50MHz)(High Power Mode)
+5dBm(0.05~4GHz)(High Power Mode)
+10dBm(4~7GHz)
+6dBm(7~13.5GHz)
+4dBm(13.5~20GHz)
+2dBm(20~26.5GHz)+15dBm(10~50MHz)(High Power Mode)
+10dBm(0.05~4GHz)(High Power Mode)
+15dBm(4~7GHz)
+13dBm(7~13.5GHz)
+10dBm(13.5~20GHz)
+8dBm(20~26.5GHz)Port2, 4+12dBm(10~50MHz)
+12dBm(0.05~4GHz)
+9dBm(4~7GHz)
+8dBm(7~13.5GHz)
+5dBm(13.5~20GHz)
0dBm(20~26.5GHz)+15dBm(10~50MHz)
+15dBm(0.05~4GHz)
+15dBm(4~7GHz)
+14dBm(7~13.5GHz)
+12dBm(13.5~20GHz)
+7dBm(20~26.5GHz)1dB Compression Level/+13dBmPulse CharacteristicTypical ValuePulse Width Setting Range33ns~60s20ns~60sPulse Transition Time
(10%-90%)30ns20nsPulse On/Off Ratio64dB(0.01~4GHz)
80dB(4~26.5GHz)Network Parameter CharacteristicTypical ValueSystem Dynamic Range90dB(0.01~1GHz)
120dB(1~4GHz)
127dB(4~10GHz)
120dB(10~20GHz)
115dB(20~24GHz)
110dB(24~26.5GHz)100dB(0.01~1GHz)
128dB(1~4GHz)
135dB(4~10GHz)
132dB(10~20GHz)
129dB(20~24GHz)
125dB(24~26.5GHz)Effective Directivity48dB(0.01~2GHz)
44dB(2~26.5GHz)60dB(0.01~2GHz)
53dB(2~26.5GHz)Effective Source Match40dB(0.01~2GHz)
30dB(2~26.5GHz)46dB(0.01~2GHz)
36dB(2~26.5GHz)Effective Load Match48dB(0.01~2GHz)
44dB(2~26.5GHz)60dB(0.01~2GHz)
51dB(2~26.5GHz)Reflection Tracking±0.04dB(0.01~2GHz)
±0.05dB(2~26.5GHz)±0.004dB(0.01~2GHz)
±0.010dB(2~26.5GHz)Transmission Tracking±0.10dB(0.01~2GHz)
±0.12dB(2~26.5GHz)±0.005dB(0.01~2GHz)
±0.015dB(2~26.5GHz)OthersTypical ValueAmplitude Trace Noise
dB rms(1kHz If Bandwidth)0.0500(10~50MHz)
0.0070(50~500MHz)
0.0020(0.5~13.5GHz)
0.0030(13.5~20GHz)
0.0050(20~26.5GHz)0.0020(10~50MHz)
0.0008(50~500MHz)
0.0009(0.05~13.5GHz)
0.0008(13.5~20GHz)
0.0010(20~26.5GHz)Phase Trace Noise
deg rms(1kHz IF  Bandwidth)0.200(10~50MHz)
0.051(50~500MHz)
0.042(0.5~13.5GHz)
0.054(13.5~20GHz)
0.054(20~26.5GHz)0.020(10~50MHz)
0.006(50~500MHz)
0.006(0.05~13.5GHz)
0.006(13.5~20GHz)
0.012(20~26.5GHz)IF Bandwidth1Hz~5MHzAmplitude Display Resolution0.001dB/divPhase Display Resolution0.01°/divSetting Requirement of Reference Level Amplitude-500~+500dBSetting Requirement of Reference Level Phase-500~+500°General CharacteristicPort Connectors3.5mm (Male), 50 ohm system impedanceNumber of Measuring Ports3672A/B Standard configuration:2 Ports;3672A/B-400 Option:4 PortsPeripheral InterfaceUSB, GPIB, VGA, LANOperating SystemWindows 7Display12.1-Inch High Resolution Touch ScreenSizeW´H´D=426mm×266mm×550mm (excluding support and handle)
W´H´D=516mm×280mm×640mm (including handle, support and back foot)Max. Power Consumption400wMax. Weight42kg
3672C/D Technical SpecificationsFrequency CharacteristicFrequency Range10MHz~43.5/50GHzFrequency Resolution1HzFrequency Accuracy±1×10-7(23ºC±3ºC)Port Harmonic Suppression Typical ValueHarmonic Suppression on Port 1 And 3-48dBc(0.01~4GHz)
-57dBc(4~13.5GHz)
-57dBc(13.5~50GHz)-51dBc(0.01~4GHz)
-60dBc(4~13.5GHz)
-60dBc(13.5~50GHz)Harmonic Suppression on Port 2 And 4-13dBc(0.01~4GHz)
-18dBc(4~13.5GHz)
-57dBc(13.5~50GHz)-13dBc(0.01~4GHz)
-21dBc(4~13.5GHz)
-60dBc(13.5~50GHz)Port Power CharacteristicTypical ValuePower Sweep Range32dB(10~50MHz)
29dB(0.05~4GHz)
28dB(4~13.5GHz)
30dB(13.5~40GHz)
27dB(40~47GHz)
15dB(47~50GHz)41dB(10~500MHz)
40dB(0.5~4GHz)
36dB(4~13.5GHz)
38dB(13.5~40GHz)
36dB(40~47GHz)
23dB(47~50GHz)Max. Output Power
(Standard Configuration, Option 400)Port 1, 3-1dBm(10~50MHz)(Filter Mode)
0dBm(0.05~4GHz)(Filter Mode)
+8dBm(10~50MHz)(High Power Mode)
+5dBm(0.05~4GHz) (High Power Mode)
+5dBm(4~13.5GHz)
+7dBm(13.5~40GHz)
+5dBm(40~47GHz)
-7dBm(47~50GHz)+13dBm(10~50MHz)(High Power Mode)
+9dBm(0.05~4GHz)(High Power Mode)
+10dBm(4~13.5GHz)
+13dBm(13.5~40GHz)
+10dBm(40~47GHz)
0dBm(47~50GHz)Port 2, 4+11dBm(10~50MHz)
+9dBm(0.05~4GHz)
+6dBm(4~13.5GHz)
+7dBm(13.5~40GHz)
+5dBm(40~47GHz)
-7dBm(47~50GHz)+16dBm(10~50MHz)
+15dBm(0.05~4GHz)
+13dBm(4~13.5GHz)
+12dBm(13.5~40GHz)
+9dBm(40~47GHz)
-1dBm(47~50GHz)Max. Output Power
(Option 201, 401, 402)Port 1, 3-2dBm(10~50MHz)(Filter Mode)
-1dBm(0.05~4GHz)(Filter Mode)
+7dBm(10~50MHz)(High Power Mode)
+4dBm(0.05~4GHz)(High Power Mode)
+3dBm(4~13.5GHz)
+5dBm(13.5~40GHz)
+2dBm(40~47GHz)
-10dBm(47~50GHz)+12dBm(10~50MHz)(High Power Mode)
+8dBm(0.05~4GHz)(High Power Mode)
+9dBm(4~13.5GHz)
+12dBm(13.5~40GHz)
+9dBm(40~47GHz)
-1dBm(47~50GHz)Port 2, 4+10dBm(10~50MHz)
+8dBm(0.05~4GHz)
+4dBm(4~13.5GHz)
+5dBm(13.5~40GHz)
+2dBm(40~47GHz)
-10dBm(47~50GHz)+15dBm(10~50MHz)
+14dBm(0.05~4GHz)
+12dBm(4~13.5GHz)
+11dBm(13.5~40GHz)
+8dBm(40~47GHz)
-2dBm(47~50GHz)1dB Compression Level/+10dBmPulse CharacteristicTypical ValuePulse Width Setting Range33ns~60s20ns~60sPulse Transition Time
(10%-90%)30ns20nsPulse On/Off Ratio64dB(0.01~4GHz)
80dB(4~40GHz)
80dB(40~50GHz)Network Parameter CharacteristicsTypical ValueSystem Dynamic Range74dB(0.01~1GHz)
119dB(1~13.5GHz)
115dB(13.5~26.5GHz)
110dB(26.5~35GHz)
105dB(35~47GHz)
90dB(47~50GHz)105dB(0.01~1GHz)
133dB(1~13.5GHz)
126dB(13.5~26.5GHz)
120dB(26.5~35GHz)
116dB(35~47GHz)
103dB(47~50GHz)Effective Directivity42dB(0.01~13.5GHz)
38dB(13.5~40GHz)
36dB(40~50GHz)50dB(0.01~13.5GHz)
45dB(13.5~40GHz)
42dB(40~50GHz)Effective Source Match36dB(0.01~2GHz)
31dB(2~13.5GHz)
28dB(13.5~40GHz)
27dB(40~50GHz)43dB(0.01~2GHz)
34dB(2~13.5GHz)
33dB(13.5~40GHz)
33dB(40~50GHz)Effective Load Match42dB(0.01~13.5GHz)
37dB(13.5~40GHz)
35dB(40~50GHz)60dB(0.01~13.5GHz)
56dB(13.5~40GHz)
51dB(40~50GHz)Reflection Tracking±0.04dB(0.01~13.5GHz)
±0.03dB(13.5~40GHz)
±0.04dB(40~50GHz)±0.010dB(0.01~13.5GHz)
±0.010dB(13.5~40GHz)
±0.020dB(40~50GHz)Transmission Tracking±0.1dB(0.01~13.5GHz)
±0.16dB(13.5~40GHz)
±0.20dB(40~50GHz)±0.012dB(0.01~13.5GHz)
±0.015dB(13.5~40GHz)
±0.020dB(40~50GHz)OthersTypical ValueAmplitude Trace Noise
dB rms(1kHz IF Bandwidth)0.050(10~50MHz)
0.020(50~500MHz)
0.005(0.5~13.5GHz)
0.004(13.5~26.5GHz)
0.008(26.5~50GHz)0.0060(10~50MHz)
0.0020(50~500MHz)
0.0010(0.5~13.5GHz)
0.0009(13.5~26.5GHz)
0.0040(26.5~50GHz)Phase Trace Noise
deg rms (1kHz IF Bandwidth)0.900(10~50MHz)
0.700(50~500MHz)
0.040(0.5~13.5GHz)
0.050(13.5~26.5GHz)
0.060(26.5~50GHz)0.040(10~50MHz)
0.010(50~500MHz)
0.005(0.5~13.5GHz)
0.020(13.5~26.5GHz)
0.030(26.5~50GHz)IF Bandwidth1Hz~5MHzAmplitude Display Resolution0.001dB/divPhase Display Resolution0.01°/divSetting Requirement of Reference Level Amplitude-500~+500dBSetting Requirement of Reference Level Phase-500~+500°General CharacteristicPort Connectors2.4mm (Male), 50 ohm system impedanceNumber of Measuring Ports3672C/D Standard configuration:2 ports, 3672C/D-400 Option: 4 portsPeripheral InterfaceUSB, GPIB, VGA, LANOperating SystemWindows 7Display12.1-Inch High Resolution Touch ScreenSizeW´H´D=426mm×266mm×600mm (excluding support and handle)
W´H´D=516mm×280mm×690mm (including handle, support and back foot)Max. Power Consumption500wMax. Weight47kg
3672E Technical SpecificationsFrequency Characteristics Frequency Range10MHz~67GHzFrequency Resolution1HzFrequency Accuracy±1×10-7(23ºC±3ºC)Port Harmonic SuppressionTypical ValueHarmonic Suppression on Port 1 and 3-48dBc(0.01~4GHz)
-57dBc(4~67GHz)-51dBc(0.01~4GHz)
-60dBc(4~67GHz)Harmonic Suppression on Port 2 and 4-13dBc(0.01~4GHz)
-18dBc(4~13.5GHz)
-57dBc(13.5~67GHz)-13dBc(0.01~4GHz)
-21dBc(4~13.5GHz)
-60dBc(13.5~67GHz)Port Power Characteristics Typical ValuePower Sweep Range32dB(10~50MHz)
29dB(0.05~4GHz)
28dB(4~26.5GHz)
29dB(26.5~35GHz)
26dB(35~40GHz)
25dB(40~67GHz)42dB(10~500MHz)
38dB(0.5~4GHz)
36dB(4~26.5GHz)
35dB(26.5~35GHz)
34dB(35~40GHz)
32dB(40~67GHz)Max. Output Power
(standard configuration, option 400)Port 1, 3-1dBm(10~50MHz)(Filter mode)
0dBm(0.05~4GHz)(Filter mode)
+8dBm(10~50MHz)(High power mode)
+5dBm(0.05~4GHz)(High power mode)
+1dBm(4~13.5GHz)
+5dBm(13.5~26.5GHz)
+3dBm(26.5~40GHz)
+5dBm(40~67GHz)+16dBm(10~50MHz)(High power mode)
+10dBm(0.05~4GHz)(High power mode)
+9dBm(4~13.5GHz)
+11dBm(13.5~26.5GHz)
+10dBm(26.5~40GHz)
+9dBm(40~67GHz)Port 2, 4+8dBm(10~50MHz)
+5dBm(0.05~4GHz)
+1dBm(4~13.5GHz)
+5dBm(13.5~26.5GHz)
+3dBm(26.5~40GHz)
+5dBm(40~67GHz)+16dBm(10~50MHz)
+15dBm(0.05~4GHz)
+10dBm(4~13.5GHz)
+11dBm(13.5~26.5GHz)
+9dBm(26.5~40GHz)
+8dBm(40~67GHz)Max. Output Power
(option 201, 401, 402)Port 1, 3-2dBm(10~50MHz)(Filter Mode)
-1dBm(0.05~4GHz)(Filter Mode)
+7dBm(10~50MHz)(High Power Mode)
+4dBm(0.05~4GHz)(High Power Mode)
-2dBm(4~13.5GHz)
+3dBm(13.5~26.5GHz)
0dBm(26.5~67GHz)+15dBm(10~50MHz)(High Power Mode)
+9dBm(0.05~4GHz)(High Power Mode)
+6dBm(4~13.5GHz)
+7dBm(13.5~26.5GHz)
+4dBm(26.5~67GHz)Port 2, 4+7dBm(10~50MHz)
+4dBm(0.05~4GHz)
-2dBm(4~13.5GHz)
+3dBm(13.5~26.5GHz)
0dBm(26.5~67GHz)+15dBm(10~50MHz)
+14dBm(0.05~4GHz)
+9dBm(4~13.5GHz)
+10dBm(13.5~26.5GHz)
+5dBm(26.5~67GHz)1dB Compression Level/+10dBmPulse CharacteristicsTypical ValuePulse Width Setting Range33ns~60s20ns~60sPulse Transition Time (10%-90%)30ns20nsPulse on/off Ratio64dB(0.01~4GHz)
80dB(4~67GHz)Network Parameter CharacteristicTypical ValueSystem Dynamic Range74dB(0.01~1GHz)
100dB(1~4GHz)
120dB(4~10GHz)
112dB(10~26.5GHz)
108dB(26.5~35GHz)
105dB(35~50GHz)
100dB(50~67GHz)100dB(0.01~1GHz)
125dB(1~4GHz)
125dB(4~10GHz)
120dB(10~26.5GHz)
115dB(26.5~35GHz)
112dB(35~50GHz)
105dB(50~67GHz)Effective Directivity35dB(0.01~2GHz)
41dB(2~13.5GHz)
34dB(13.5~40GHz)
32dB(40~67GHz)50dB(0.01~2GHz)
50dB(2~13.5GHz)
50dB(13.5~40GHz)
42dB(40~67GHz)Effective Load Match35dB(0.01~2GHz)
41dB(2~13.5GHz)
33dB(13.5~40GHz)
30dB(40~67GHz)60dB(0.01~2GHz)
50dB(2~13.5GHz)
50dB(13.5~40GHz)
45dB(40~67GHz)Reflection Tracking±0.05dB(0.01~2GHz)
±0.06dB(2~13.5GHz)
±0.08dB(13.5~40GHz)
±0.10dB(40~67GHz)±0.005dB(0.01~2GHz)
±0.005dB(2~13.5GHz)
±0.008dB(13.5~40GHz)
±0.010dB(40~67GHz)Transmission Tracking±0.10dB(0.01~2GHz)
±0.11dB(2~13.5GHz)
±0.16dB(13.5~40GHz)
±0.20dB(40~67GHz)±0.005dB(0.01~2GHz)
±0.006dB(2~13.5GHz)
±0.015dB(13.5~40GHz)
±0.020dB(40~67GHz)Others   Typical ValueAmplitude Trace Noise
dB rms(1kHz IF bandwidth)0.050(10~50MHz)
0.020(50~500MHz)
0.005(0.5~13.5GHz)
0.004(13.5~26.5GHz)
0.020(26.5~67GHz)0.0090(10~50MHz)
0.0020(50~500MHz)
0.0008(0.5~13.5GHz)
0.0008(13.5~26.5GHz)
0.0050(26.5~67GHz)Phase Trace Noise
deg rms(1kHz IF bandwidth)0.90(10~50MHz)
0.70(50~500MHz)
0.04(0.5~13.5GHz)
0.05(13.5~26.5GHz)
0.10(26.5~67GHz)0.010(10~50MHz)
0.010(50~500MHz)
0.006(0.5~13.5GHz)
0.007(13.5~26.5GHz)
0.030(26.5~67GHz)IF Bandwidth1Hz~5MHzAmplitude Display Resolution0.001dB/divPhase Display Resolution0.01°/divSetting Requirement of Reference Level Amplitude-500~+500dBSetting Requirement of Reference Level Phase-500~+500°General Characteristics Port Connectors1.85mm (Male), 50 ohm system impedanceNumber of measuring Ports3672E Standard configuration:2 ports, 3672E-400 Option: 4 portsPeripheral InterfaceUSB, GPIB, VGA, LANOperating SystemWindows 7Display12.1-Inch High Resolution Touch ScreenSizeW´H´D=426mm×266mm×600mm (excluding support and handle)
W´H´D=516mm×280mm×690mm (including handle, support and back foot)Max. Power Consumption500WMax. Weight50 kg
Ordering InformationModelDescriptionRemarks3672C-2012-Port Programmable Step AttenuatorSet two 60dB programmable step attenuators for the source path, and two 35dB programmable step attenuators for the receiver path3672C-4004-Port MeasurementTwo-source stimulus four-port VNA configuration3672C-4014-Port Programmable Step AttenuatorSet four 60dB programmable step attenuators for the source path, and four 35dB programmable step attenuators for the receiver path (Option 400 is needed)3672C-402Active Inter-modulation MeasurementFor inter-modulation signal measurement of amplifier (Option 400 is needed)3672C-006English OptionsKey, Front Panel, Label, Operation System3672C-008Pulse MeasurementFor pulse S-parameter measurement3672C-S10Time Domain MeasurementFor time-domain test, can locate and analyze the discontinuous positions in devices, fixtures or cables.3672C-S80Frequency Offset MeasurementFor frequency offset measurement. millimeter-wave frequency extension main unit needs this option3672B-S82Mixer Scalar MeasurementFor the scalar parameter measurement of mixers (Option 400 is needed)3672B-S83Mixer Vector MeasurementFor the vector parameter measurement of mixers (Option 400 is needed)3672B-S84Embedded LO Frequency Converter MeasurementFor the measurement of embedded LO frequency converters (Option 400, S82 or S83 are needed)3672C-S86Gain Compression Two-Dimension Sweep MeasurementFor the gain compression two-dimension sweep test of amplifier311232.4mm Calibration KitFor calibration of the analyzerFE0BN0BM025.02.4mm Test cableFor measurement of the analyzerFE0BN0BL025.02.4mm Test cableFor measurement of the analyzer20404E-Cal KitFor calibration of the analyzer (10MHz-50GHz 2 ports)87233USB Power ProbeFor 402, S82, S86 Options in the process of power calibration (50MHz-40GHz)

3672D Options

Model	Description	Remarks
3672D-201	2-Port Programmable Step Attenuator	Set two 60dB programmable step attenuators for the source path, and two 35dB programmable step attenuators for the receiver path
3672D-400	4-Port Measurement	Two-source stimulus four-port VNA configuration
3672D-401	4-Port Programmable Step Attenuator	Set four 60dB programmable step attenuators for the source path, and four 35dB programmable step attenuators for the receiver path (Option 400 is needed)
3672D-006	English Options	Key, Front Panel, Label, Operation System
3672D-008	Pulse Measurement	For pulse S-parameter measurement

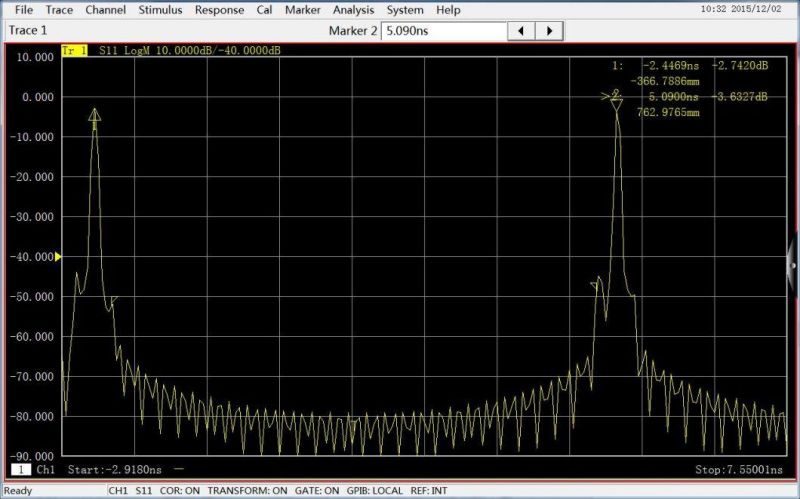

3672D-S10	Time Domain Measurement	For time-domain test, can locate and analyze the discontinuous positions in devices, fixtures or cables.
3672D-S80	Frequency Offset Measurement	For frequency offset measurement. millimeter-wave frequency extension main unit needs this option
3672B-S82	Mixer Scalar Measurement	For the scalar parameter measurement of mixers (Option 400 is needed)
3672B-S83	Mixer Vector Measurement	For the vector parameter measurement of mixers (Option 400 is needed)
3672B-S84	Embedded LO Frequency Converter Measurement	For the measurement of embedded LO frequency converters(Option 400, S82 or S83 are needed)
3672D-S86	Gain Compression Two-Dimension Sweep Measurement	For the gain compression two-dimension sweep test of amplifier
31123A	2.4mm Calibration Kit	For calibration of the analyzer
FE0BN0BM025.0	2.4mm Test cable	For measurement of the analyzer
FE0BN0BL025.0	2.4mm Test cable	For measurement of the analyzer
20404	E-Cal Kit	For calibration of the analyzer (10MHZ-50GHZ 2 ports)




3672E Options


Model	Description	Remarks
3672E-201	2-Port Programmable Step Attenuator	Set two 50dB programmable step attenuators for the source path, and two 50dB programmable step attenuators for the receiver path
3672E-400	4-Port Measurement	Two-source stimulus four-port VNA configuration
3672E-401	4-Port Programmable Step Attenuator	Set four 50dB programmable step attenuators for the source path, and four 50dB programmable step attenuators for the receiver path (Option 400 is needed)
3672E-402	Active Inter-modulation Measurement	For inter-modulation signal measurement of amplifier (Option 400 is needed)
3672E-006	English Options	Key, Front Panel, Label, Operation System
3672E-008	Pulse Measurement	For pulse S-parameter measurement
3672E-S10	Time-Domain Measurement	For time-domain test, can locate and analyze the discontinuous positions in devices, fixtures or cables.
3672E-S80	Frequency Offset Measurement	For frequency offset measurement. millimeter-wave frequency extension main unit needs this option
3672E-S82	Mixer Scalar Measurement	For the scalar parameter measurement of mixers (Option 400 is needed)
3672E-S83	Mixer Vector Measurement	For the vector parameter measurement of mixers (Option 400 is needed)
3672E-S84	Embedded LO Frequency Converter Measurement	For the measurement of embedded LO frequency converters(Option 400, S82 or S83 are needed)
3672E-S86	Gain Compression Two-Dimension Sweep Measurement	For the gain compression two-dimension sweep test of amplifier
31128	1.85mm Calibration Kit	For calibration of the analyzer
N4697F/ FF0CN0CM025.0 FF0CN0CL025.0	1.85mm Test cable	For measurement of the analyzer
20409	E-Cal Kit	For calibration of the analyzer (10MHZ-67GHZ, 2 ports)

FAQ
1. What is the relationship between China Electronics Technology Instruments Co., Ltd and  Ceyear Technologies Co., Ltd?
China Electronics Technology Instruments Co., Ltd is the former name of Ceyear Technologies Co., Ltd before Year 2021, but the brand of both are all Ceyear. SInce the beginning of 2021, as Ceyear is to be a listed company, the name was transformed from China Electronics Technology Instruments Co., Ltd to Ceyear Technologies Co., Ltd. Therefore, in previous product introductions and company catalog, sometimes you can still find the name of China Electronics Technology Instruments Co., Ltd

2. Is Ceyear a manufacturer or a trading company?
Ceyear is a manufacturer first, with R&D team (around 1500 engineer), production line (around 500 people), and domestic and overseas slaes team.
Thus Ceyear is a company integrating R&D, production and sales.

3. What products do you have?
T&M instruments, optical communication tools, microwave component, test systems, and other customized products.

4. How can I get local sevice?
Ceyear has worked with local distributors in different countries for many years, and could provide local after-sale services with the help of those local partners. If you already have some products of Ceyear(previously EI brand included) and looking for services, you can directly contact us through Made-in-China platform.
