• Model NO.：AS-DT-150
• Display：Digital
• Control：Pid Control
• Weight：500-1000Kg
• Power Source：AC380V
• Max. Sample Dimension：W1000xh800xd1000mm
• Max. Drop Height：1500mm
• Fall Height Error：+,-2%
• Standard：ISO2248, JIS Z0202-87
• Sample Weight：100 Kg
• Drop Method：Free Fall
• Transport Package：Standard Export Plywood Case
• Specification：CE, ISO
• Trademark：ASLi
• Origin：China
• HS Code：85141090
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. AS-DT-150 Display Digital Control Pid Control Weight 500-1000Kg Power Source AC380V Max. Sample Dimension W1000xh800xd1000mm Max. Drop Height 1500mm Fall Height Error +/-2% Standard ISO2248, JIS Z0202-87 Sample Weight 100 Kg Drop Method Free Fall Transport Package Standard Export Plywood Case Specification CE, ISO Trademark ASLi Origin China HS Code 85141090 Production Capacity 100 Sets/Month

Product Description

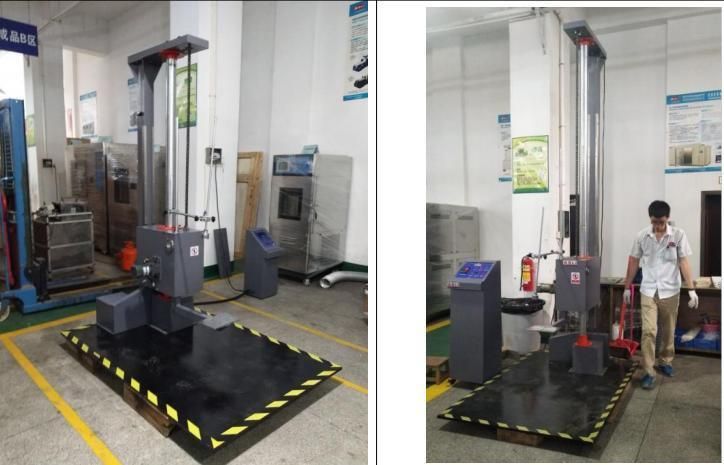

ISTA Drop Tester Package Drop Test Machine Free Fall 2 Meter Drop Height


Product DescriptionISTA Drop Tester Package Drop Test Machine Free Fall 2 Meter Drop Height is designed to test the impact strength and damage of product packaged during transportation and handling process. During dropping, the carrier will rotate to allow the packed products to fall freely. lt can test the faces, edges and corners of the product, with small vibration, and stable and reliable operation.

 ISTA Drop Tester Package Drop Test Machine Free Fall 2 Meter Drop Height is used for packaged products in simulating different edges, corners, surface at different heights and fall to the ground situation, then assess the damage to the product and its components. It can withstand the fall height and impact-resistant strength.

Drop Testing Machine Parameter:

Model	AS-DT-150
Max. Weight of Test Samples (Kg)	100
Height of Drop (mm)	300~1500, 2000 is optional
Max. Dimension of Test Sample WxHxD (mm)	1000x800x1000
Falling Floor Size WxHxD (mm)	1700x20x1200

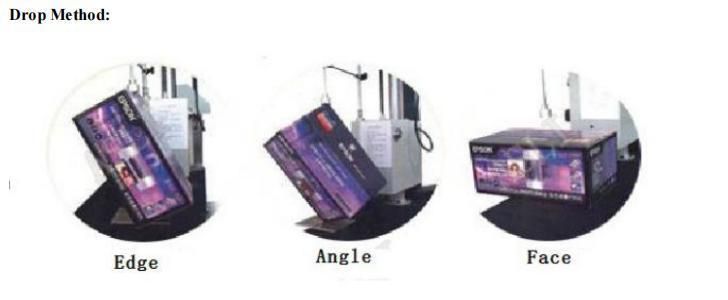

Drop Method	Face, edge, angle
Test Bench External Dimension WxHxD (mm)	1700x2300x1200
Weight (Kg)	700



Drop Testing Machine Feature

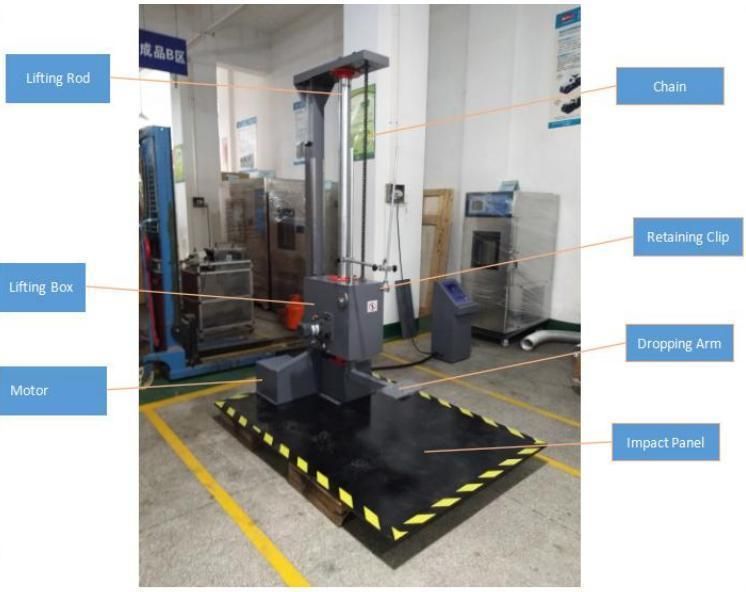

1. Advanced structure ensure that bracket and specimen separate freely and specimen drop freely through bracket rapid downward motion then rotation movement. It delivers perfect test for specimen side, edge and corner.
2. It uses electric reset, electronically controlling falling, electric lifting, which makes it is easy to operate.
3. High Accuracy, direct display
4. It is steady when it is dropping and lifting


Packing Detail:

more information about Drop Simulation Machine, Carton Free Falling Tester, Packaging Drop Test Machine, please feel free to contact us.
