6 Phase Secondary Injection Tester Six Phase Relay Test Set

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • After-sales Service：Life Time Support
  • Warranty：1 Year
  • Type：Secondary Injection Tester
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Application：Six Phase Secondary Injection Tester

Base Info

  • Model NO.：GDJB-PC6
  • Function：Six Phase Relay Protection Test Set
  • AC Current Source：6 Phase Parallel Current Output
  • DC Current Source：20A , Phase, Power: 300va,Phase
  • AC Voltage Source：Phase Voltage Output:6X( 0~125V),Phase
  • DC Voltage Source：0~150V Accuracy: 0.5%
  • Ime Measurement Range: Range：1ms-9999s; Accuracy: 1ms
  • Product Name：6 Phase Relay Test Set Relay Tester
  • Transport Package：Standard Venner Case
  • Specification：67*61*41CM
  • Trademark：Gold
  • Origin：Chongqing
  • HS Code：9031809090
  • Production Capacity：1000PCS,Month

Description

PowerAC220V±10%  50Hz,10A

Features for 6 Phase Secondary injection tester six phase relay test set :

  • Embedded host machine, equipped with big programmed CPLD(Complex Programmable Logic Device);

  • 12channels D/A output simultaneously in a single machine;

  • High precise linear power amplifier,6 voltage outputs and 6 current outputs;

  • 8inch LCD screen display.Provide with keyboard/mouse connecting port,also 2USB port,2 RS232 port,to communicate with PC and other communication devices;

  • Easy to carry,suitable for flexible testing and wild working;

  • Intelligent self-protection;

  • 8 channels switching value input and 4channels switching value output.Input contact is idle contact and 0-250V potential contact for selectable, intelligent identification;

  • Plentiful Binary and powerful software function;

  • Two groups of DC power supply, 110VDC/1.0A&220VDC/0.6A,no need to set and adjust by software(Optional);


Relates products of relay tester

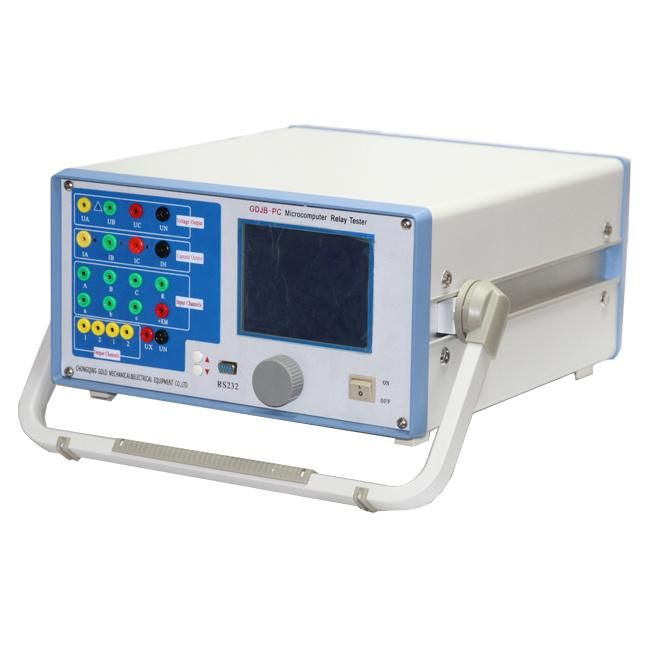

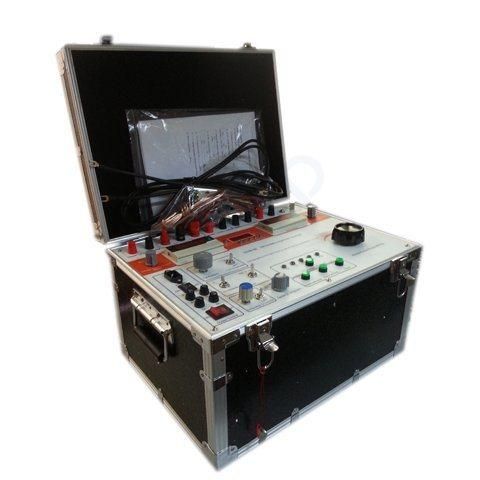

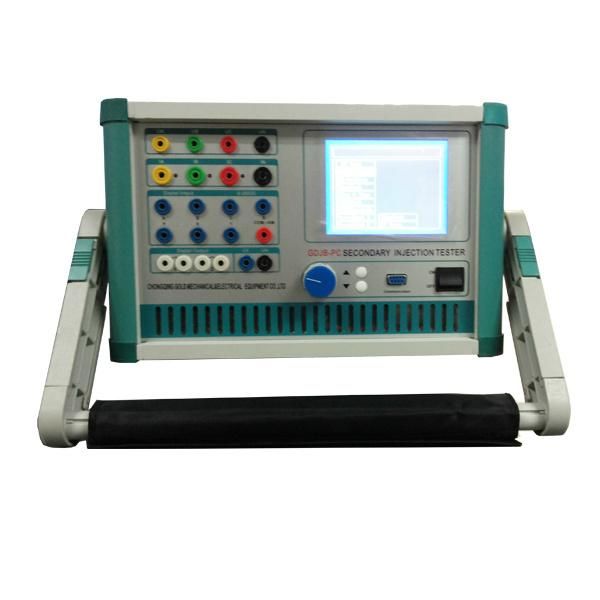

GDJB-III Single phase relay test set    6 Phase Secondary Injection Tester Six Phase Relay Test SetGDJB-PC Three phase relay test set     6 Phase Secondary Injection Tester Six Phase Relay Test SetGDJB-PC3 Three phase relay test set        6 Phase Secondary Injection Tester Six Phase Relay Test Set
