• Model NO.：STDGN-1
• Trademark：YF
• Origin：China
• HS Code：9031809090

Basic Info.

Model NO. STDGN-1 Trademark YF Origin China HS Code 9031809090

Product Description

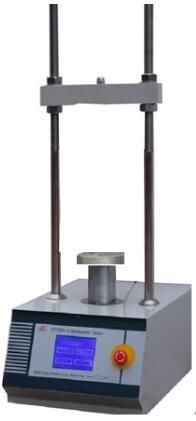

UNIFRAME series electromechanical universal testers
The new automatic MULTISPEED  is a versatile stand-alone machine; an ideal solution for road testing laboratories and generally for any test that requires displacement/speed control. The 50kN capacity and fully variable speed of 0.001 to 50 mm/min make it possible to perform not only CBR and Marshall tests, but also many other applications such as indirect tensile, quick undrained triaxial and unconfined/uniaxial soil tests.

1. speed:0.001-50mm(1mm,1.27mm,50mm are all available)

2. Pressure:0-100kN

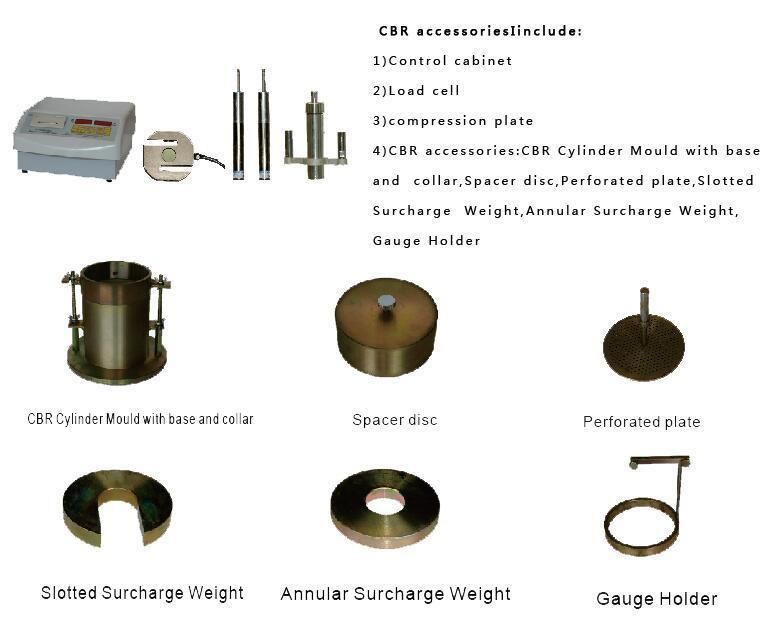

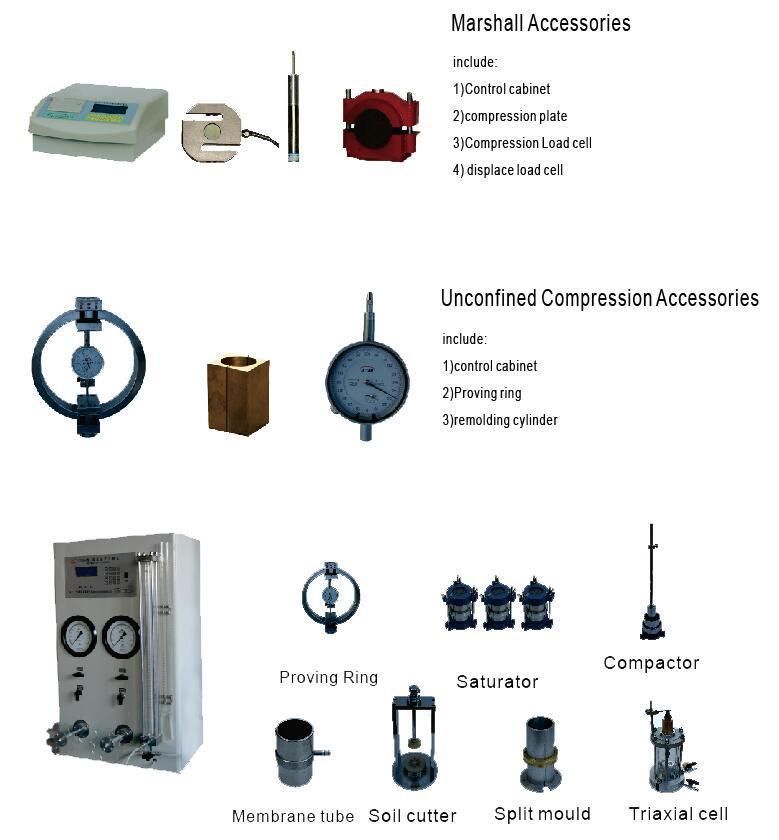

3. with corresponding accessories,it can do tests for triaxial, CBR, marshall,unconfined compression, uniaxial compression,bending and spilting test.





Max.load cap. (kN)	50
Min.testing speed (mm/min)	0.001
Max.testing speed (mm/min)	50
Type of control	Displacement/speed and load
