• Model NO.：PHW-2000H
• Mass Scope of Workpiece：2000kg
• Type：Balancing Machine
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC380V
• Certificate：CE, ISO, SGS, BV.
• Unbalance Reduction Ria：90%
• Delivery Time：25 Days
• Number of Packing：2 PCS
• MOQ：1 Set Rotor Dynamic Balancing Machine
• Color：Blue
• Usage：Auto Testing Machine
• Item：Dynamic Balancing Machine
• Power：Electronic
• Transport Package：Packed in Standard Export Wooden Case
• Specification：ISO9001: 2008 CE SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：9031100090
• Production Capacity：1000 Sets,Month
• Package size per unit product：2400.00cm * 2100.00cm * 1630.00cm
• Gross weight per unit product：1800.000kg

Technical data at a glancePHW-1000HPHW-2000HPHW-3000HPHW-5000Mass Scope of Workpiece(kg)1000200030005000Max Diameter of Workpiece(mm)Φ1600Φ1800Φ2100Φ2400Distance Between Two Support Bearings(mm)Min 60Min 60Min 60Min 320Journal Diameter Scope of Workpiece(mm)Φ25~120³⁾Φ25~120³⁾Φ25~120³⁾Φ40~380Max Distance between Driving Flange and Right Bearing Support (mm)1600190019002500Rotational Speed of the Main Axis(r/min)600,1095⁴⁾485,818⁴⁾133,225,396.
634,970⁴⁾192,325,571,
915,1400⁴⁾Motor Power (kw)4¹⁾7.5¹⁾7.5¹⁾15¹⁾Torque of Universal Joint Shaft(N·m)2503007001250Length of Bed (mm)2500300030004000Min Achievable Residual Unbalance Amount(emar)≤1g· mm/kg≤1g· mm/kg≤1g· mm/kg≤1g· mm/kg1) Frequency conversion
2) Can add to 75-180
3)Can add to 120~240
4)Stepless speed regulation

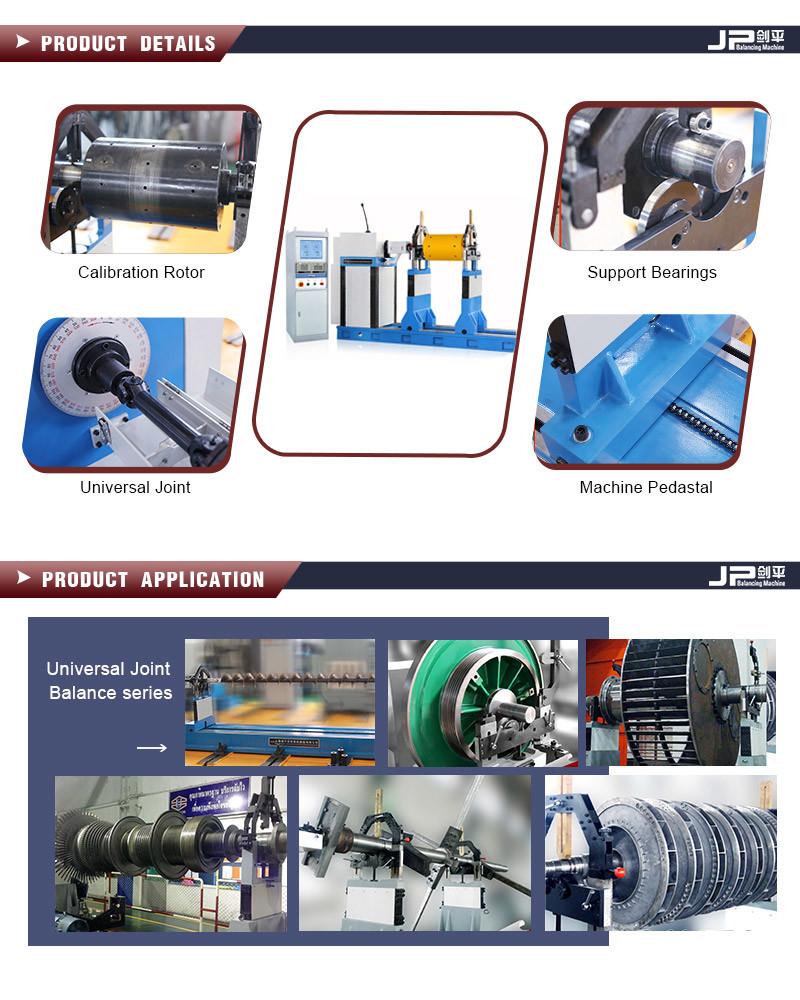

 Range of Application
This balancing machine is mainly used in checking the balance of rotatable bodies such as good-sized and medium-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by gear box universal coupling , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc
