Universal Tensile Testing Machine High Accuracy
GOLDEN TIME TECHNOLOGY DEVELOPMENT LIMITED- After-sales Service:Lifetime Maintenance
- Warranty:Lifetime Maintenance
- Max Diameter of Workpiece:1200mm
- Mass Scope of Workpiece:<900kg
- Type:Tensile Testing Machine
- Maxcapacity:10n to 200kn
Base Info
- Model NO.:GT-UTM
- Accuracy Grade:0.5
- Load Way:Electronic Load
- Loading Method:Static Load
- Display:Computer
- Control:Computer Control
- Weight:100-500Kg
- Power Source:AC220V
- Oil Cylinder Position:Under
- Transport Package:Wooden Package
- Specification:240kg
- Trademark:GT-TEST
- Origin:Beijing
- HS Code:9024800000
- Production Capacity:20
Description
Basic Info.
Model NO. GT-UTM Accuracy Grade 0.5 Load Way Electronic Load Loading Method Static Load Display Computer Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Transport Package Wooden Package Specification 240kg Trademark GT-TEST Origin Beijing HS Code 9024800000 Production Capacity 20Product Description
Universal Testing MachineStandards
- ISO 527
- ISO 6259
- ASTM D 638
- ISO 6040
- ISO 178
- ISO 9969

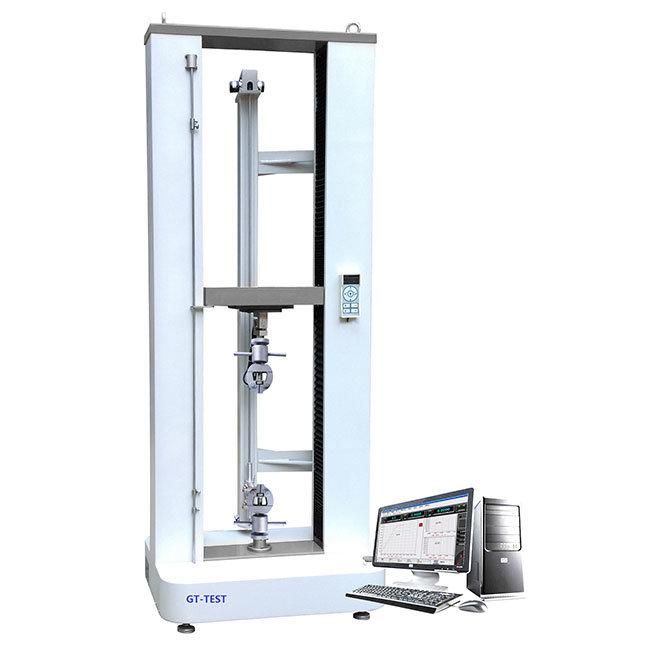

Universal Testing Machine is specially designed for testing applications in all areas, whether in quality control or research projects, e.g. metal wire, nylon, plastics, rubber, textile and clothes, packaging for tension, compression, flexure, peel, tear or others on customer's request, so they are ideal for performing complex tasks in the field of material and component testing.
The classic application is the tensile test. This involves subjecting a sample to an increasing tensile load until it breaks. The force-deflection diagram generated during this test provides information on the load-bearing capacity, elasticity and plastic deformation of the material sample.
Features
- Adapts double-column high rigid structure and seamless ball bearings.
- Test can be piecewise programmed by stress, strain or displacement rate closed-loop controlling method.
- High quality load sensor realizes intelligent and digital control, largely increase the sampling accuracy and stability.
- Self cleaning ball screws for fast, quiet testing with sealed for life lubricated end bearings; precise crosshead guidance system, smooth running.
- Cooperating with large deformation extensometer, the yield strain, breaking strain and strain at X% can be actually got.
- Modularization software includes almost all the mechanical property tests, may customized a new test module on customer's request.
Powerful Software functions
- Zeroing function will clear the initial stress of the specimen, acquiring a more accurate result.
- May plot Stress-Strain, Load-Displacement-Time, Stress-Time, Displacement-Time test curves.
- Embedded data analysis system will help the operator to analyze test data and contrast more test datum.
- Free upgrade software on line.
- Machine capacity: 10KN / 20KN / 30KN / 50KN
- Crosshead travel: 900mm
- Large deformation measuring range: 5~800mm
- Large deformation resolution: 0.0125mm
- Max. crossbeam speed range: 500mm/min
- Specimen width:400mm
- Power supply: 220VAC-15%~220VAC+10% 50Hz 1KW
- Main frame
- Application software
- Wedge tensile grip
- Extensometer for elongation test
- Desktop computer
- Compression grip
- Flexibility grip

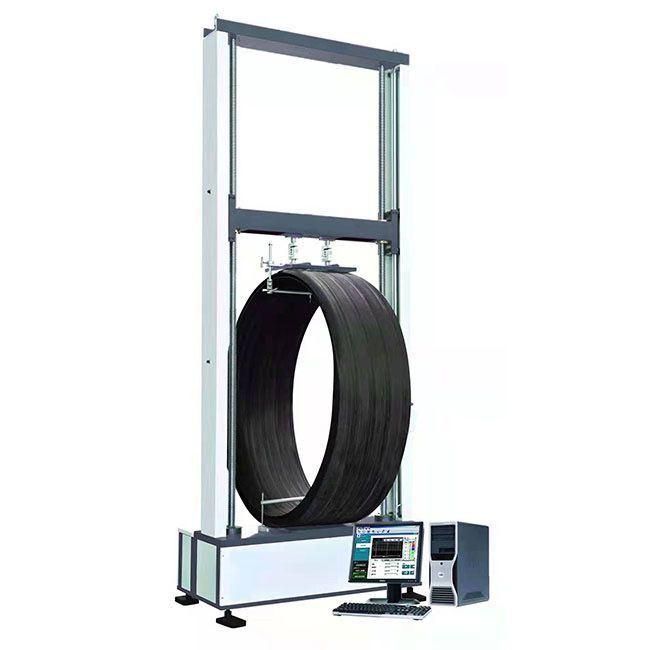

- Ring stiffness grip
- Others on customer's reques
