• Model NO.：KMHW-32
• Temp. Constancy：+,-0.5oc
• Humidity Constancy：+,-2.5%R.H.
• Temp. Uniformity：+,-2.0oc
• Door Size：Single Wing:W80*H180;Double Wing:W160*H180
• Controller：Touch Screen Controller
• Operation Mode：Setting, Program
• Standard Accessories：No Fuse Breaker, Over Pressure, Over Heat and Over
• Transport Package：Strong Plywood Case, Meet International Standards
• Specification：Standard and Customized
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：1000 Sets,Year

SPECIFICATIONSNote: We reserve the right to change specifications without prior noticeModelKMHW-468131721Volume(m³)912.916.816.835.213.3Interior DimensionsW(mm)210030003900300039004800H(mm)210021002100210021002100D(mm)205020502050430043004300Exterior DimensionsW(mm)325041605050505050505950H(mm)235023502350235023502350D(mm)225022502250225045004500Safety Devices(standard)No fuse breaker, over pressureover heat and over current protection for compressor,over-temperature protection, overload protection for the blower, dry heat protectionStandard accessoriesSight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicatorControl System Balanced Temperature & Humidity Control SystemRefrigeration systemWater CooledSemi-hermetic compressor, single-stage or cascade refrigeration system,CFC free refrigerant(HFC-507 and HFC-23)ControllerPanel7-inch LCD Touch panel, Chinese or English display selectableOperation modelProgram or fixpoint runningMemory capacity120 programs,1200steps, all repeat 999 cycles, part repeat 99 cyclesAccuracyTemp.:0.1% of F.S±1 digit  Humidity:0.1% of F.S±1 digitInputTemp.:pt-100, Humidity:pt-100 or ~5V DCVComm.port RS-232 or RS-485 (Software is an option)Temp. rangeMaximum:80ºC,120ºC;Minimum:-60ºC,-50ºC,-40ºC,-30ºC,-20ºC,-10ºC,0ºCHumidity Range10%,20%,30%~95%Temp. constancy±0.5ºCHumidity constancy±2.5%R.HTemp. uniformity±2.0ºCHumidity uniformity±5.0%R.HAmbient Temp.+5ºC~+35ºCWiring methodAC 380±10%50Hz,3 phase 4 wires +Ground WiresHeat uptime +20ºC~+80ºC, Within 60 minPull downtime +20ºC~-55ºC -40ºC-20ºC-10ºC ,Within 120 or 90 or 60  minInterior materialStainless Steel Plate(SUS 304)Exterior materialBaked Painting Steel Or Stainless steel(SUS304)Insulation materialRigid polyurethane foamDoor size (mm)Single wing:W800*H1800;Double wing:W1600*H1800;Note:
1. We reserve the right to change specifications without prior notice
2.Customized sizes and configurations available

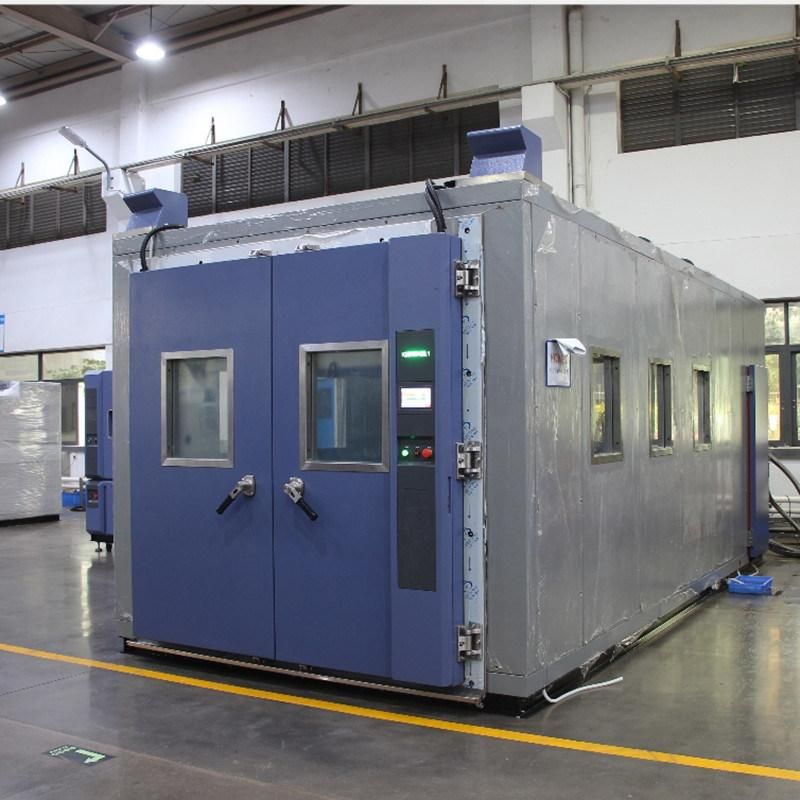

Most popular walk-in type



Standard sub-assemblies for quick delivery and low cost

High quality panels manufactured to KOMEG standards.

Standard muti-layer heated window in door(s)

Operation allowable to 120°C(75°C in humidity mode )

Temperature change rates to 10°C/m.

Services:

1, Pre-sales service

Before the purchase, our company will provide customers with detailed product-related information, and welcome you to visit the company and check the goods.

2, After-sales service

After the completion of the transaction, our company will be arranged different after-sales service according to the ease of the goods, and even arrange work engineers on-site service.

3, the Warranty period

Our product warranty is 12 months and we are committed to responding within 48 hours of the problem, providing a solution.
