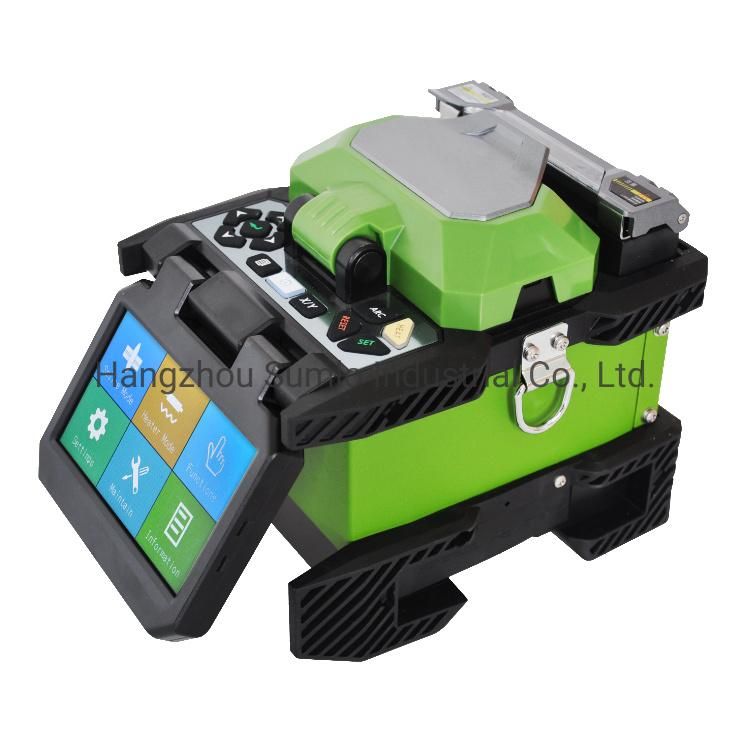

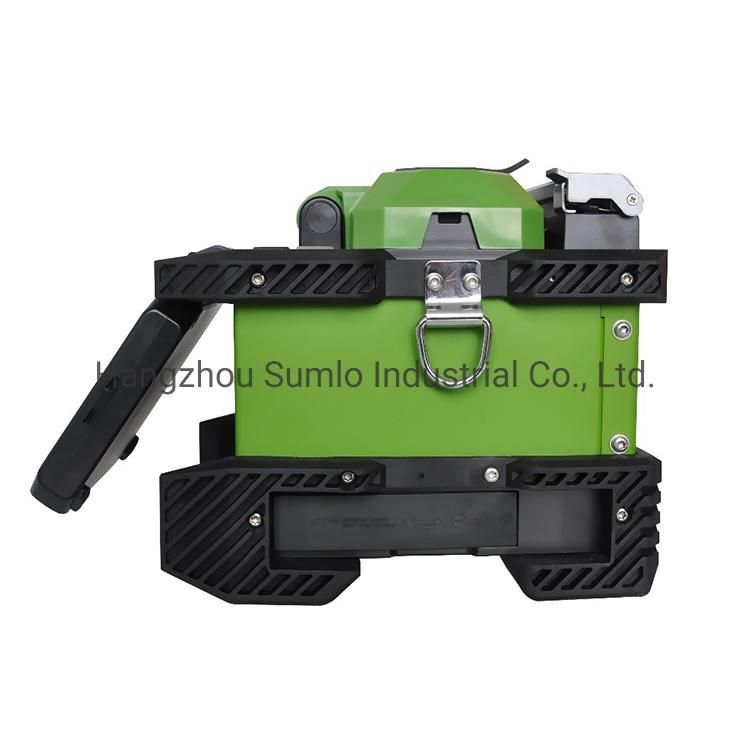

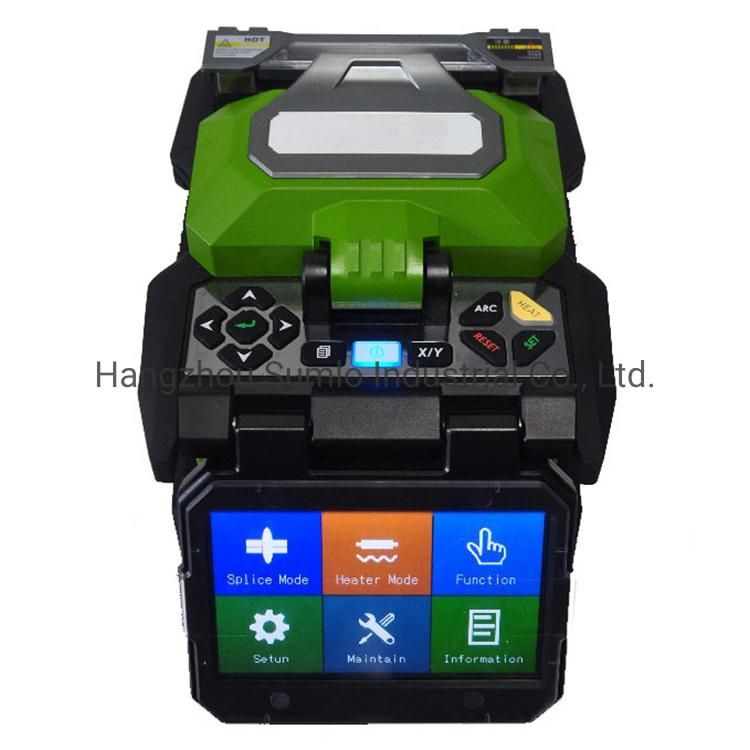

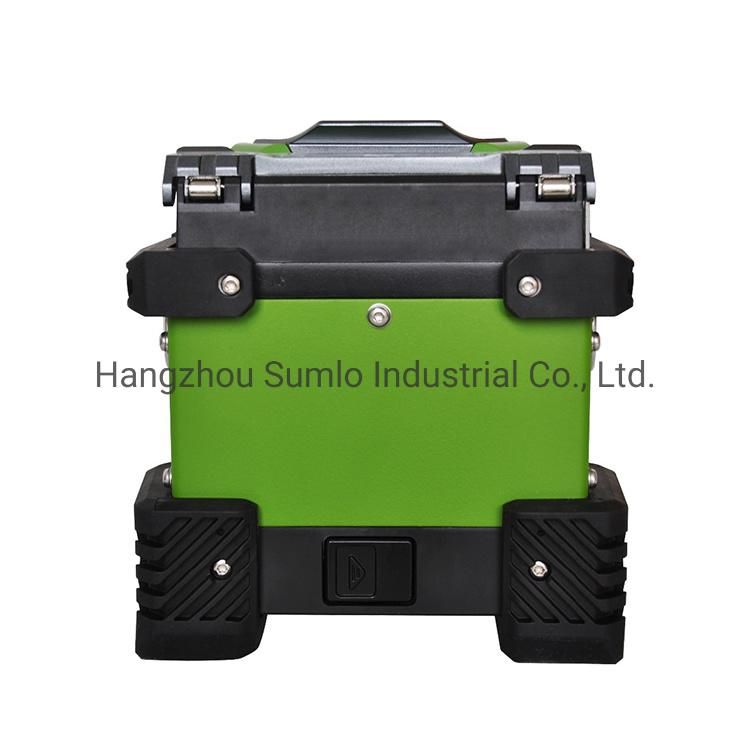

Optical Fiber Fusion Splicer FTTH Fiber Test Instrument
Hangzhou Sumlo Industrial Co., Ltd.- Transport Package：Cartons
- Specification：120mm (W) x 130mm (H) x 154mm (D)
- Trademark：ZHIYI
- Origin：China
Base Info
- Model NO.：ZY4106
- HS Code：85176229
Description
Descriptions:
Obtaining 16 patents of invention and 5 technical innovations, a brand-new product-4106S Optical Fiber Fusion Splicer is launched, thanks to 5 years of painstaking research of 28 engineers.ZY4106S implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively. Compared with ZY4106, our start product, ZY4106s lowers the size by 38%, the weight by 52%, the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80% and the reliability (MTBF) y 200%. You can get unprecedented fusion splicing experience.
Technical data:
| Model | ZY4106 |
| Alignment method | Precise core alignment and cladding alignment |
| Applicable fibers | Any common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651-653, ITU-TG.655 and ITU-TG.657. |
| Optical fiber diameter | Cladding: 80-150p m, coating layer: 0.1-3mm |
| Cutting length | 5-16mm (coated optical fiber diameter<250p m) 10mm (coated optical fiber diameter: 0.25-3mm) |
| Fusion splicing consumption (typical value) | O.02dB (SMF) ; O.01dB (MMF) ; O.04dB (DSF) ; |
| Return loss | (NZDSF) Better than 60dB |
| Fusion splicing time (typical value) | 7s |
| Heating time (typical value | 18s |
| Pulling force test | 1.96-2.25N |
| Thermal shrinkage tube | 60mm, 40mm and a series of thermal shrinkage tubes |
| Graphical display | High-performance 4.3 inch LCD |
| Magnification time | 320 times/88 times |
| Fusion splicing record | 10000 groups |
| Battery capacity Battery service life | IV, 6400mAh, typical value of fusion splicing and thermal cycle is 220 times Cycle charging times reach 300-500, can be replaced by customers |
| Electrode service life | Typical value is 4000 times, can be replaced by customers |
| Construction lighting | Built-in lights with high-brightness and wide lighting area |
| Working environment | Temp:-10~50ºC;hum: 0~95%RH height above sea level:0 6000m |
| Operation interfaces | GUI graphical operation interfaces |
| External power | ACIOO 240V, 60Hz, O ISA; DC: DCIO |
| External port | USB SD |
| Dimensions | 120mm (W) x 130mm (H) x 154mm (D) (without rubber anti-vibration pad) |
| Weight | 1.59kg (host engine) , 0.37kg (battery) |
