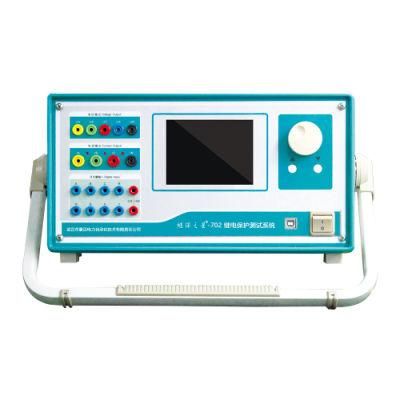

702 Relay Protection Test Set Substation Secondary Current Injector
Haomai Electric Power Automation Co., Ltd.- After-sales Service：7*24 Hours Online Service
- Warranty：1 Years
- Series No：Hme-702
- Ouput Channels：4 Voltage, 3 Current
- AC Current Ouput：0~40A
- AC Voltage Output：0..120V
Base Info
- Model NO.：HME 702
- DC Current Ouput：0..10A
- DC Voltage Output：0..160V
- Test Object：Protective Relay
- Applications：Differential Protection, Line Protection and etc.
- Power Supply：110V and 220 AC
- Power Freqency：50Hz and 60Hz
- Transport Package：Standard Box
- Specification：400,300,180mm
- Trademark：HME; ODM available
- Origin：China
- HS Code：9030820000
- Production Capacity：400set,Month
Description
Overview
Product Description
Setting Range
3-Phase AC(L-N)
3x0…40A
1-Phase AC(LL-LN)
1x0…120A
DC(L-N)
3x…±10A
3-Phase AC(L-N)
3x420VA At 40A
Power
1-Phase AC(LL-LN)
1x900VA At 120A
DC(L-N)
3x120VA At 10A
Accuracy
AC: ≤0.2%
DC: ≤0.5%
Company Profile
Certifications
Our Advantages
