• Model NO.：KOV-500
• Heating Rate：Faster Than 5c,Min
• Temp. Constancy：±1.0 ºC
• Temp. Uniformity：±2.0 ºC
• Interior Material：Stainless Steel Plate
• Insulation Material：Glass Wool
• Cable Holes：Diameter of 50mm, 100mm, 150mm,
• Optional：Single, Double, Four or Five Layers
• Transport Package：Strong Plywood Case, Meet International Standard
• Specification：Standard and Customized
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：1000 Sets Per Yesr

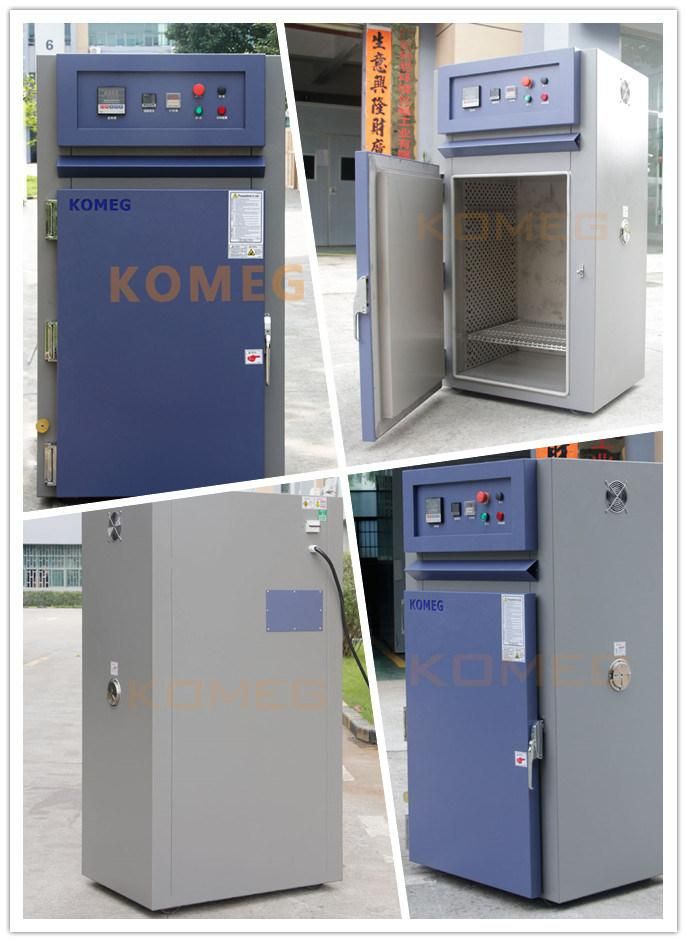

Specifications of drying ovenModelKOV-50KOV-100KOV-200KOV-290KOV-500Interior size (W*H*D)mm400*350*350450*500*450600*600*600600*950*500800*1050*600Exterior size (W*H*D)mm1010*650*7601110*800*11001260*900*1100870*1590*6401160*1760*880Capacity(KVA)3.53.54.54.56PowerAC220V±10% 1Φ 50Hz/60HzAC 380V±10% 3Φ4wire 50Hz/60HzTemp. range50 ºC~ 200 ºC( 300 ºC)Temp. constancy±1.0 ºCTemp. uniformity±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC)Heat uptime50 ºC to 200 ºC within 50 minInterior materialStainless steel plateExterior materialPainted Stainless steel plateInsulation materialGlass woolSafety devicesNo fuse breaker, over temp protection, ceramic fuseAccessoriesRecorder, insolating layerNote:
1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available
Packaging

Each set protected with resin fiber and PP film, then put into a Strong wooden case with operation manual and video inside.

After-sale service

If you face any problems in the future during the testing process we promise we will give you a reply within 48 hours and the solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by the customer.
