• Model NO.：ZJ-50A Torque Speed Sensor
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：4 Kg
• Power Source：AC220V
• Oil Cylinder Position：No Cylinder
• Torque Range：50 N.M
• Max Speed：6000 Rpm
• Overall Dimension：114 X 188 X 78 mm
• Transport Package：Carton Box
• Specification：ZJ-50A
• Trademark：Lanmec
• Origin：China
• HS Code：9031809090
• Production Capacity：10000 Sets , Years

ModelRange
N•mMax Speed
(r/min)Overall dimensionShaft couping sizeBase support sizeWeight(kg)HLDdb(p7)XnTL1L2L3L4L5L6H1d1hZJ-5A5600011418878186X120.53135729075100558123.8ZJ-10A10600011418878186X120.53135729075100558123.8ZJ-20A20600011418878186X120.53135729075100558123.8ZJ-30A30600011418878186X120.53135729075100558123.8ZJ-50A50600011418878186X120.53135729075100558123.8ZJ-100A100600011418878186X120.53135729075100558123.8ZJ-200A200500012520992288X1314136.5729075100608125.1ZJ-500A5004000135238963810X2225537729075100658126.5ZJ-1000A100030001432701064814X227.57040.56990781206812159ZJ-2000A200030001432701064814X227.57040.56990781206812159.5ZJ-5000A500020001873471447520X242105346910015618090121523ZJ-10000A1000020002143891589828X25511836.580110170200110141535ZJ-20KA20K180022542016810528X258.51254188125180205115141556ZJ-30KA30K150025842020612532X269.51254188125200230136141556ZJ-40KA40K150030148024015040X2841504590125190250153182095ZJ-50KA50K150030148024015040X2841504590125190250153182095ZJ-100KA100K120033156028018045X210018055901302302901681820160ZJ-150KA150K100042090035023556X2129.5129.5501802402502902202225420ZJ-200KA200K80044690038025556X2139.5139.5481802402503002402225480ZJ-300KA300K80048090041629570X2161.5161.5481802402683102502225580

ZJ torque speed sensor (dynamic) adopts strain gauge measurement technique.The electrical signal of elastic shaft under torsion can be measured by providing power for the strain gauge bridge. After amplified,and voltage/frequency conversion, the strain signal is converted into the frequency signal directly proportional to torsional strain. Product features: 1. Torque measurement;energy and signal non-contact transmission; output signal digitized . 2. High testing precision, high stability and anti-inter ference ability.  3.Repeating zero setting is not required continuous  4. Both static torque and dynamic torque can be measured.  5.an be used independently without secondary instrument, output signal can directly use by PLC or PC .  6.Can be customized according to customer requirements. Main Function and Performance Index: Torque indication error: <± 0.2 % F · S    Sensitivity: 1±0.2 mv / V               Nonlinear: ≤±0.2 % F·S     Repeatability: ≤±0.2% F·S       Lag: ≤0.2 % F·S        Zero drift (24 hours) : ≤0.1 % F·S    Output impedance: 1KΩ ±3Ω            Insulation resistance: >500MΩ Static overload: 150 %     Breaking load: 200 %   Power supply voltage:DC±15V±5% ,DC 24V( optional) Speed output signal: 60-2000 pulse / turn(optional) Zero torque frequency output:10KHZ        Positive torque full scale frequency output :15KHZ     Reverse torque full scale frequency output :5KHZ       Signal duty ratio: (50±10)%   Power consumption of the sensor: 4W Temperature when use: -20 ~ 70ºC  Relative humidity: ≤90%RH

Related Products

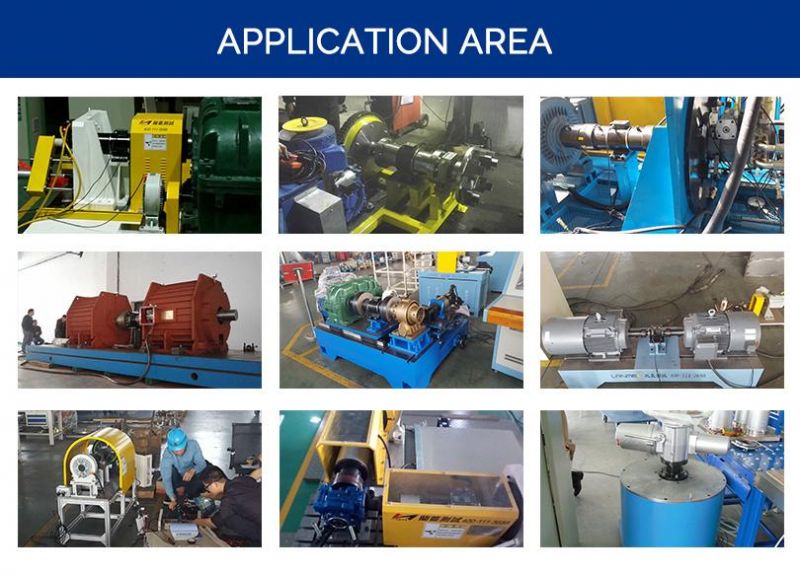

Main application:








Company Information:

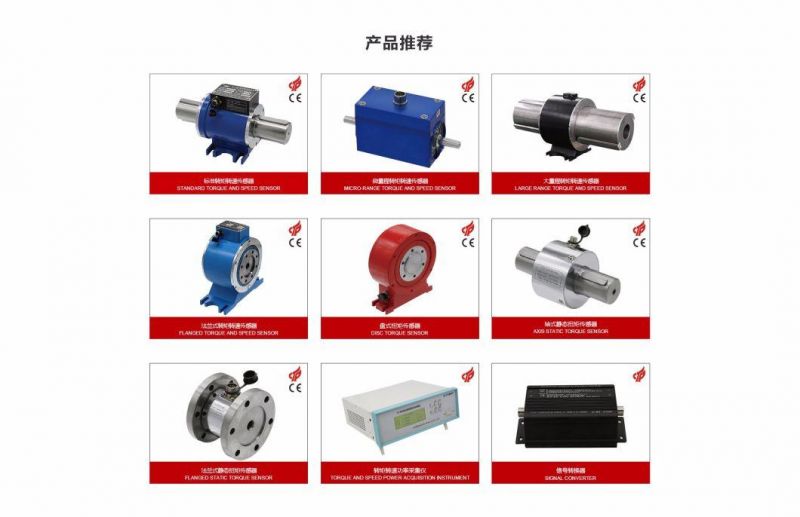

Product Line:

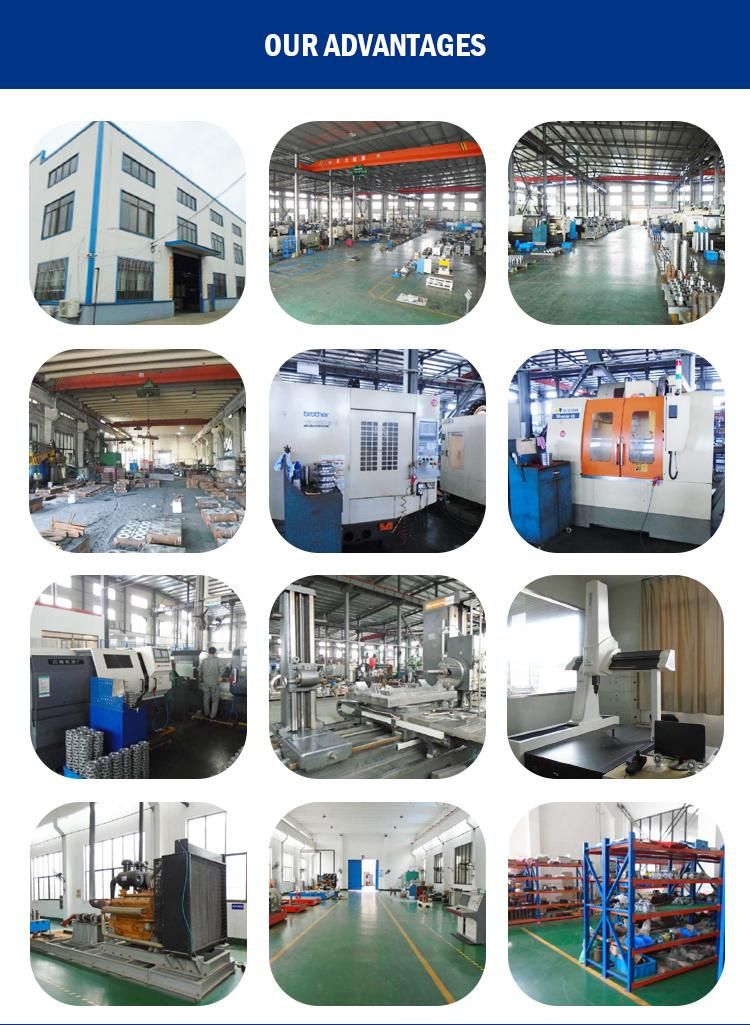

Advantages:
