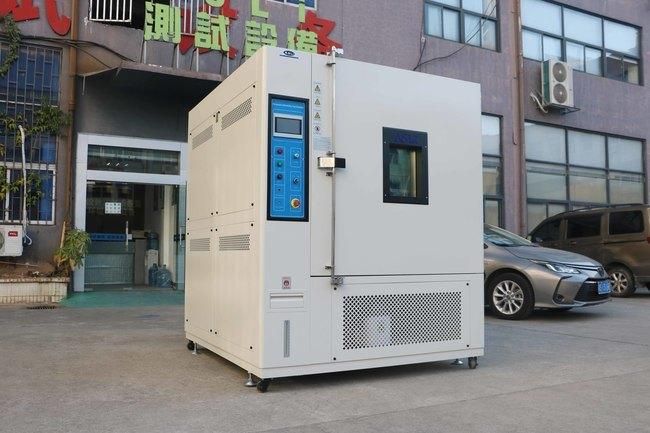

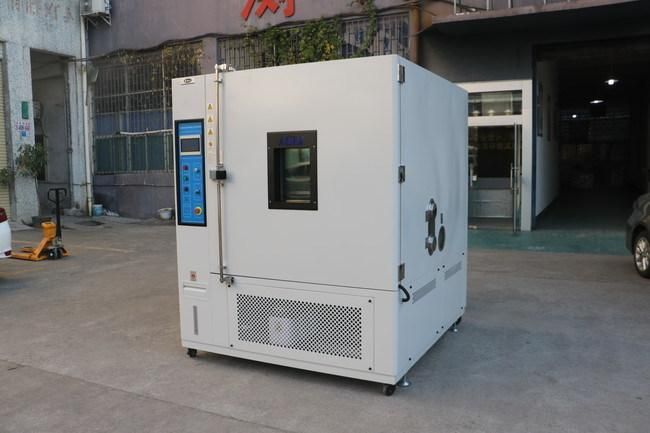

Lab Environmental Test High and Low Temperature Control Test Equipment
Ai Si Li (China) Test Equipment Co., Limited- Certification:CE, TUV, ISO
- Warranty:1 Year
- Temperature Range:-70~+150 Degree C
- Humidity Range:20%~98%R.H.
- Control Accuracy:+,-0.5degree C
- Indication Resolution:0.1degree C; 0.1% R.H
Base Info
- Model NO.:HL -408-C
- Uniformity:+,-2.0degree C
- Temp. Rising Speed:0.1~3.0degree C,Min
- Temp.Falling Speed:0.1~1.5degree C,Min
- Compressor:French Tecumseh Brand
- Transport Package:Wooden Case
- Specification:CE Certified
- Trademark:ASLi
- Origin:Guangdong, China
- HS Code:85141090
- Production Capacity:100 Sets,Month
Description
HL -150(A~F)HL -225(A~F) HL -408(A~F) Internal Dimensions
W*H*D (mm) 400*500*400 500*600*500 600*750*500 600*850*800 External Dimensions
W*H*D (mm) 950*1650*950 1050*1750*1050 1200*1900*1150 1200*1950*1350 Temperature Range Low Temperature(A:25degree C B:0degree C C:-20degree C D:-40degree C
E:-60degree C F:-70degree C )
High Temperature 150degree C Analytic Accuracy/
Distribution Uniformity
of Temperature 0.1degree C /±2.0degree C Control Accuracy of
Temperature ±0.5degree C Temperature Rising/
Falling Velocity Temperature rising approx. 0.1~3.0degree C /min ; temperature falling approx.
0.1~1.5degree C /min; ( The Falling Speed Rate Min.1.5degree C per minute
is a special optional condition) Internal and External
Material Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. Insulation Material Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials Cooling System Wind cooled or water cooled,single segment compressor for -40degree C , double segment compressor for -70degree C Protection Devices Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, Over-humidity and over-temperature protection switch, fuses, fault warning system Optional Accessories Inner door with operation hole(Optional), Recorder(optional),Dehumidifier Compressor French Tecumseh Brand,Germany Bizer Brand Power AC 220V, 1Phase 3 Lines,50/60HZ ; AC 380V ,3 Phase 5 Lines,50/60HZ Appro*. Weight (Kg) 150 180 250 320
Lab Environmental Test Machine Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.

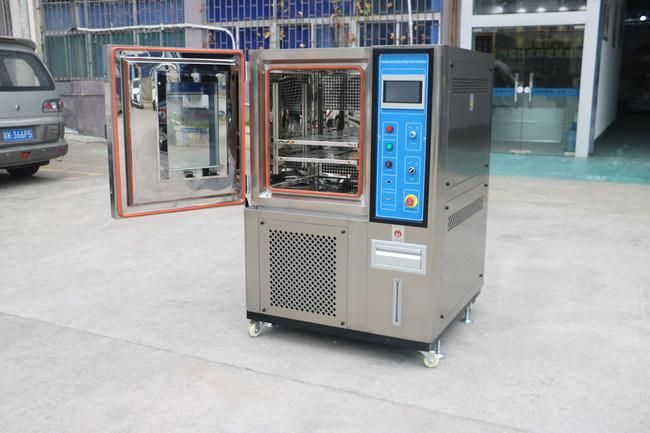

2. Rectangular double-paned viewing window for observation of sample under test, with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen is used for the control unit, capable of displaying set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing function
8. Quick or ramp rates control of temperature and humidity.
9. Casters are provided for ease of mobility, with strong positioning screws.
Saftey device:
1. With no-fuse protection switch
2. Control system with phase sequence protection and low voltage electrical protection.
3. With over-heat protection switch.
4. Over load protection device for refrigeration compressor.
5. Refrigeration compressor high and low voltage protection switch.
6. Refrigeration compressor over oil pressure protection.
7. Lack of Anti-phase protection system.
8. Overload protection for circulation fan motor.
