Laptop Battery Drop Testing Machine According to IEC62133-2012
GUANGDONG BELL EXPERIMENT EQUIPMENT CO., LTD.- After-sales Service：24 Hours Online
- Warranty：1 Year
- Mass Scope of Workpiece：<900kg
- Type：Drop Testing Machine
- Loading Method：Dynamic Load
- Display：Digital
Base Info
- Model NO.：BE-8108
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Product Name：Battery Dropping Test Machine
- Testing Method：Free Fall
- Test Loading：0~5kg
- Specimen Max. Dimension：W200 X D200 X H200mm
- Machine Dimension：W700 X D900 X H1800mm
- Motor Power：90W
- Internal Material：SUS 304# Stainless Steel
- External Material：1.5mm Thickness Cold Plate
- Falling Method：Pneumatic Drop
- Lifting Method：Electric
- Power Supply：220V 50Hz
- Safety Device：Fully Enclosed Explosion-Proof Device
- Transport Package：Each Set Protected with Resin Fiber and PP Film, T
- Specification：Test Space200x200x200(customizable)
- Trademark：DGBELL
- Origin：Guangdong China
- HS Code：9031809090
- Production Capacity：100set ,Month
Description
| Model | BE-8108 |
|---|---|
| Drop Height | 300~1500mm (Adjustable) |
| Testing Method | Free fall |
| Test Loading | 0~5kg |
| Specimen Max. Dimension | W200 x D200 x H200mm |
| Machine Dimension | W700 X D900 X H1800mm |
| Motor Power | 90W |
| Control Mode | PLC touch screen (7-inch touch screen) + Remote control |
| Internal Material | SUS 304# Stainless steel |
| External Material | 1.5mm thickness Cold plate |
| Falling Method | Pneumatic drop |
| Lifting Method | Electric |
| Power Supply | 220V 50Hz |
| Safety device | Fully enclosed explosion-proof device |
| Pressure | >0.3Mpa |
| Drop Panel Size | W600 x D700 x H10mm (solid steel), hardwood, cement board (optional) |
| Observation Window | 390 X 360mm (20mm thickness tempered explosion-proof glass) |
| Data Output | Test data can be output by USB flash disk directly . |
| Safety Protection | Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch |
| Options | Temperature acquisition system, voltage acquisition system, video monitoring system |

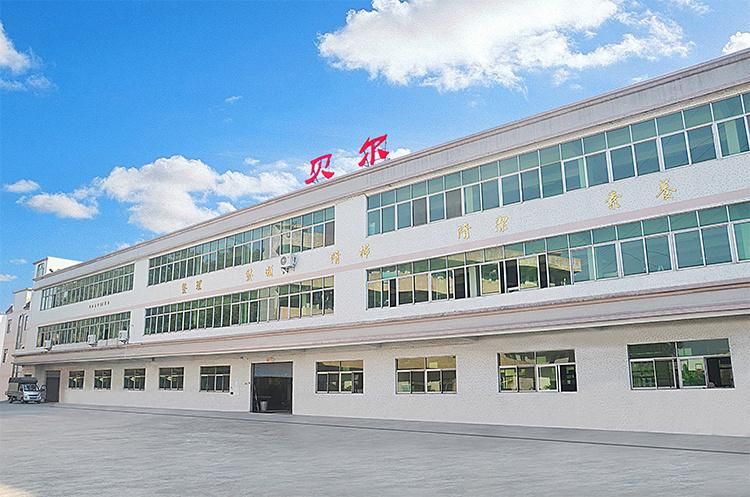

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
