• Model NO.：GT-TANK
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：>2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Transport Package：Wooden Package
• Specification：stainless steel 316 and 304
• Trademark：GT-TEST
• Origin：Beijing
• HS Code：9024800000
• Production Capacity：20

Basic Info.

Model NO. GT-TANK Accuracy Grade 0.5 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight >2000Kg Power Source AC380V Oil Cylinder Position Under Transport Package Wooden Package Specification stainless steel 316 and 304 Trademark GT-TEST Origin Beijing HS Code 9024800000 Production Capacity 20

Product Description

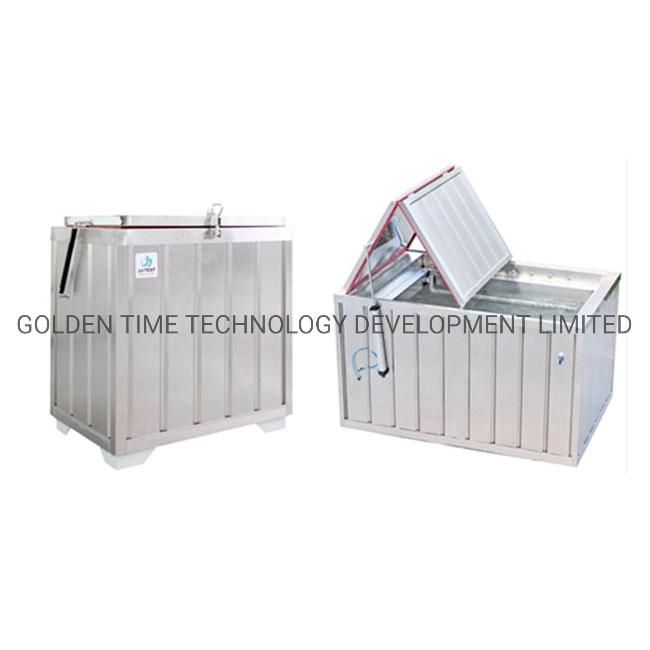

Test Baths for Pressure Test­ing

Stan­dards

• ISO 1167
• ASTM D 1598
• ASTM D 1599

Features

1. The cir­cu­la­tion system guarantees high accuracy and uniform temperature distribution.
2. With the excellent thermal insulation of the basic container, even when the water temperature rises up to 95 ºC the outer lid is still at ambient temperature, which helps to enhance the security and save more than 70% of power consumption.
3. Special lid seals keep steam and heat in the test bath and protect against injuries.
4. Quick-release couplings and ergonomic arrangement of the manifolds enables easy connection of the test samples.
5. Structural bracing frame provides excellent supporting capacity and anti-deforming capacity
6. Lid open: pneumatic control, opening degree can be adjusted on customer's requirement.
7. Automatic water level control, if the water level is lower than preset value, it will be re-established automatically by introducing water in a way that the preset temperature will not fluctuate too much (fluctuation is less than 0.2ºC).
8. Supplying a wide selection of test bath sizes with 3 different lid systems.

Technical specifications
1. Temperature resolution    ±0.1ºC
2. Test temperature: 15ºC to 95ºC
3. Temperature accuracy:  ±0.5ºC
4. Number of test stations: 1 to 50
5. Internal dimension:  depend on the max. pipe diameter
