• Model NO.：FTWS-809
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Measuring Range：0ug ~ 200mg
• Resolution：0.1ug
• Electrolytic Current Control：0~400mA Automatic Control
• Largest Power：<40W
• Net Weight：5.5 Kgs
• Certificate：Ce, ISO, IEC
• Delivery Time：7 Days
• Transport Package：in Standard Exportation Plywood Case
• Specification：350*300*165 mm
• Trademark：FUOOTECH
• Origin：Chongqing, China
• HS Code：9027809900
• Production Capacity：3000 Sets,Month

Basic Info.

Model NO. FTWS-809 Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Measuring Range 0ug ~ 200mg Resolution 0.1ug Electrolytic Current Control 0~400mA Automatic Control Largest Power <40W Net Weight 5.5 Kgs Certificate Ce, ISO, IEC Delivery Time 7 Days Transport Package in Standard Exportation Plywood Case Specification 350*300*165 mm Trademark FUOOTECH Origin Chongqing, China HS Code 9027809900 Production Capacity 3000 Sets/Month

Product Description

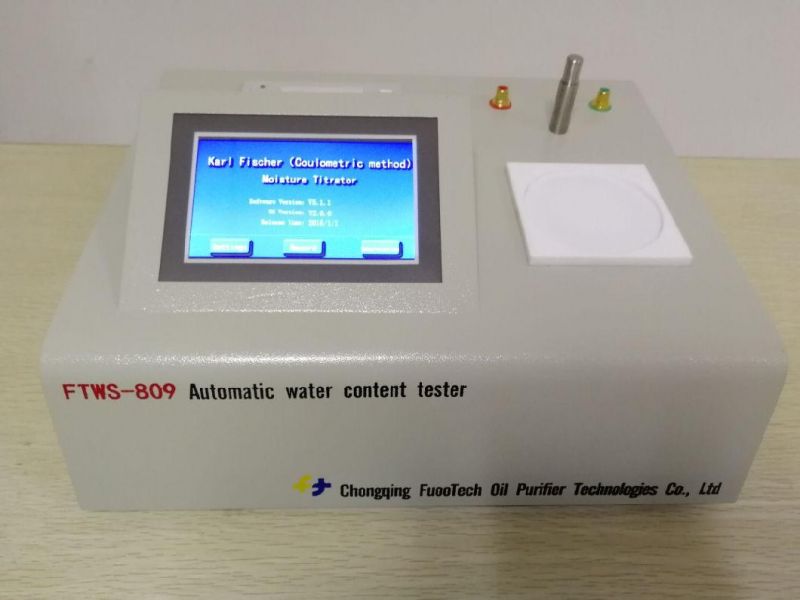

Series FTWS-809 Water Content Tester (Coulometric Karl Fischer Titrators)
Brief Introduction
Karl Fischer Coulomb titration is the most reliable method to detect trace moisture for different substances, which was utilized successfully by FTWS-809 trace moisture titrator.  It works more reliably and conveniently by using the most advanced control circuit and 32 bit embedded microcontroller processor as the master control core and utilizing embedded mini operating system.
 Due to Fast analyzing speed, simple operation, high precision and strong automatism, the trace moisture titrator has been widely used in the industry of petroleum, chemical, power, railway, pesticide, medicine and environmental protection.

Features:

1. Utilizing 32 bit embedded microcontroller processor as the master control core and embedded mini operating system.
2. Automatically test the oil sample, analyze and display results, and calculate the average value of several test times.
3. Automatically calculates and prints the following contents after setting: μg, ppm, %, mg/L, sample number, testing date, time etc…
4. Four calculation formulas are included, which can meet the different requirement of customer.
5. Miniature thermal printer with time record make printing and searching more conveniently.

Technical Specification:
1. Titration method:Coulometric titration(Coulomb analysis)
2. Display:Color LCD touch screen
3. Electrolytic current control:0~400mA automatic control
4. Measurement scope:0ug~200mg
5. Sensitive valve:0.1µg H2O
6. Accuracy:10µg~1000µg:     ±3µg
                More than 1mg:     not greater than 0.3%
7. Power supply:AC 220V ±10%,50Hz
8. Power:< 40W
9. Memory: Data storage 999 groups of results
