• Model NO.：PHLD-42
• Mass Scope of Workpiece：42 Kg
• Type：Balancing Machine
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Certificate：CE, ISO, SGS, BV.
• Unbalance Reduction Ria：90%
• Delivery Time：20 Days
• Number of Packing：1 PCS
• MOQ：1 Set Rotor Dynamic Balancing Machine
• Color：Blue
• Usage：Auto Testing Machine
• Item：Dynamic Balancing Machine
• Power：Electronic
• Transport Package：Packed in Standard Export Wooden Case
• Specification：ISO9001: 2008 CE SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：9031100090
• Production Capacity：1000 Sets,Month
• Package size per unit product：160.00cm * 160.00cm * 180.00cm
• Gross weight per unit product：289.000kg

Technical data at a glancePHLD-42PHLD-65PHLD-100PHLD-150QPHLD-200Max Mass of Workpiece (kg)4265100150200Max Diameter of Workpiece (mm)510¹⁾800²⁾510¹⁾800²⁾600¹⁾1000²⁾600600¹⁾1000²⁾Height of workpiece(mm)160160200300200Spindle speed(r/min)800700~600~500~600Motor power(kw)1.52.23³⁾3³⁾4³⁾Min Achievable Residual Unbalance Amount (emar)3g · mm/kg3g · mm/kg5g · mm/kg5g · mm/kg5g · mm/kg1) With hood
2) Without hood3) Frequency conversion
 Range of Application

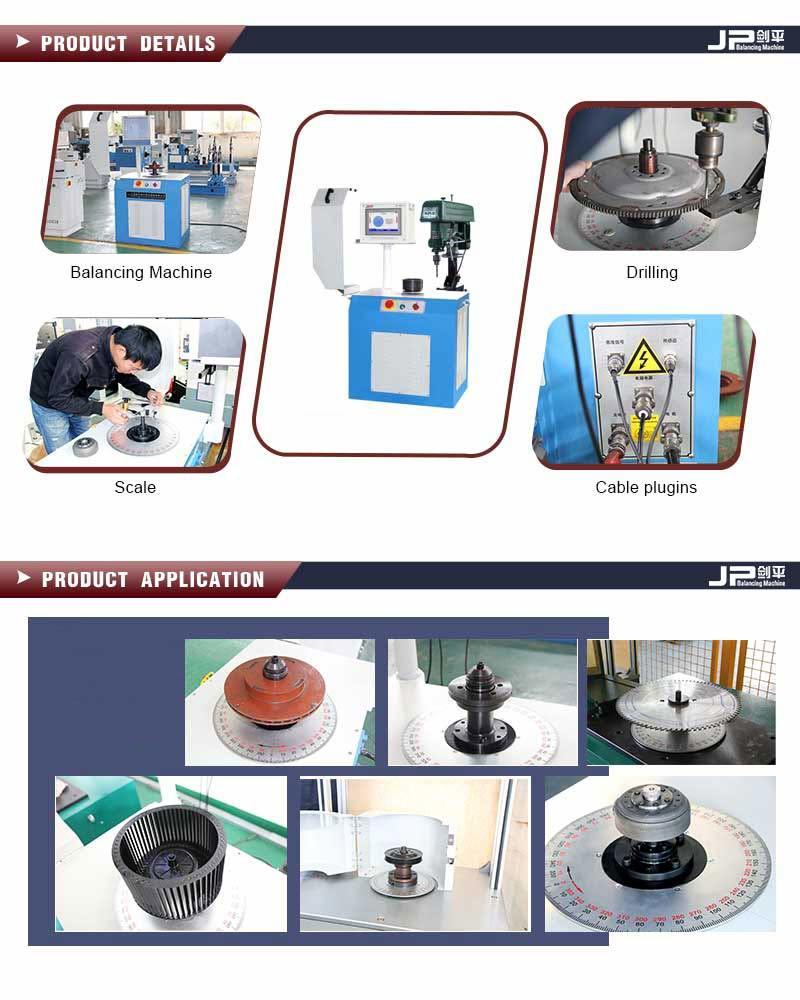

The balancing machine is a new and widely-used device which has been available and developed in recent years. It is mainly applied to balance all kinds of discoid parts, such as fan blade, brake disk,brake drum.saw blade.clutch,belt pulley,chuck,pump impeller,flywheel,grinding wheel,range hood fan,brake, torque converter,tool etc .High speed and precision are advanages of this balancing machine.

According to user's requirement,The machine can install de-weight device

Special Features
The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments
