Manufacturer Price Hv Test Set AC Variable Resonance High Voltage Test Set 20Hz-300Hz

Wuhan Goldhome Hipot Electrical Co., Ltd.
  • Type：Universal Testing Machine
  • Accuracy Grade：RMS 1.5
  • Display：Touch Screen
  • Power Source：220V,380V,10 %Single Phase, 50Hz
  • Transport Package：Wooden Box with Foam Inside
  • Trademark：GDHM

Base Info

  • Model NO.：HMCXZ
  • Origin：Hubei, China(Mainland)

Description

Configuration

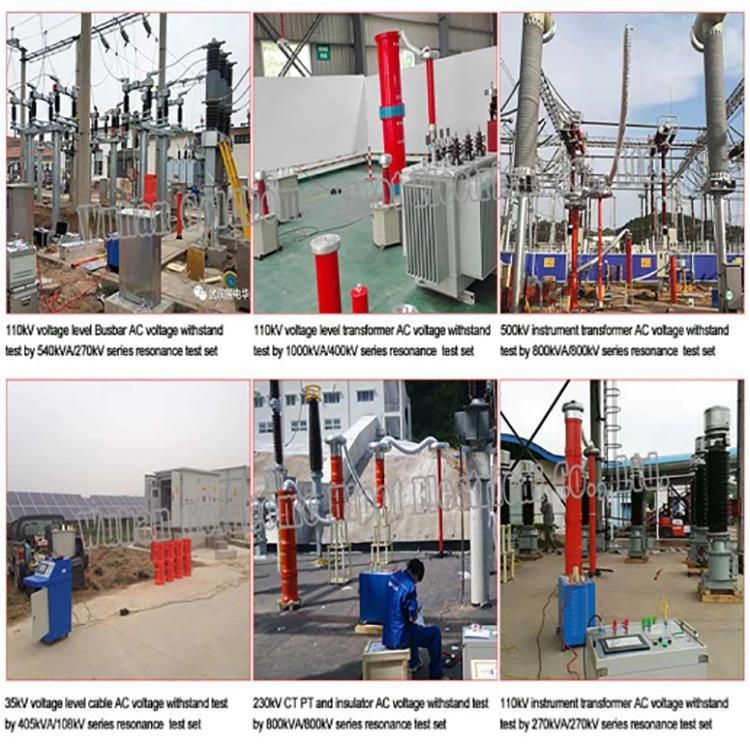

DUTReactor
33.75kVA/27kV  4unitsTransformer output35kV/300mm2 Cable(Test voltage:52KV)Length 1000m  2 Reactors in parallel and 2 Reactors in series3kV10kV/500mm2 cable
(Test voltage:22KV)Length 2000m4 Reactors in parallel1.5kV10KVTurbogenerator
(Test voltage:20KV)50MW4 Reactors in parallel1.5KV10 Generator(Test voltage:20KV)4500KW2 Reactors in series5kV35KV Power transformer(test voltage:76KV)20000KVA4 Reactors in series5KV35KV Power system (Test voltage:95KV)
 GIS,Tranformer,
Insulators.. 4 Reactors in series5KVManufacturer Price Hv Test Set AC Variable Resonance High Voltage Test Set 20Hz-300HzManufacturer Price Hv Test Set AC Variable Resonance High Voltage Test Set 20Hz-300Hz
