Gdyj-502A Transformer Insulating Oil Breakdown Voltage Testing System

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Output Voltage:AC 0~80kv
  • Rate of Voltage Rise:0.5,2,3,5 Kv,S±5%
  • Measuring Precision:±(1% Full Scale+2 Digits)
  • Test Times Setting:9
  • Display:7inch Colorful LCD Wih Touch Pad
  • Product Name:Oil Breakdown Voltage,Dielectric Strength Tester

Base Info

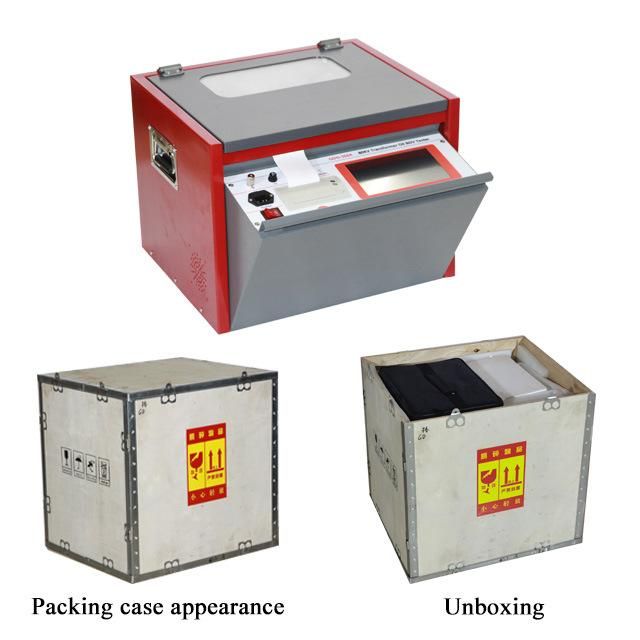

  • Transport Package:Wooden Case
  • Specification:54*46*40CM
  • Trademark:Gold
  • Origin:Chongqing
  • HS Code:9031809090
  • Production Capacity:300PCS,Month

Description

Basic Info.

Transport Package Wooden Case Specification 54*46*40CM Trademark Gold Origin Chongqing HS Code 9031809090 Production Capacity 300PCS/Month

Product Description

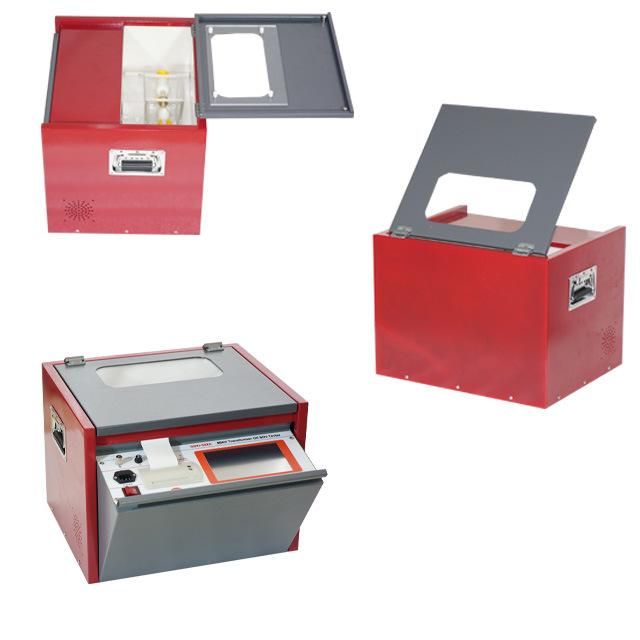

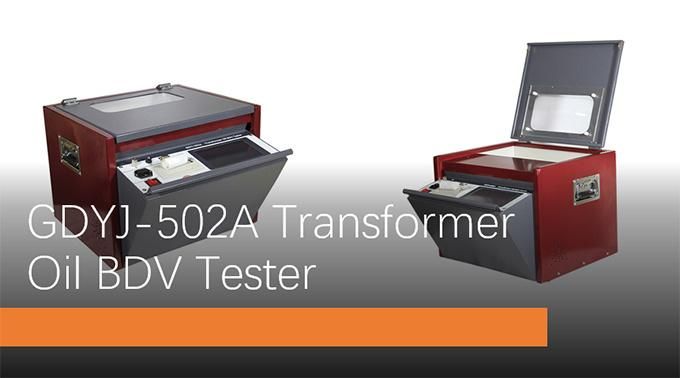

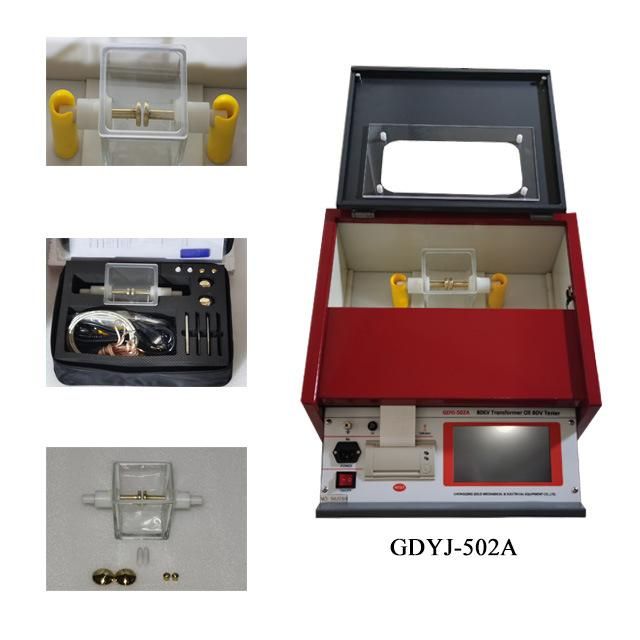

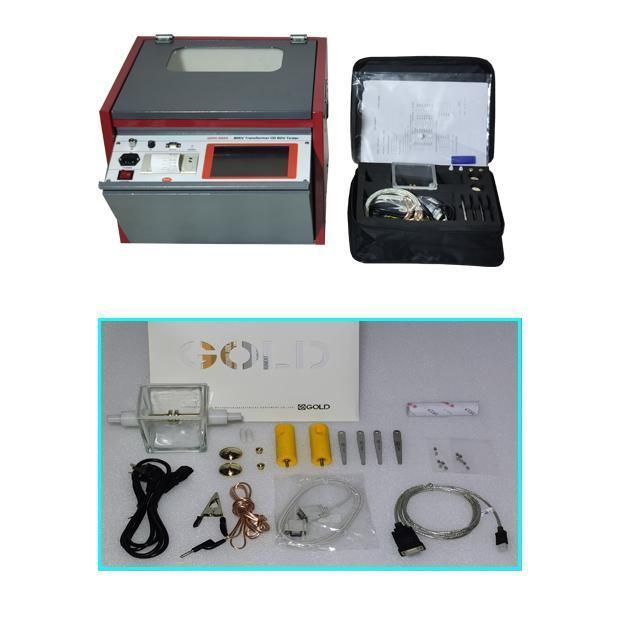

Gdyj-502A Transformer Insulating Oil Breakdown Voltage Testing System


Gdyj-502A Transformer Insulating Oil Breakdown Voltage Testing System


I--Introduction:

  •  ASTM D877 Transformer Oil Dielectric Strength Tester, Transformer Oil BDV Tester is developed according to the national standard GB86 Insulating Oil Dielectric Strength Testing Method .

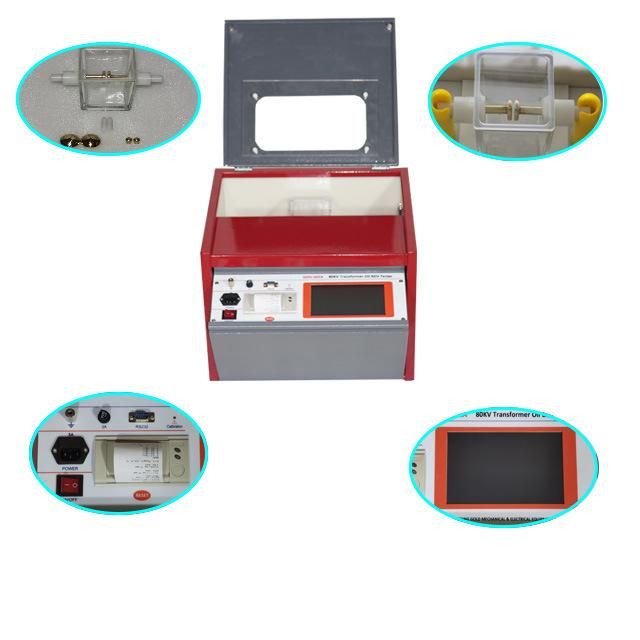

  •  LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse .
  •  It is very easy for customers to measure the breakdown voltage of all kinds of oil by GDYJ-501.
  •  You can print the test result by the micro printer internal the tester.
  •  Of course, you can upload the test data to PC from RS232 for data analyzing.
  •  The special circuit design makes the tester has a good performance at stability and anti-noise.

II---Functions

1 Breakdown test of user-defined

2 Proof test

3 Calibration interface for customers

4 Unloading data to PC and making word report automatically.

5 Result print


III---Technique index

1 Rated power supply: AC 220V±10% 50/60Hz

2 Output voltage: AC 0~80KV/AC 0~100KV

3 Rate of voltage rise: 2KV/s±10%

4 Measuring precision: 3 class

5 Times: 1-9

6 Mixing time: 0~99 second

7 Placing time: 0-9 minute 59second

8 Save 100 groups of data most

9 Voltage limit setting for proof test: 20KV----70KV

10 Hold time for proof test:  1 minute -----10 minutes

11 Environment temperatures: 5-40ºC

12 Relative humidity: ≤80%RH

13 Size: 420×380×410mm3

14 Weight: 28kg


GDYJ Series Insulating Oil Dielectric Strength Tester

Model

GDYJ-501

GDYJ-502

GDYJ-502A

Output Voltage

AC 0~80KV/0~100KV

AC 0~100KV

AC 0~80KV

Rate of Voltage Rise

2KV/s±10%

0.5/2/3/5 KV/s±5%

2KV/s±10%

Max. Time Setting

0~9mins

9mins

0~99 seconds

Test Precision

3% RGD+0.3%FS

3% RGD+0.3%FS

3% RGD+0.3%FS

Max. Data Storage

100 groups

100 groups

50 groups

Power Supply

AC220V±10% 50/60Hz

AC220V±10% 50/60Hz

AC220V±10% 50/60Hz

Environment Temp.

0~50Centigrade

0~50Centigrade

0~50Centigrade

Related Humidity

<80%RH

<80%RH

<80%RH

Dimension

420*380*410mm

620*430*330mm

420*380*410mm

Weight

28kg

41kg

28kg
