• Model NO.：HZCS-3
• Type：Transformer Oil Acidity Analyzer
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Test Range：0.002 ~ 1mg KOH , G
• Power：500W
• Huminity：≤85% Rh
• Power Supply：AC220V , 50Hz
• Repeatability：≤0.005mg KOH , G
• Measurment Error：≤ ± 0.005mg KOH , G
• Measurement Error：≤ ± 0.005mg KOH , G
• Standards：GB,T7599-87, GB,T264-83, GB,T28522-2002
• Aftersales Service：Yes
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9031809090
• Production Capacity：100 PCS,Month
• Package size per unit product：52.00cm * 41.00cm * 33.00cm
• Gross weight per unit product：22.000kg

Basic Info.

Model NO. HZCS-3 Type Transformer Oil Acidity Analyzer Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Test Range 0.002 ~ 1mg KOH / G Power 500W Huminity ≤85% Rh Power Supply AC220V / 50Hz Repeatability ≤0.005mg KOH / G Measurment Error ≤ ± 0.005mg KOH / G Measurement Error ≤ ± 0.005mg KOH / G Standards GB/T7599-87, GB/T264-83, GB/T28522-2002 Aftersales Service Yes Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9031809090 Production Capacity 100 PCS/Month

Packaging & Delivery

Package size per unit product 52.00cm * 41.00cm * 33.00cm Gross weight per unit product 22.000kg

Product Description

High Precision Digital Acidity Analysis Petroleum Products Acid Value Tester

I.Introduction

HZCS- 3Automatic acid value meter , is the use of extraction, automatic measuring instrument to accurately detect oleic insulation value .



II.Features

1. Improve work efficiency and precision while reducing operator contact with the sample and reagents , to maximize the protection of their personal safety.

2.When measured , just the sample was injected into the cup , placing the sample cup sample cup hole, the device will automatically search for the sample extract injected with blank titration , determination, self-cleaning shutdown, display print results of operations.

3.A start can be measured a sample , easy to use and efficient.

4.Instrument calibration instrument equipped with a standard acid and calibration procedures , the user can at any time and in liquid instruments and calibration , and the solution used to overcome the changes in the concentration of defects ;

5.While the determination of the instrument automatically deducted extract the background value , to overcome the effects of the use of the extract value changes of the background of the results . So that the test results are more accurate and reliable.

III.Parameter

Item	Transformer oil acid value tester Acidity of transformer oil
Testing Range	0.002~1mg KOH/g
Error	≤±0.005mg KOH/g
Repeatability	≤0.005mg KOH/g
Temperature	10°c~45°c
Humidity	≤85%RH
Power Supply	AC220V/50HZ
Power	500W

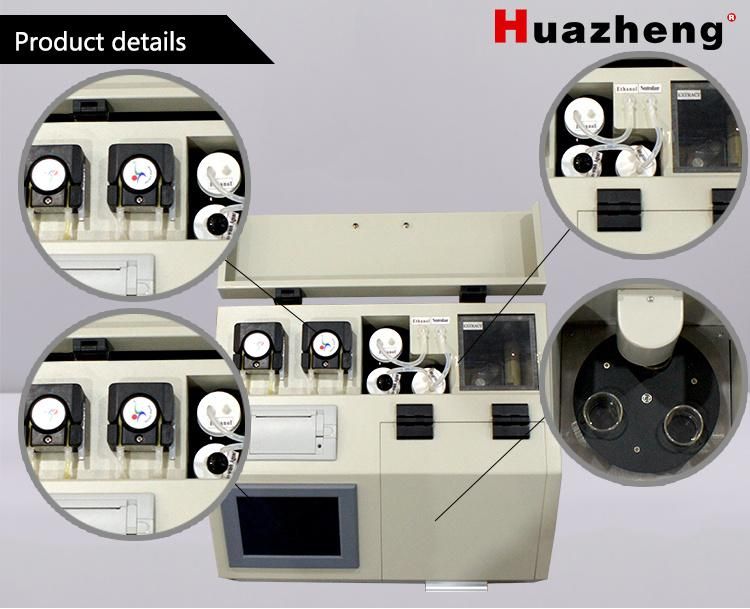

IV.Detailed Photos

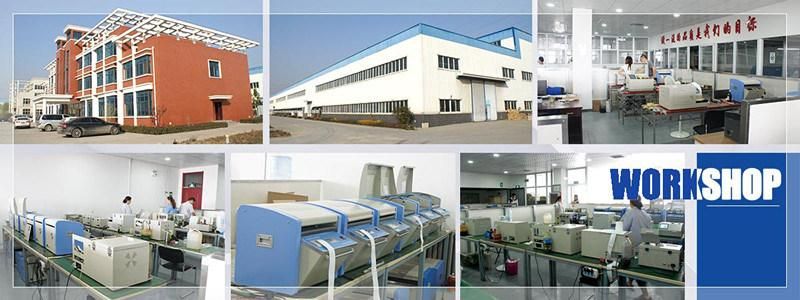

V.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
