• Model NO.：BND-JL
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Delivery Time：3-7days
• Product Name：Casters Wear Test Machine
• Tray Support Capcity：250lbs or Above
• Output Force：30-200kg
• Travel Distance：0-800mm
• Power：220V AC 1.0A
• Transport Package：Safety Wooden Box
• Specification：GB10357
• Trademark：BND
• Origin：China
• Production Capacity：100PCS Per Month

Basic Info.

Model NO. BND-JL Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Delivery Time 3-7days Product Name Casters Wear Test Machine Tray Support Capcity 250lbs or Above Output Force 30-200kg Travel Distance 0-800mm Power 220V AC 1.0A Transport Package Safety Wooden Box Specification GB10357 Trademark BND Origin China Production Capacity 100PCS Per Month

Product Description

Casters wear test machine for office chair en1728




Application:

Equipment used to test the durability of furniture, office chairs and casters reciprocating wheel wear testing test. this equipment Meet the iso-4918 / EN425 standards.

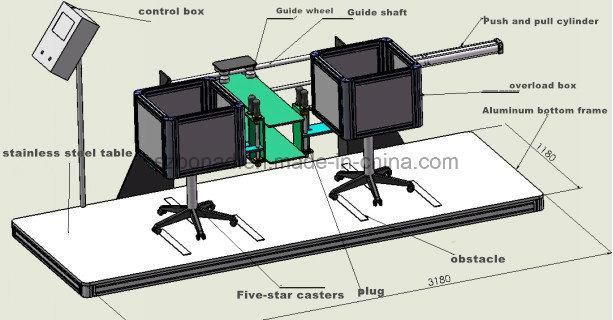

structure:
1. test device forming aluminum chassis, stainless steel friction table, simple plug-type clamping structure, PLC control system, load box, steering system, pneumatic system and other components.

2. aluminum frame structure, covering stainless steel friction surface, beautiful, durable, easy assembly and disassembly;

3. simple plug-type clamping structure, so that the test sample in the vertical direction from external constraints, and all operations can be achieved by a single person, without any tools to assist.

4. Simple pneumatic bar removal structure, so that pressure bar from the tray out in the easy.

5.PLC control, with a power-down memory function, to avoid loss of test data.

6. Touch screen input Enter the test parameters, real-time display test speed.

7. When the count value of any station reaches the set value, the test machine stops working and waits for processing.

8. Each station configuration independent counter, you can always "clear" to restart counting.




Technical parameters :

1. load box carrying weight of not less than 114 kg;
2. Cylinder parameters: cylinder diameter 63 mm, adjustable output power 30-200 kg (depending on the external air pressure), adjustable stroke 0-800 mm.
3. The effective width of the test platform 1000 mm, the effective coverage of obstacles 900 mm wide.
4. Obstacles made of stainless steel 304 material, width 51mm (2in), thickness 3.2mm (0.125in), the length of the wheel Often can pass straight obstacles by half the distance.
5. Power supply: 220VAC 1.0A.
6. gas source: pressure ≥ 0.5MPa; flow ≥ 800L / min; gas source by the water treatment dry.
7. sample load box lifting range: 0-230mm;
8.Test run ≥ 762mm (30in), the frequency of 10 ± 2 times / min, test a cycle for a time, that is, including the forward and backward two-way trip.


What about your quality?
Each equipment must be carry out 100% examination and test again before shipping

What is the MOQ ?
Most instruments support MOQ one set.

How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .

What is the warranty of the products?
One year ,but we can provide you life long support .

What is the package?
Export standard Solid wooden case

What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .

What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc


Company  Profile :Our  Advantages :

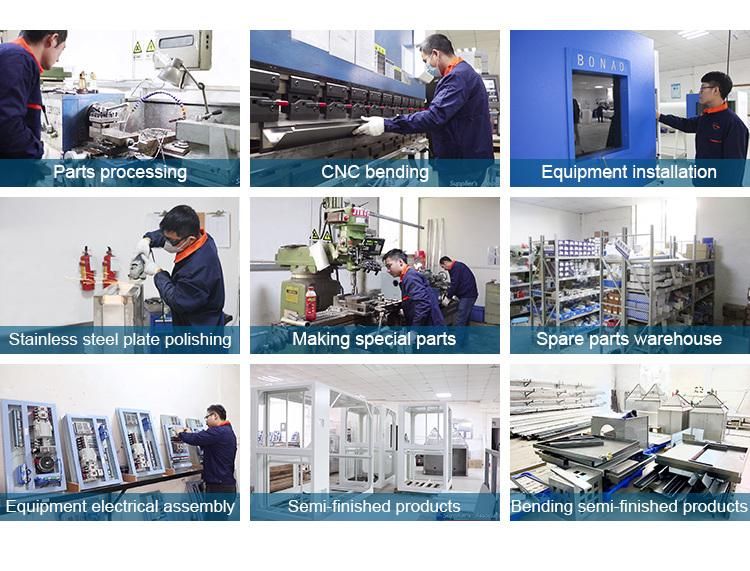

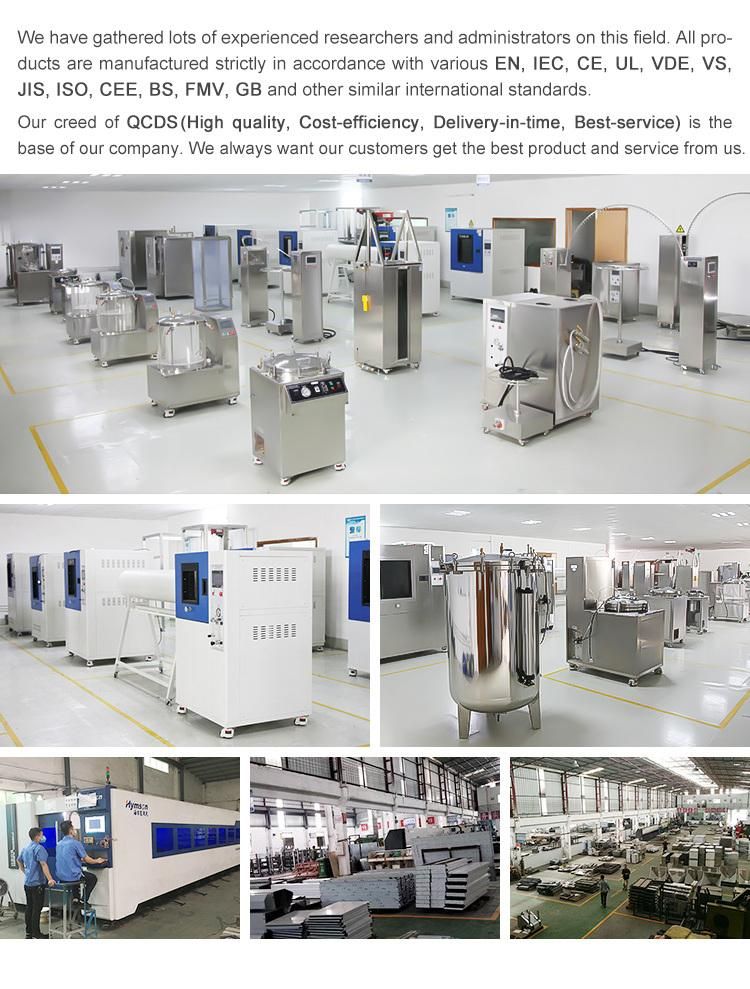

Certifications :Factory  Introduction :Plant Warehouse :Cooperative Customers & Brands:

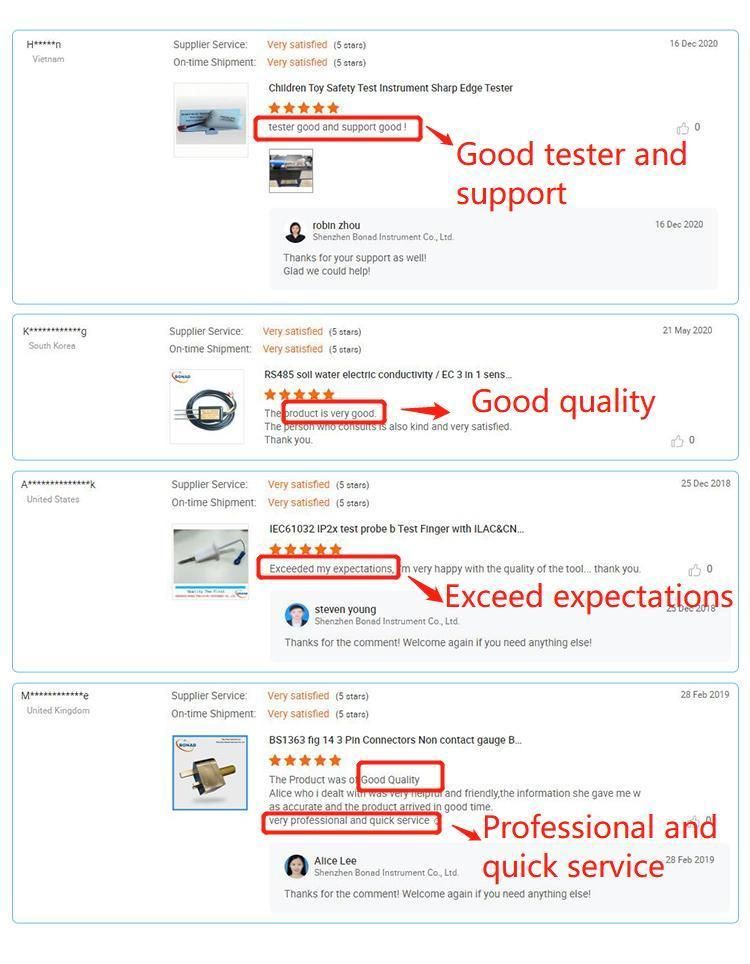

Customer  Reviews :Product  Packaging :
