• Model NO.：TS-150-B
• Humidity Range(Optional)：20%~98%R.H.
• Temperature Recovery Time：Less Than 5mins
• Conversion Time：Less Than 5 Seconds
• Temperature Control Accuracy：+,-0.5 Degree C
• Distribution Accuracy：+,-2degree C
• Compressor：French "Tecumseh" Brand
• Transport Package：Wooden Case
• Specification：150 Liters
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：8514109000
• Production Capacity：80 Sets,Month

Overview Product Description

Thermal Shock Test is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm, which is widely used in metal, plastic, rubber, electronics and other materials and it can be used as an important reference for improving product quality.

Product Parameters

Model

TS-80(A~C)

TS-150(A~C)

TS-252(A~C)

TS-450(A~C)

Internal Dimension WxHxD (mm)

500x400x400

600x500x500

700x600x600

800x750x750

External Dimension WxHxD (mm)

1550x1950x1550

1600x2000x1700

1700x2100x1750

1800x2200x1900

Temperature Range of Testing zone

Type A:-40 °C~+150°C

( 200°C is Optional)

Type B:-55°C ~+150°C

( 200°C is Optional )

Type C:-65°C ~+150°C

( 200°C is Optional)

High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional);

Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºC

Exposure Time of High/Low Temperature

Exposure Time of High Temperature: +60°C ~ +150°C (200°C is Optional) 30Mins

Exposure Time of Low Temperature : -10°C~Type C -65°C 30Mins

Temperature of Heat-Storing Slot / Heating Time

RT~200°C/About  45mins

Temperature of Cool-storing Slot / Cooling Time

RT~-75°C/ About 100mins

Temperature Recovery Time / Conversion Time

≤5min/≤5sec

Control Accuracy / Distribution Uniformity

±0.5°C/±2°C

Internal and External Material

Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.

Insulation Material

High temperature resistant , high density , formate chlorine , ethyl acetum foam insulation materials

Mechanics

P.I.D+S.S.R+ Micro-computer balanced temperature control system

Cooling System

Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type)

Security Protection Devices

Non-fuse breaker, high and low pressure protective switch of the compressor , refrigerator high-pressure protective switch , failure warning system, electronic alarm

Accessories

viewing window(special order)

Compressor

French 'Tecumseh' Brand, Germany Bizer Brand

Power

AC380V 3 ph 5 lines ,50/60HZ

Weight (Approx)

600 Kg

750 Kg

900 Kg

1300 Kg



Programmable Environmental Heat Shock test Chamber Features:
1.It is divided into three zones: high temperature zone, low temperature zone, and testing zone. The test sample is in static mode.
2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, max. time is up to 999H, and max. circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7.Can entering normal temperature. RS-232 and RS-485 communication.

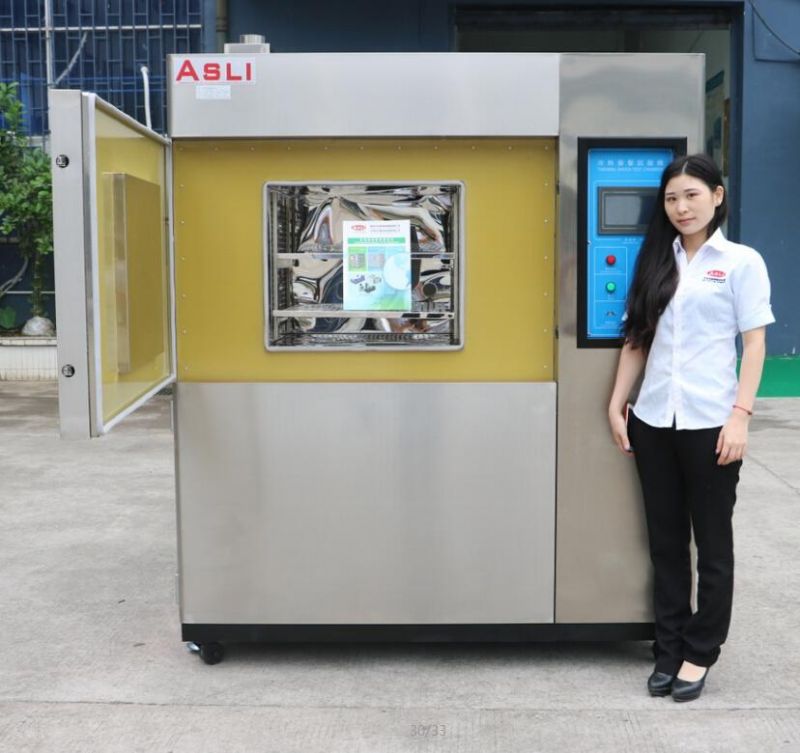

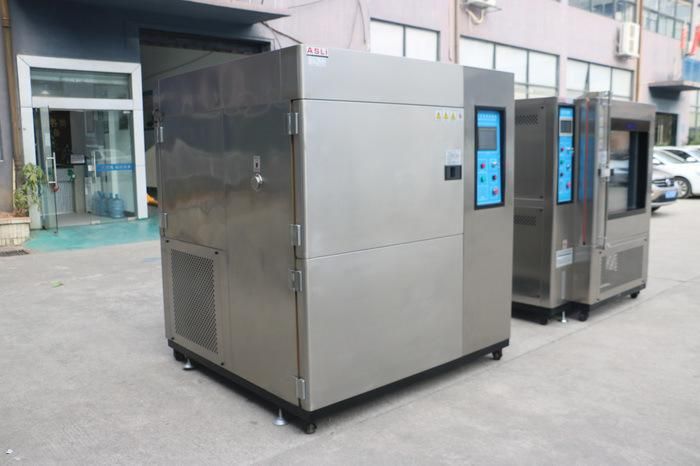

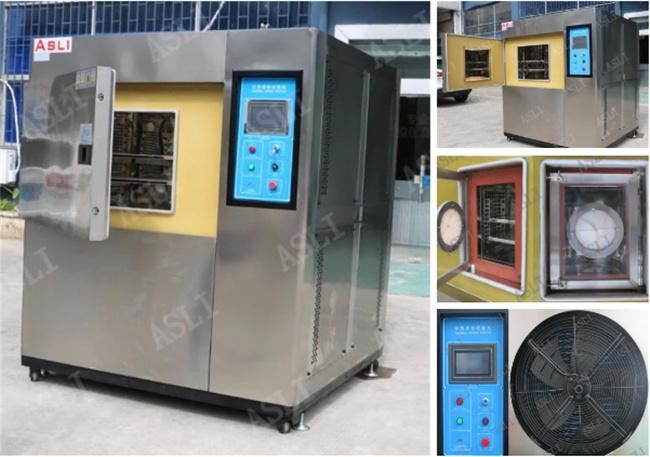

 Detailed Photos

Packaging & Shipping

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.


Our service:
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.
