ASTM D5 Low Temperature Penetration Tester with Water Bath and Penetrometer

Chongqing Advanced Technology Co., Ltd.
  • After-sales Service：Response in 12 Hours
  • Warranty：1 Year
  • Test Standard：ASTM D5
  • Power Supply：AC(220±10%)V, 50Hz
  • Temperature Range：(5.0~60.0)ºC
  • Power Consumption：1200W

Base Info

  • Model NO.：PT-L
  • Measurement Range：0 Penetration~600 Penetrations
  • Resolution：0.1 Penetration(0.01mm)
  • Timing Range：5s, 8s, 10s, 12s, 30s, 60s
  • Dimension of Water Bath：460mm×290mm×420mm
  • Weight of Water Bath：22kg
  • The Length of Standard Needle：50mm
  • The Weight of Standard Needle：2.5g±0.05g
  • Application：Petroleum Asphalt Testing
  • Function：Determine The Penetration of Pavement Asphalt
  • Dimension of Penetrometer：260mm×400mm×640mm
  • Weight of Penetrometer：13kg
  • Transport Package：Plywood Case
  • Specification：Automatic
  • Trademark：AI
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：20 Sets,Month

Description

1Power supplyAC220V±10%, 50Hz2Bath volume5L (including external circulation 2L)3Temperature range(5.0~60.0)ºC4Temperature accuracy±0.1ºC(5.0ºC~25.0ºC)5circulation water quantity8L/min6Working environmentTemperature: 15ºC~35ºC, relative humidity: ≤85%7Maximum power consumption1200W8Dimension460mm×290mm×420mm9Net Weight22kg



Specifications of PT-L Penetration Tester

1Timing controller5s ,8s,10s,12s,30s,or 60s can be selected. Bias within±0.1s2Needle holderHigh accuracy digital display. Easy to use and observe. It can be moved to any position.3Resolution0.01 mm4Penetration accuracy±1 penetration5Measurement range(0-600 ) penetration6The length of standard needle50mm7The weight of standard needle2.5g±0.05g8Sample containerit meets the standard T 0604-20119Weight50g10Dimension260mm×400mm×640mm11Net weight13kg

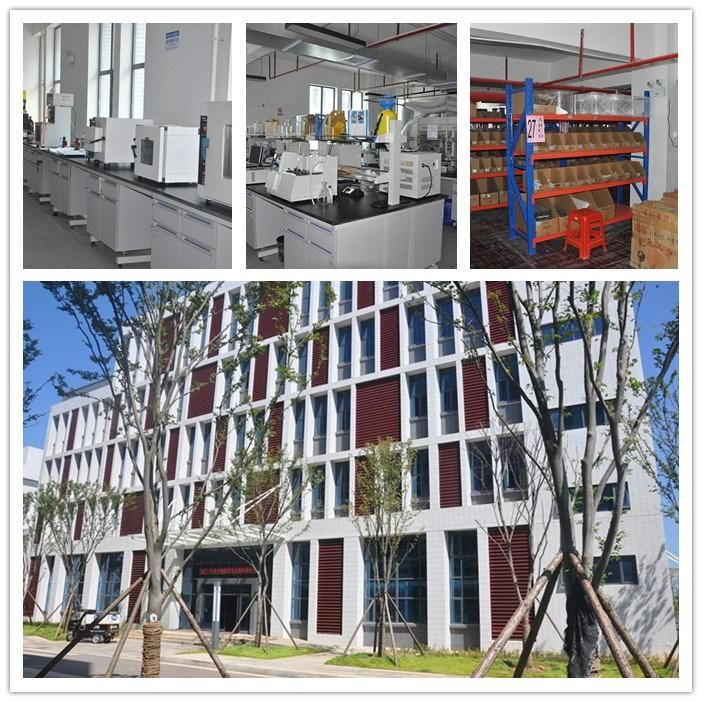

Factory overviewASTM D5 Low Temperature Penetration Tester with Water Bath and Penetrometer
Customer Feedback

Germany
ASTM D5 Low Temperature Penetration Tester with Water Bath and Penetrometer
USA
ASTM D5 Low Temperature Penetration Tester with Water Bath and Penetrometer
Package
ASTM D5 Low Temperature Penetration Tester with Water Bath and Penetrometer
FAQ
1.What's the delivery time?
About 15 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
