• Model NO.：SC-FDR2118
• Power Source：DC 100V-300V
• Weight：〉10Kg
• Installation：Portable Precise
• Customized：Customized
• Load Range：0~500g
• Load Precision：0.2%
• Z-Axis：100mm
• Z-Axis Precision：0.005
• X-Axis：160mm
• X-Axis Precision：0.01
• Y-Axis：60mm
• Y-Axis Precision：0.01
• Life Test Pin：32pin
• Max Test Current：10A
• Max Speed of Cam Disc Pressure：300rpm
• 32 Relay Speeds：45s
• Transport Package：Wooden Packing
• Specification：888mm*530mm*490mm
• Trademark：Scince
• Origin：Suzhou, China
• Production Capacity：50sets,Month

Basic Info.

Model NO. SC-FDR2118 Power Source DC 100V-300V Weight 〉10Kg Installation Portable Precise Customized Customized Load Range 0~500g Load Precision 0.2% Z-Axis 100mm Z-Axis Precision 0.005 X-Axis 160mm X-Axis Precision 0.01 Y-Axis 60mm Y-Axis Precision 0.01 Life Test Pin 32pin Max Test Current 10A Max Speed of Cam Disc Pressure 300rpm 32 Relay Speeds 45s Transport Package Wooden Packing Specification 888mm*530mm*490mm Trademark Scince Origin Suzhou, China Production Capacity 50sets/Month

Product Description

Testing equipment for elastic resistance test of spring contact probe
Product description

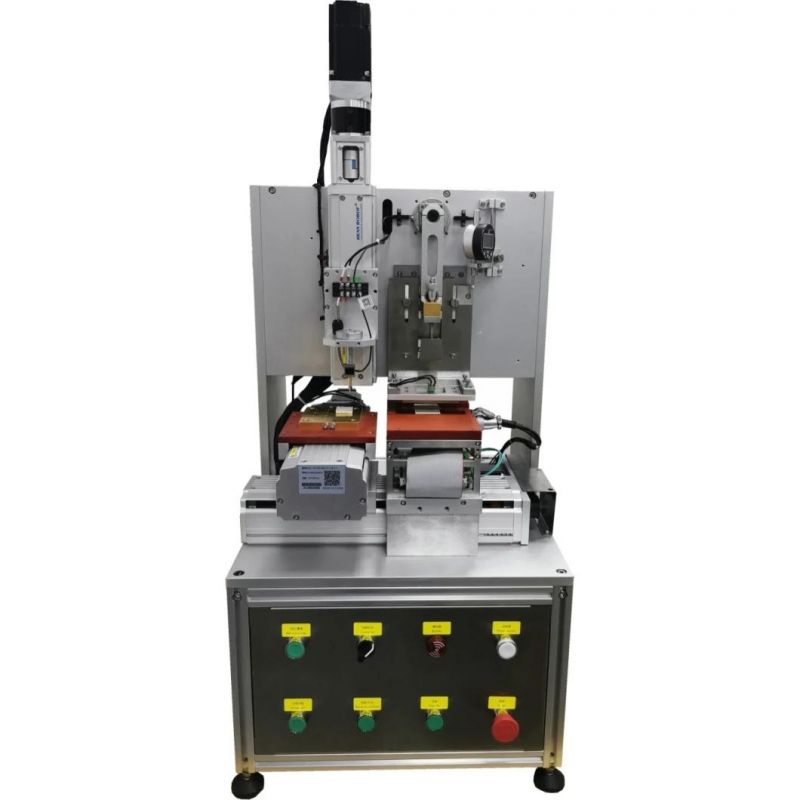

SC-FDR2118 Force Displacement Resistance Test System (Test Probe Life & Elastic Resistance & Current Test System) is used to test the probe life cycle, elastic resistance and electric current. The test system consists of testing machine, micro resistance acquisition module, multiple product test bench, XYZ mobile platform, PLC control system and computer software system.


Function
1. Probe life cycle test
Using cam structure to circulate disc pressure probe to complete the life cycle test.
Complete resistance measurement during disc pressure interval.
Supportup to 96PIN relay test, test resistance through resistance meter.
Data and curve analysis function.
Provide single PINcurve analysis after multiple disc pressing.
Provides MAP analysis to analyze probe quality.
2. Probe elastic resistance test
XYZ platform tests the corresponding elasticity and resistance.
Unlimited number of probe pins.
Data and curve analysis function.
Provide single PINcurve analysis after multiple disc pressing.
Provides MAP analysis to analyze probe quality.
3. Probe current test
Test current and resistance curves of up to 5 PINs.
Platform Z confirms test origin (load or travel).
The XY platforms move to the corresponding PIN for current and resistance measurements.
Current increases to rated current in standard steps.
Current and resistance sampleat set measurement intervals.
Data and curve analysis function.

Advantages
Controlled by a PC, the device realized human-computer interaction, which is convenient for operators to operate and observe the test situation.
The millisecond time, large density, fast speed and extensive number of data acquisition make the performance much higher than other similar products that rely on manual data collection.
High accuracy, multiple functions.
The software system fully considers the convenience of manual operation to reduce the test error caused by manual operation.
Reports of test result will be automatically generated for easy statistics.

Application
The device is mainly used to test indicators of the test probes, including the life cycle, the elastic resistance (elasticity and impedance), and the relationship between the probe current and resistance.
The product is suitable for product quality control of the test probes manufacturer, and the test probes factory as the means of incoming products inspection.

Main Technical Parameters

Items	Parameters	Explanation
Load range	0~500g
Load precision	0.2%
Z-axis	100mm
Z-axis precision	0.005
X-axis	160mm
X-axis precision	0.01
Y-axis	60mm
Y-axis precision	0.01
Life test PIN	32PIN	Can be extended to96PIN
Max test current	10A
Max speed of CAM disc pressure	300rpm
32 relay speeds	45s
Elastic resistance test speed(36PIN)	16min	Test conditions: press 0.35mm, stroke origin mode.  First preload, check the origin each time
Elastic resistance test speed(36PIN)	20min	Test conditions: press 0.35mm, stroke origin mode.  Check the origin eachpreload
Dimensions	888mm*530mm*490mm	Computer size is not included
Power supply	AC220V,50Hz
Power	500W
