• Model NO.：UTM
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Hydraulic Loading
• Display：Digital
• Control：Computer Control
• Weight：>2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Delivery Time：10-15 Days
• Power Supply：AC 220V, 380V, 415V, 440V, 50,60Hz
• Payment：Paid Before Shipment
• Warranty Period：24months
• Onsite Installation：Yes
• Supply Area：Global
• Protection Shield：Optional
• Customized：Yes
• Transport Package：Wooden Case
• Specification：UTM
• Trademark：SERVE REAL
• Origin：China
• HS Code：9031809090
• Production Capacity：200sets,Year

Model

UTM-300D

UTM-600D

UTM-1000D

UTM-1000G

Max Test Load

300kN

600kN

1000KN

1000kN

Total Testing Accuracy

±0.5%

Effective test range

2%-100%F.S

Load resolution

1/500000

Load indicating relative error

±0.5% (±1% optional)

Stress rate control regulation range

1MPa/s-60MPa/s

Stress rate control accuracy

±1%(±2%)

Deformation sampling resolution

1/50000

Deformation indicating value relative error

±0.5% (±1%)

deformation measuring range

1%-100%F.S

Strain rate control range

0.00025/s-0.0025/s

Strain rate control accuracy

±1%(±2%)

Displacement resolution(mm)

0.001

Displacement indicating value relative error

±0.5%

Displacement rate control range

0.00025/s-0.0025/s

Displacement rate control accuracy

±0.5% (±1% optional)

Stress, strain, displacement control range

0.3%-100%FS

stress, strain, displacement control accuracy

±1%

Tension test space(mm)

550

650

750

750

Flat sample max clamping width(mm)

70

75

75

120

Flat sample clamping thickness(mm)

0-15

0-15(15-30)

0-40

Round sample clamping diameter(mm)

φ6-26mm

φ13-40mm

φ13-40mm

φ13-60mm

Oil pump motor power(KW)

1.1

1.1

1.1

1.5

Beam lifting motor power(KW)

0.75

Net weight(KG)

1900

2600

3300

4000

Standard configurations

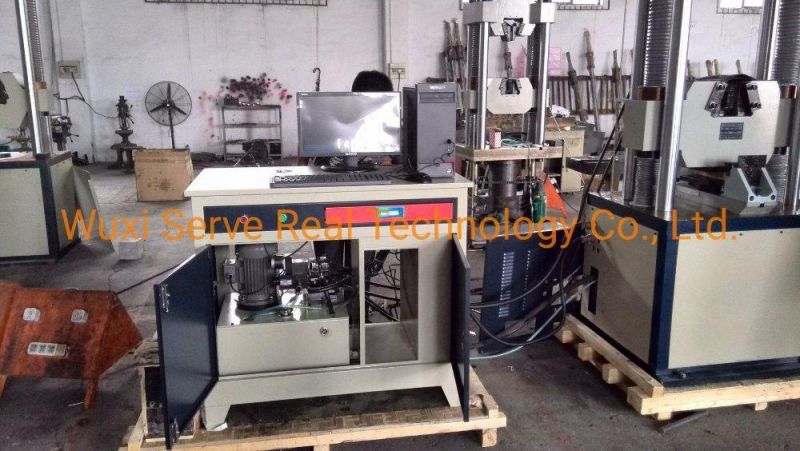

Main testing frame

Controller

Desktop computer

Inkjet printer

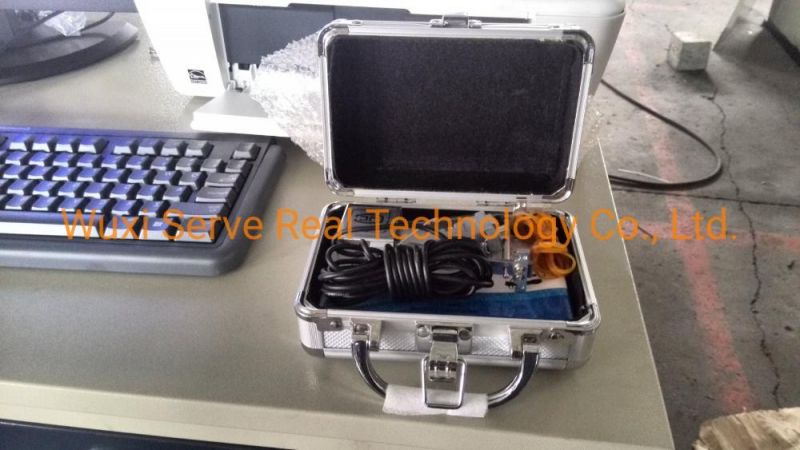

Extensometer

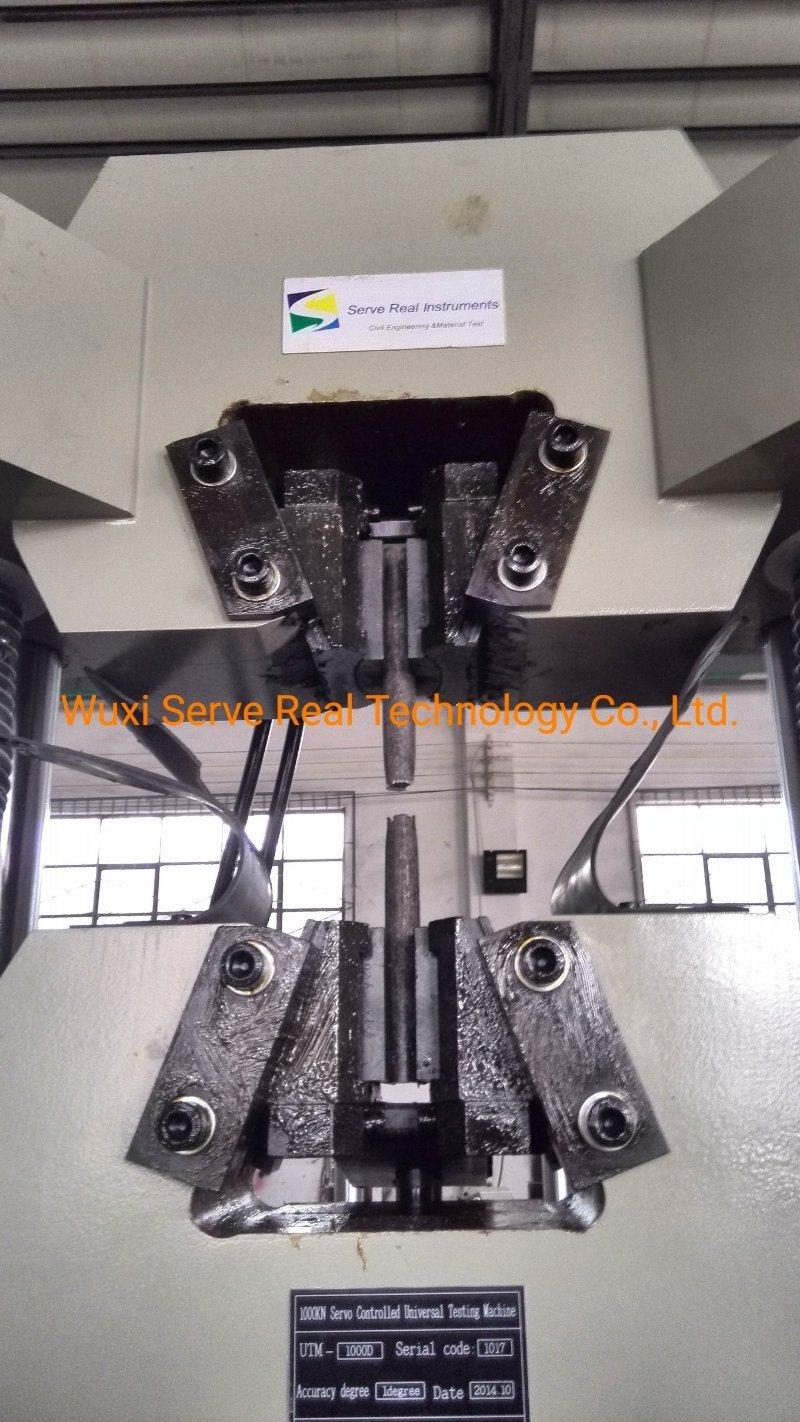

Tension test fixtures, 2 sets for round sample 1set for flat sample

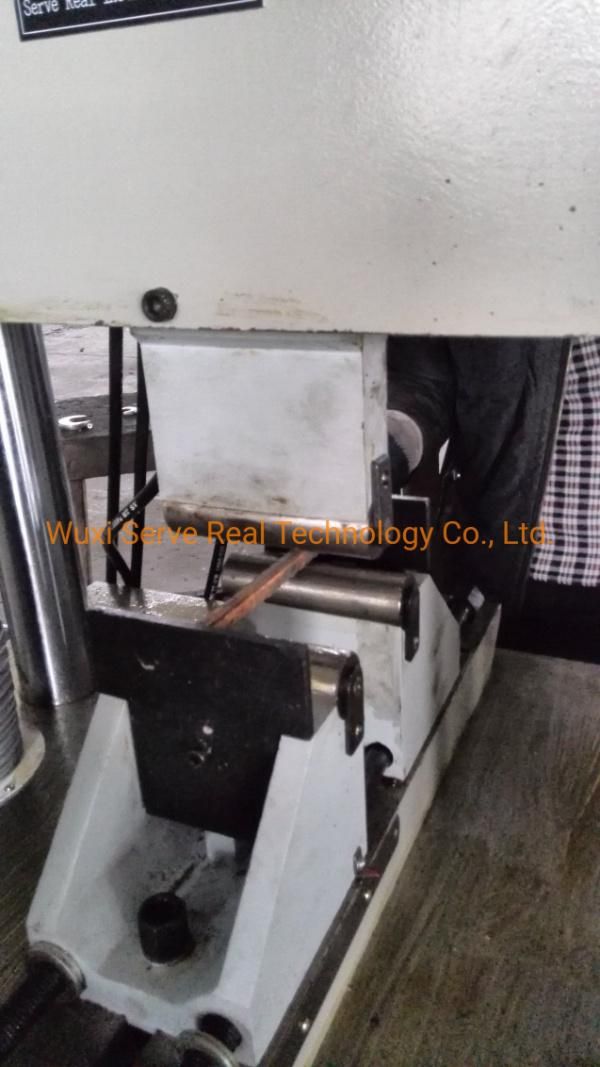

Bending test assembly, 1set

Power cables, Oil pipes

Operation manual

Certificate
