• Model NO.：HLT
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：>2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Irrigation Time：90 Second
• Pneumatic Pressure：0.6 MPa
• Hydraulic Test Pressure：3.2 MPa (Adjustable)
• Name：Automatic LPG Cylinder Hydro Testing Machine
• Transport Package：Standard Seaworthy & Strong Package
• Specification：SGS, ISO
• Trademark：Comflex
• Origin：Wuxi, Jiangsu, China(Mainland)
• HS Code：85152100
• Production Capacity：1000sets,Year

No.DescriptionSize&SpecisUnitIMain Equipment  1Hydraulic Press500Tset2De-colier and punching machine for small round sheet cutting from big sheet (material preparing for shell)XL-2set3Material cutting mould on hydraulic press set463ton hydraulic logo stamping machine63Tset5Shell drawing machine200/300set6Shell forming mouldLS-2set7Automatic trimming machineQK-4set8End dish necking machineSK-3set9Cleaning machineQL-5set10Hole punching machineCK-3set11Valve Seat Welding MachineHP-2set12Shroud welding machineHZ-1set13Bottom base welding machineDZ-1set14Assembling MachineZH-1set15Option NO.1:Circumferential Seam welding machineHJ-3setOption NO.2:Circumferential seam welding machineSingle head MAGset16Annealing furnace with burnerTW-1set17Hydrostatic Testing MachineSY-6set18Shot blasting machineQYP15set19Spraying lineJH-2set20Valve mounting machineJF-2set21Air Leakage Testing MachineCm-2set22Printing machineZS-2set23Roller conveyor line m24Curve Convoyer m25Conveyor line power set26Motorized testing pump set27Cylinder drying machine setIIEquipment For Accessories Manufacturing Equipment  28Punching machine/power press25Tset29Punching machine/power press63Tset30Punching machine/power press100Tset31Bottom base hydraulic forming machine set32Shroud upper R hydraulic forming machine set33shearing machine4mm*1.5mset34Shearing machine4mm*2.5mset35Printing machineGZ-2set36Coding machineBM-1set37Shroud rolling machine set38Bottom base rolling machine set39Shroud mould set40Bottom base mouldDM-2set41Bottonm base welding machine setIIIAuxiliary Equipment  42Air compressor (screw)10/0.8set43Air compressor (piston)2.0/3.0set44Air storage tank1m3/3Mpaset45Air storage tank2m3/1MpasetIVTesting Equipment  46X-ray detecting equipment2505Cset47Mechanical property testing equipmentWES-600Bset48Burst pressure testing equipment set49Ultrasonic wall thickness testing equipment set



II. Description for each equipment:

1. De-coil and punching machine for small round sheet cutting from big sheet(material preparing for shell)
Technical data:
Raw material specifications:
Plate Thickness:2-4mm    Width of plate:Max.1170mm
ID of steel coil:450-800mm    OD of steel coil:Max.1800mm  Weight of steel coil:Max.25T
Coil blanking specification:Ø370-Ø615mm   Blanking period:12s/time including auxiliary time

Hydraulic machine technical data
Motor power:46KW      Norminal capacity:6300KN   Max.working pressure:25Mpa
Slide travel speed:120mm/s

Working table size:2500mm(front+back)*1500mm(left*right)
Weight of decolier:12T   Weight of hydraulic press machine:23T

2.63ton hydraulic logo printing machine

3. Hydraulic press drawing the head
Press the round sheet into a shell with dies.

4. Automatic trimming machine
This machine is reliable, easy to operate.
Technical data
Motor power:5.5KW   Air pressure:0.6Mpa   Trimming time:20s   Weight of machine:1.5T

5. End dish necking machine
Technical data
Motor power:4.5-11kw  Air pressure:0.6Mpa  Thickness of plate:1-10mm

Necking head diameter:150-1200mm Necking time:10-50s (adjustable)
Weight of machine:1.5-3T

6.Cleaning machine
Technical data
Motor power:1.5kw   Polishing motor power:1.5kw*2  Air pressure:0.6Mpa
Polishing wheel feed range:0.2-20mm  Efficiency:180Pcs/hour  Weight of machine:1.2T

7.Hole punching machine
Punch the hole on head of the cylinder
Technical data
Motor power:5.5kw  Punching speed:180Pcs/hour  Weight of machine:1.5T

8.Valve Seat  Welding Machine
To complete the welding of valve seat ring joints. Ensure uniform forming, good appearance, weld penetration and weld width meets the technological requirements, the clamping is convenient. Using submerged arc welding technology, girth welding at one time
Technical data
Rated voltage:220V Motor power:0.25kw Air pressure:0.6Mpa



9.Bottom base welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.
Technical data
Current:AC380V+N    Motor power:0.55kw   Air cylinder pressure:0.5-0.7Mpa

10.Protection enclosure welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.
Technical data
Rated voltage:AC380V  Motor power:0.55kw  Air cylinder pressure:0.5-0.7Mpa

11.Assembling Machine
To assemble both halves of the cylinder together and get ready for welding
Technical data
Cylinder diameter:250mm     Air cylinder pressure:0.5-0.7Mpa

12.Circumferential Seam welding machine

Option NO.1:
Technical data

Voltage:AC380V+N  Motor power:0.55KW  Rotation speed:Max.10rpm/min (adjustable)
Motor power:0.55kw

Option NO.2:
Technical data
This machine is applicated to automated MAG circumferential welding for LPG cylinder,fire extinguisher bottle,etc.
Welding Length:Max.1500mm   Ø:250-400mm   Thickness:2.5-6mm
This machine price include 1 set panasonic welding machine(Model:GL3-500A),1 set cooling water device,welding seam tracker.
Producing capacity:250 pcs/8 hrs

13. Gas car-bottom heat treating furnace machine
This furnace is designed to anneal LPG cylinders by applying flame from gas burner on the cylinders. It composes, burner, flaming chamber, smoke collector, rails, chain roller, exhaling system.
It feature includes, adjustable time, self-control thermometer, perfect heat treatment result and fire off pollution.

Technical data
Producing efficiency:75pcs/hr  Feeding type:Chain drive/cylinder feeding
Cleaning size:Ø320*700mm------Ø420*1250mm
Dimension:(L*W*H):12500*1390*1560mm   removable transport



14. Hydrostatic Testing Machine
The machine is special for steel cylinder of liquefied gas cylinders,applicable to manufacturers and testing station for wuthstand voltage test on cylinder.Irrigation,pressurization,pressure,maintaining centralized control and automatic pouring completed by using water pump,equipped with a water tank,water can be recycled.
Technical data:
Pneumatic pressure:0.6Mpa                    Motor power:3kw
Hydrostatic test pressure:3.2Mpa             Weight:1.1T

15. Cylinder drying machine
The equipment is used for drying the bottle cylinder after water pressure test.

16. Shot Blasting Machine
Shot Blasting Machine for LPG Cylinder are predominantly used to clean LPG/CNC/GAS cylinder in a continuous through feed process, remove remains of casting sand and cores, rust, old paint, visible signs of welding, eliminate surface stress, improve the fatigue strength of the workpiece, increases workpiece film adhesion of the paint job, and ultimately achieve the aim of improving the quality of surface and internal, prepare for surface protection (coloring, enameling, galvanizing, etc.).
Technical data
Produing efficiency:80-120pcs/hr        Shot blasting machine:2 sets
Hoist motor power:2.2KW                    Total power:31.2KW
Weight:16T                                           Workpiece size:Ø320mm*680mm
Machine dimension:(L*W):7885*2460mm

17. Spraying production line
The spraying producing line for U track,using electric or natural gas,fuel oil,coal heating,hot air circulation,the allocation of fixed automatic spray gun 4,manual gun 1.Spraying powder or paint on the steel cylinders apperance.The cylinder into the oven drying after spraying

Technical data
Working voltage:380V 50HZ      Air pressure:0.4-0.6Mpa
Total power:15KW             Working efficiency:180Pcs/jr

18. Valve mounting machine
The equipment is suitable for the liquefied petroleum gas cylinder angle value installation and use,it absorbs the domestic and foreign advance technology,using electrical control,pneumatic clamping,torque adjustable device,when reaching a certain torque,and go to the specificed direction after the automatic shutdown.The machine operation and flexible,convenient and safe
Technical data

Motor power:2.2KW                           Motor speed:1400r/min
Work spindle speed:15.5r/min            Working air pressure:0.5-0.6Mpa
Consumption per hour:1.14m3           Clamping cylinder stroke:120mm
Rotation speed ration:1:59                  Weight:0.9T

19. Leakage Air Test Machine
The device for cylinder do tightness test with,composed of a water tank,a lifting cylinder,a bottle feeding machine,electric control part and other parts,work a bottle feeding mechanism of automatic cylinder will send to be test station,a lifting cylinder will fall into the water.the operating personnel rotation observations of the cylinder is not leaking cylinder,after the test and the cylinder out of water,a loop end.This machine is reasonable in structure,simple operation and maintenance.
Technical data
Air pressure:0.6Mpa                    Testing air pressure:2.2Mpa
Holding pressure time:60s            Weight:1.8T

III. Machinery picture:

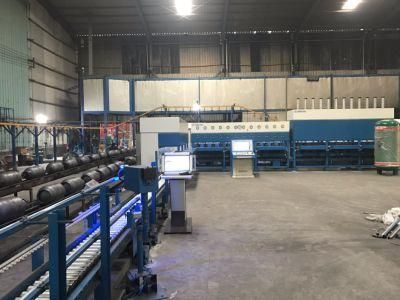

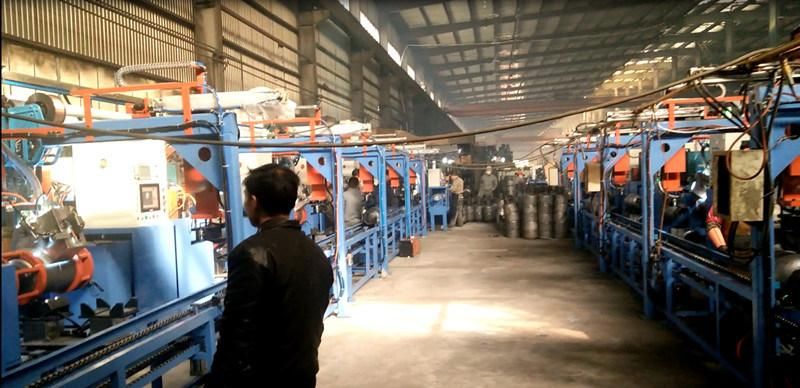

Automatic circumferential welding machine

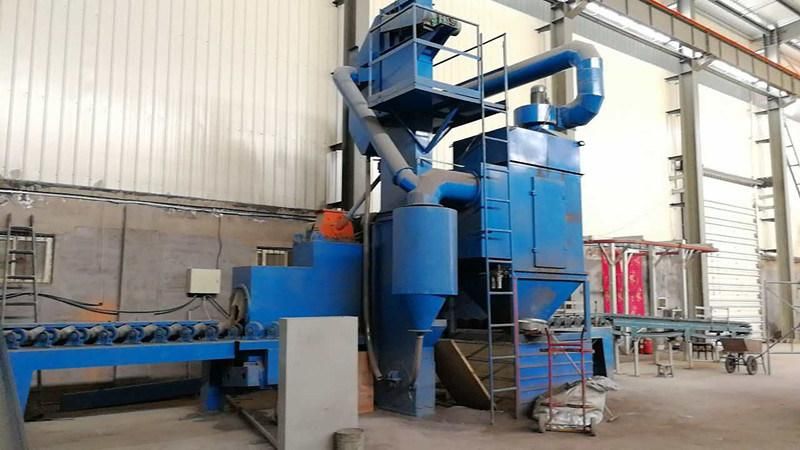

Shot blasting machine

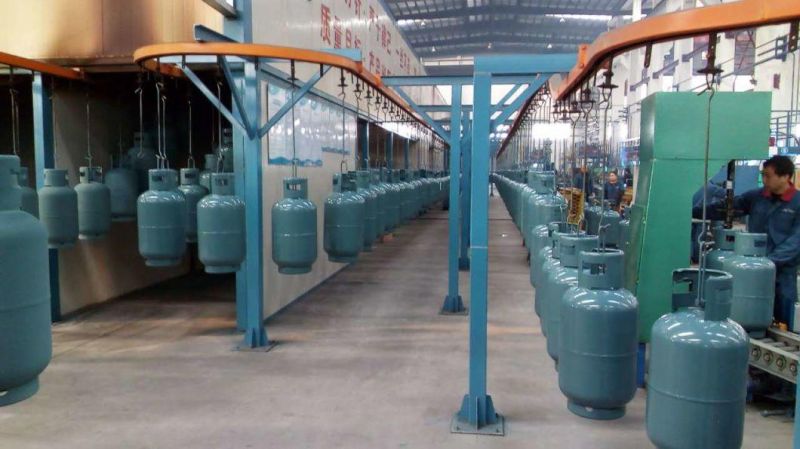

Powder coating line




IV. Successful projects:

1 .TK Group in Bangladesh


2. Hangzhou Yuhang Zhangshan Steel Cylinder Co.,Ltd.http://kelly-huang71.en.made-in-china.com, it is 3rd biggest LPG gas cylinder manufacturer in China, daily output is 12000pcs including all sizes from 2kgs to 50kgs.


3. TPAis manufacturing extremely high quality LPG cylinders for North America, European,UK and Australia. http://kelly-huang71.en.made-in-china.com, we supplied automatic welding line for their China plant in Dongguan. Now we are building new LPG gas cylinder factory in Vietnam, Hangphone, at the end of July, 2017, it will be set up and commissed.


4. Mintai is a newly set-up LPG gas cylinder manufacturing factory in China, the reason we took you there is to see different equipment, especially the online x-ray testing device for the size more than 25kgs which is required 100% X-ray testing in China. The machines for handle and bottom base are samiliar with the ones we will supply to you 5: Shandong Huanri Group co.,Ltd.,ho http://kelly-huang71.en.made-in-china.com, they are biggest and strongest cylinder manufacturer in China, they bought our machines both for 12.5 and15kgs manufacturing and 50kgs manufacturing.


6.AYGAZ in Turkey,  kelly-huang71.en.made-in-china.com.tr


7. Manchester Tank from USA
