• Model NO.：CMX-GT
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Needle
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Model Range 1：DN15-DN50
• Customization：Available

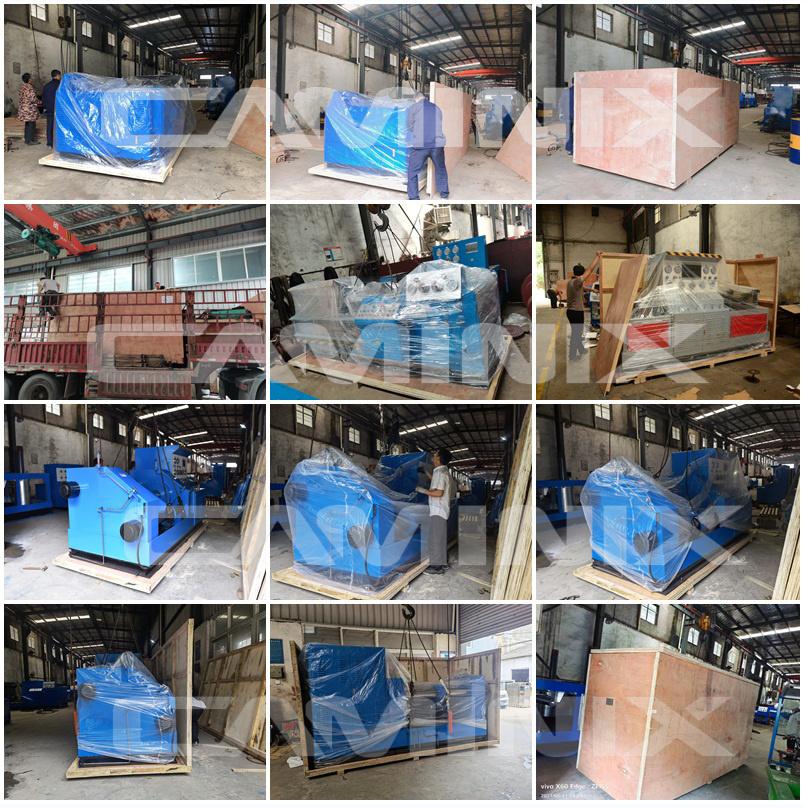

• Transport Package：Plywood Cases
• Specification：depends on size
• Trademark：CAMINIX
• Origin：China
• HS Code：9031809090
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. CMX-GT Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Needle Control Computer Control Weight 500-1000Kg Power Source AC220V Oil Cylinder Position Top Model Range 1 DN15-DN50 Customization Available Transport Package Plywood Cases Specification depends on size Trademark CAMINIX Origin China HS Code 9031809090 Production Capacity 200 Sets/Year

Product Description

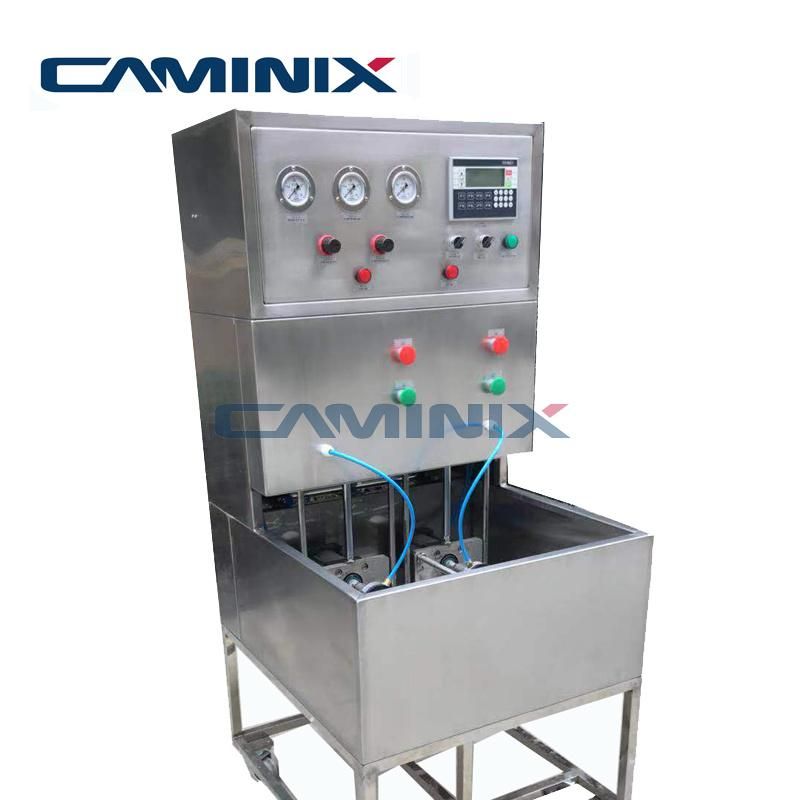

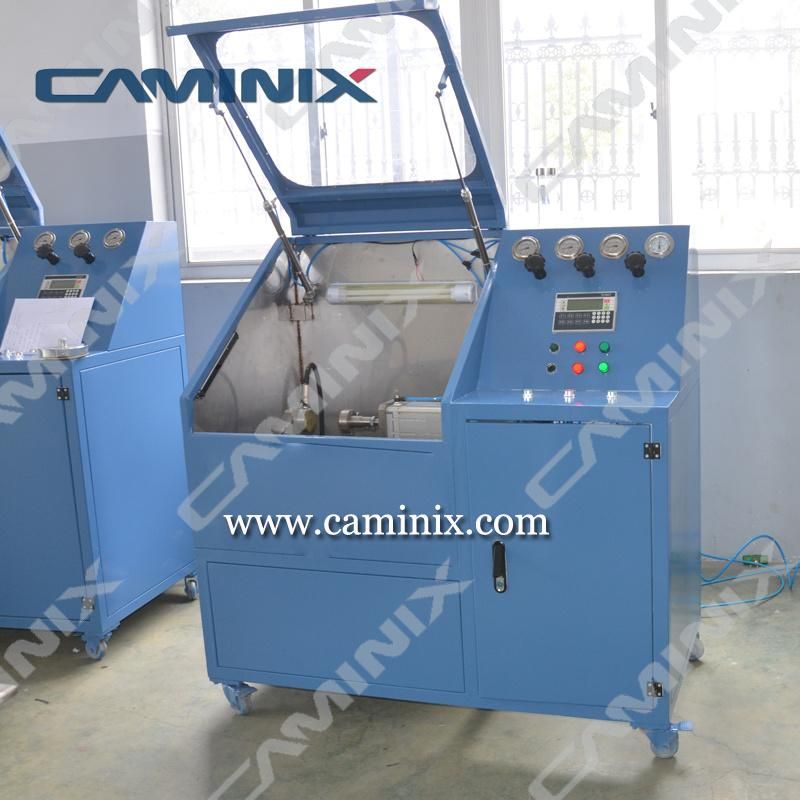

CAMINIX Gate Valve Globe Valve Angle Valve Ball Valve  Pneumatic Pressure test Bench

Overview

This testing equipment can detect the leakage of various valve shells such as ball valves, gate valves, globe valves, faucets, angle valves, etc. The design structure refers to the standards in the valve industry, and the redundancy capability of the equipment is improved as much as possible. Meet various types and standards of valve testing. According to the GB/T 8464-2008 standard, the movement is stable, and the clamping and disassembly of the tested product is simple and convenient. Achieving the maximization of benefits and the persistence and stability of maximum benefits are the business goals of every healthy enterprise

Providing high product quality at competitive prices is an effective approach, which requires cost-effective use of the resources owned by various businesses. The cost-effectiveness of valve testing means that, at the lowest cost and expense, it is possible to test not only a variety of valve types using a variety of standards, but ideally also valves of the same valve type but from different manufacturers. Only 100% inspection can ensure the reliable quality of every valve.


Test items

Ball valve, gate valve,valve and other valves DN15-DN50 Pneumatic testing

Technical Details
Device model CMX-NY-01
Dimensions  Length 1050mm*width 750mm*height 1510mm (according to the size of the product)
Shape material : SS body SS water tank
Operating Voltage: 220V (standard) 50HZ, single-phase DC24V
Working Air Pressure:0.3-0.8Mpa or else as per order

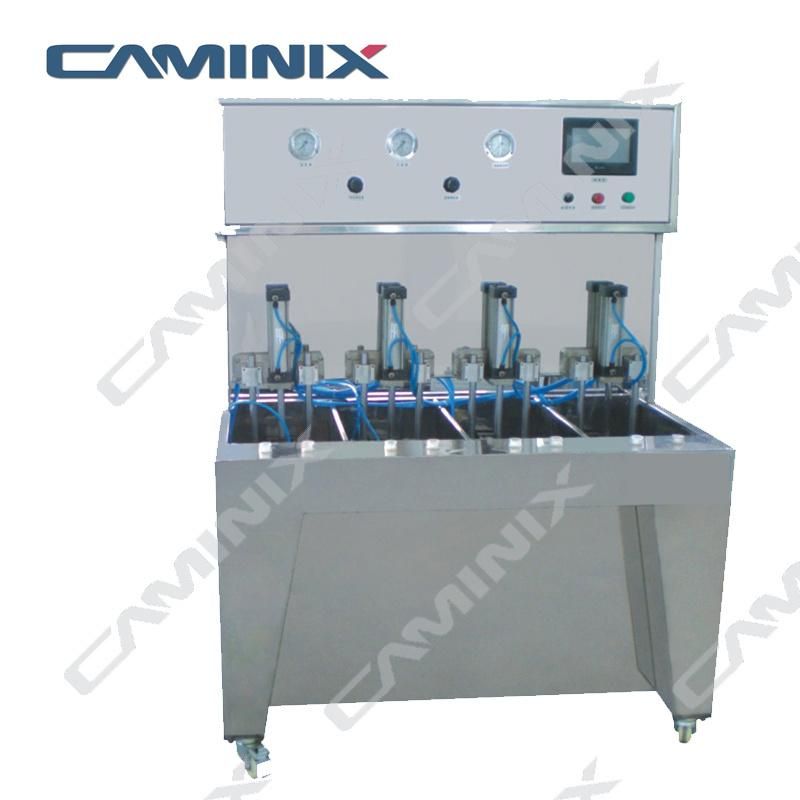

test station: 4 Stations design
Tooling materials: carbon steel material or SS as per order
System: PLC touch screen
Parameter setting: testing times 1-1000000, Air Inlet time: 1-999S, Pressure Holding time:1-999S, Lifting time: 1-999S

Testing Procedures:

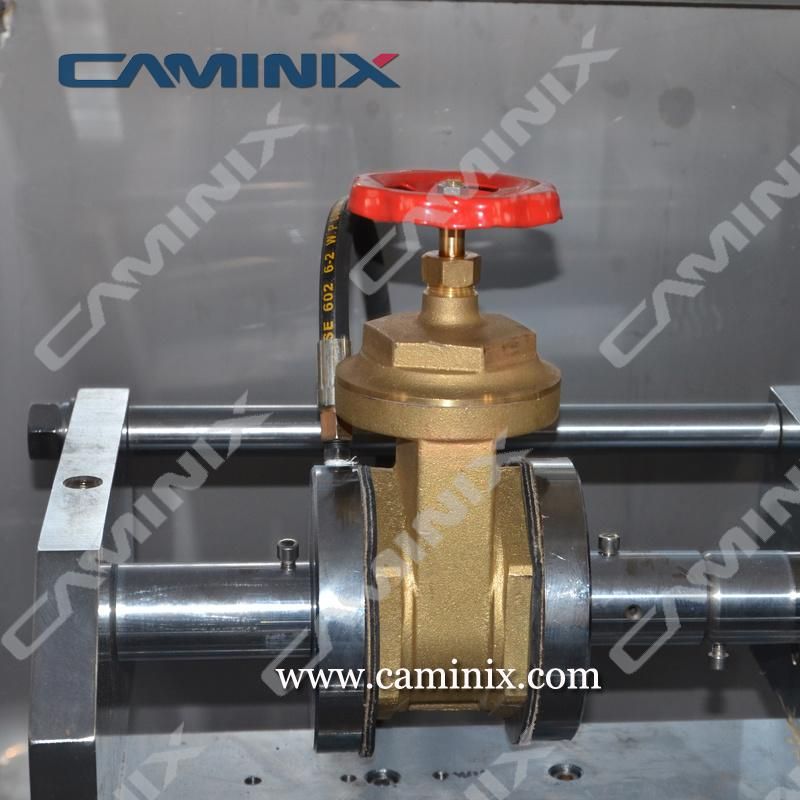

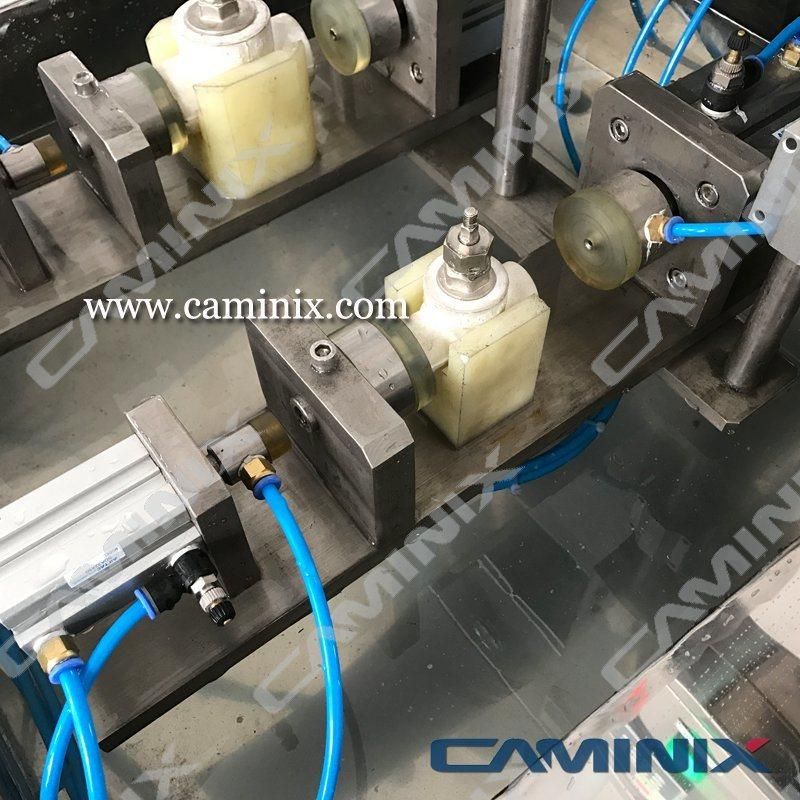

Start the machine, clamp the valves automatically ( time can be set)
Air pressure into the valve body, Start pressure holding
Pressure release -Discharge the valves

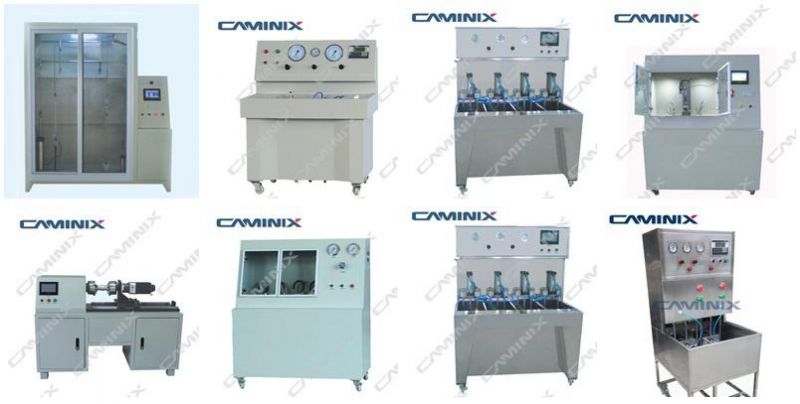

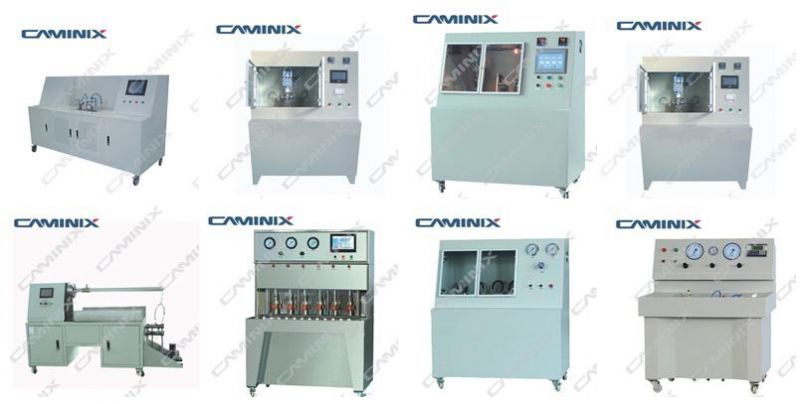

We also have other types of faucet testing machines . Please contact us for more infromation.
We can also customize the machine for you too if you send us the detailed request.
