• Model NO.：HD-F750-1
• Control：Touch Screen Control
• Weight：100-500Kg
• Power Source：AC220V
• Max Capacity：200kg
• Machine Size：600*500*800 mm(L*W*H)
• Test Speed：70±5 Times,Min
• Transport Package：Strong Plywood Case
• Trademark：Haida
• Origin：Dongguan, China
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. HD-F750-1 Control Touch Screen Control Weight 100-500Kg Power Source AC220V Max Capacity 200kg Machine Size 600*500*800 mm(L*W*H) Test Speed 70±5 Times/Min Transport Package Strong Plywood Case Trademark Haida Origin Dongguan, China Production Capacity 30 Sets Per Month

Product Description

Automatic Foam Pounding Fatigue Compression Test Machine
Product Description:
1.Main purpose and function:
Fatigue compression test equipment is mainly used for testing the reciprocating compression of foam polymer materials and measuring the residual deformation rate.
Thus the dynamic fatigue characteristics of the material can be understood.

2.Test Standard:
ISO 3385-2014

3.Product Features:

Indicator	Parameter
Force transducer	200kg(One Force Transducer)
Test speed	70±5 times/min
Display mode	Touch screen display
Control mode	Circuit board control
Test Stroke	80mm
Maximum size of sample can be tested	380*380*50mm(L*W*H)
Test times	1-999999 times(Set arbitrary)
Power	AC /220V,25A,50HZ
Engine power	0.85KW
Machine size	600*500*800 mm(L*W*H)

(The table parameters for the company Standard Model parameters, we support customer customization parameters)

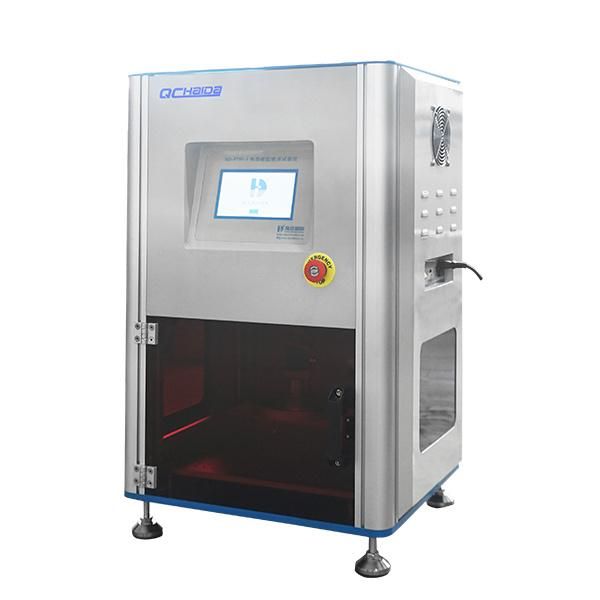

4.Product View:



The Introduction of Haida:
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.




Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
