• Model NO.：XB-OTS-UV-A
• Transport Package：Strong Wooden Case
• Specification：1165*450*500mm
• Trademark：OTS
• Origin：China
• HS Code：9024800000
• Production Capacity：258 Sets Per Month

Basic Info.

Model NO. XB-OTS-UV-A Transport Package Strong Wooden Case Specification 1165*450*500mm Trademark OTS Origin China HS Code 9024800000 Production Capacity 258 Sets Per Month

Product Description

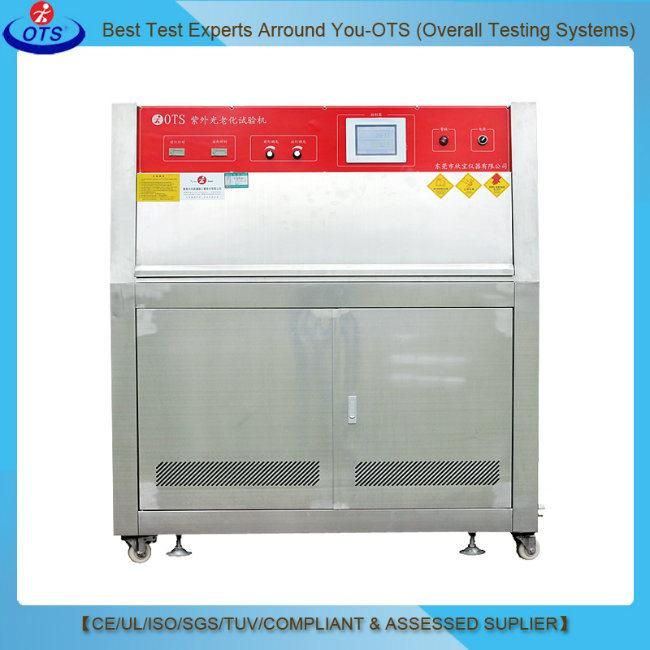

UV Lamp Accelerated Weathering Testing Machine



 Applicable Industries:

UV Weathering Test Machine is the world's most widely used ,can be used in more labs throughout the world than any other accelerated weathering tester. It's used widely in the industry, such as printing ink, paint, pastics, print, packaging,motor van, metal, electron, medical, and so on.

UV Weathering Test Machine ,simulates damaging effects of long term outdoor exposure of materials and coatings by exposing test samples to varying conditions of the most aggressive components of weathering - ultraviolet radiation, moisture and heat. A UV accelerated weathering chamber uses fluorecent lamps to provide a radiation spectrum centered in the ultraviolet wavelengths. Moisture is provided by forced condensation, and temperature is controlled by heaters.



 Applicable standards:

(1) ISO 48-3-2006, Plastics - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV lamps;

(2) ASTM D4329-2005, Standard Practice for Fluorescent UV Exposure of Plastics;

(3) ASTM D4587-2005, Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings;

(4) ASTM D5208-2001, Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics, etc.



 Specifications:

Model	XB-OTS-UV-A/B
Control system	The man-machine interface, color LCD touch screen
Temperature range	RT+10 °C~70°C
Temperature fluctuation	less then ±3°C
Humidity range	75%~95%R.H
Center distance of lamp	65~70mm
Distance between sample and tube center	55 mm
Wave length	UV-B Wave (280~315nm) or  UV-A Wave(320~400nm)
Specimen size and quantity	75x150 mm 48 pcs
Water and consumption	Distilled water, 8 liters / day
Studio size	W1480xD560xH1450mm
Power	AC 220V 50HZ   5KW
Tube quantity	8 lamps, imported from Canada
Weight	150KG



Features:

(1) Electronic-eye irradiance control system

(2) Use blackboard temperature sensor providing precise temperature and recurring test result.

(3) Perform humidifying, condensation and water spraying circulating test.

(4) Irradiance is calibrated by CR-10 calibrator and automatic calibration procedure (Paten                          technology)

(5) Specimen size and quantity: 75mm×300mm 24pcs, 75mm×150mm 48pcs

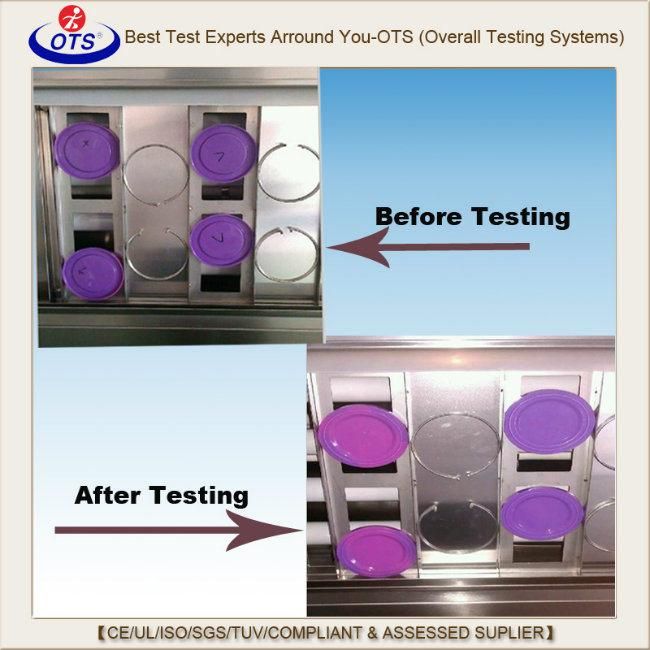

Product View :

1. Are you Manufacturer?Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of professional and biggest Manufacturer of Hot Sale Drying Oven For Laboratory,Hot

Air Circulating Oven,High Temperature Oven .Every machine from our factory has a 14-month warranty

after shipment. Generally,we offer 12 months for the FREE maintenance, while considering of sea

transportation,we can extend 2 months for our customers.

If your machine doesn't work, you can send E-mail to us and we will try our best to find

the problem by email or skype video chat if neccesary. After confirmation of the problem,

we can send you new spare parts or provide on-site repair.

2. What's the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery

time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider

making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine.

4. Do you have a branch company or service office in my country?

We have offices in the belowing:

The US Office: XIN BAO INSTRUMENT (US) CO.,LTD

Tel: 001-612-402-1218

Vietnam: XIN BAO INSTRUMENT INDUSTRY(VIETNAM)CO.,LTD

Tel:+(848)66764653 Fax:(+848)37527888

Address:248 no.1A Road,An Lac-Binh Tri Dong Residence,B Ward, Binh Tan Disrtict, HO Chi Minh City, Vietnam.

Singapore Dealer: Surveillance Inspection & Testing Services Pte Ltd

Tel: (+65) 96857857

Address:No. 5 Jalan Kilang Barat #08-06 Petro Centre Singapore, 159349

Italy Dealer :AMSE SRL

Tel:+39-011-2730000

Address: Strada della Cebrosa 86, 10156 Torino Italy

Suzhou Branch: XIN BAO INSTRUMENT SUZHOU BRANCH

Tel:0512-67078249  Fax: 0512-67078749

Address: The First Garden B5 Buildings,Wuzhong Road 2588,Wuzhong District, Suzhou City Jiangsu Province

 Nanjing Branch: XIN BAO INSTRUMENT NANJING BRANCH

Tel: 025-85657886  Fax: 025-85657896

Address: Room 539, Excellence Building, 688 Zhujiang Road, Xuanwu District, Nanjing City, Jiangsu Province

Taizhou Branch: XIN BAO INSTRUMENT TAIZHOU BRANCH

Tel: 0576-88522556  Fax:0576-88522556

Address: No.68, Gaoyuan District, Jiaojiang District, Taizhou City, Zhejiang Province

Taiwan : TAIWAN XIN BAO INSTRUMENT CO.,LTD

Tel:04-24731563   Fax:04-23804092

Address: No. 551-1, 4, Central Road, Taichung City, Taiwan

5. How to install and use the product?

We will send you operating instructions, English  video by Email. Or you can download on our

officail website directly.

Most of our machine is shipped with a whole part, which means it is already installed, all you

need to do is to connect the power cable and start to use.  And if possible, we can also install

your machine at site.
