• Model NO.：BE-8101
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Piston Diameter：32mm
• Driving Mode：Hydraulic Press
• Unit Conversion：Kg,N,Lb
• Crush Range：0~300mm
• Extrusion Accuracy：±1%
• Transport Package：Each Set Protected with Resin Fiber and PP Film, T
• Specification：Test Space 600x700x600(customizable)
• Trademark：DGBELL
• Origin：Guangdong China
• HS Code：9031809090
• Production Capacity：100set ,Month

Basic Info.

Model NO. BE-8101 Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Under Piston Diameter 32mm Driving Mode Hydraulic Press Unit Conversion Kg/N/Lb Crush Range 0~300mm Extrusion Accuracy ±1% Transport Package Each Set Protected with Resin Fiber and PP Film, T Specification Test Space 600x700x600(customizable) Trademark DGBELL Origin Guangdong China HS Code 9031809090 Production Capacity 100set /Month

Product Description

Battery Pack Crush Test Machine According to UL 1642

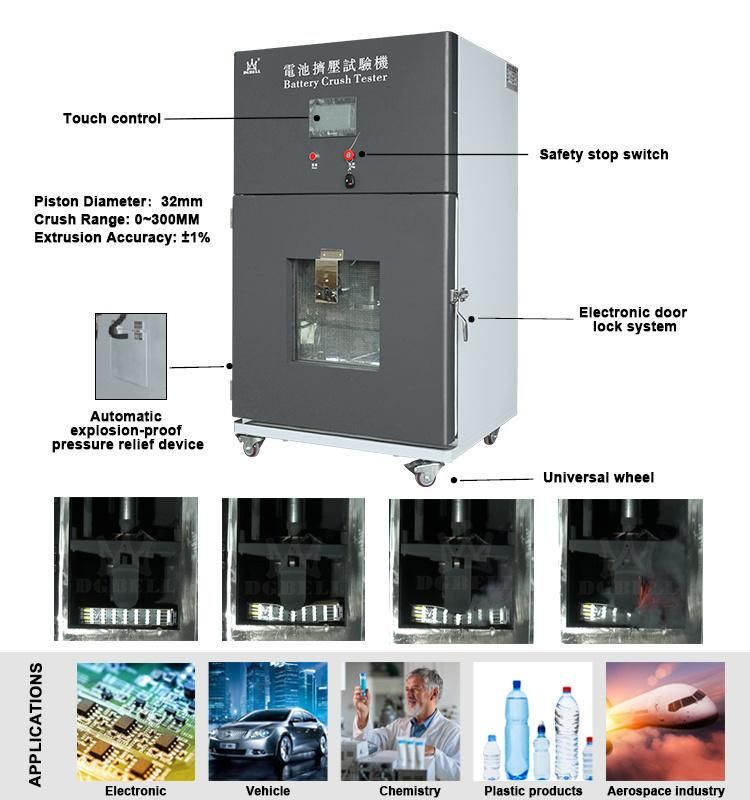

Product Image

Application

This battery crush test chamber is used for battery crush tests. This battery testing equipment simulates the conditions of the battery crushing and displays communication results. Besides, it has excellent security measures, such as an Explosion-proof pressure relief device, Smoke exhaust device, Explosion-proof chain. This battery testing equipment is a must-have test device for battery manufacturers and researchers.



Related Standard Test Requirements

• IEC 62133-2017
• UL 1642
• UN 38.3

Technical parameters

Model	BE-8101
Max. Pressure	1KN-20KN (Can be customized according to requirements)
Piston Diameter	32mm
Driving Mode	Hydraulic Press
Unit Conversion	Kg/N/Lb
Crush Range	0~300MM
Extrusion Accuracy	±1%
Extrusion Remaining Time	0~99 hours 99 mins 99 secs
Controlling Mode	PLC touch screen control system (7-inch touch screen) + remote control
Testing Space	W500xD300xH300 mm
Overall Dimension	W940xD780xH1620 mm
Observation Window	390 X 360mm (20mm thick tempered glass with explosion-proof grid)
Power Supply	AC 380V / 50HZ / 2.0KW
USB Interface	With USB interface, the test data can be output
Auxiliary Function	Explosion-proof pressure relief device, Smoke exhaust device, Explosion-proof chain
Options	Video monitoring system, Temperature, Voltage acquisition system, Fire extinguishing system
