GDKC-15A Power System switch tester High voltage circuit breaker
HV Hipot Electric Co., Ltd.- After-sales Service：yes
- Function：check
- Display：Digital
- Usage：Electric Component Tester
- Type：Electric Inductance Measuring Tester
- Environment：Room Temperature
Base Info
- Model NO.：GDKC-15A
- Warranty：1 year
- Power Source：DC 100V-300V
- Weight：〉10Kg
- Installation：Direct Connected
- Customized：Non-Customized
- Current display：Maximum current 30A, resolution: 0.01A
- Instrument power supply：AC,DC 220V±10%; 50Hz±2%
- External trigger voltage：AC,DC10-300V, current≤120A
- Operating Environment：-20ºC~+50ºC
- Dimensions：570mm (L)* 400mm (W)* 240mm (H)
- Transport Package：Standard Export Wooden Box
- Specification：360*260*170mm
- Trademark：HV Hipot
- Origin：Wuhan, China
- HS Code：9031809090
- Production Capacity：2000sets,Year
Description
DC10--250V/20A Digital adjustable power supply is provided.
Specifications
Specifications
- 1mm
Oil circuit breaker 600.0mm - Current: range 20.00A, resolution 0.01A
- Output power: DC10-250V digital adjustable/20A (instantaneous working), resolution 1V.
- Dimensions: about 570mm (L)* 400mm (W)* 240mm (H)
- Weight: about 12kg

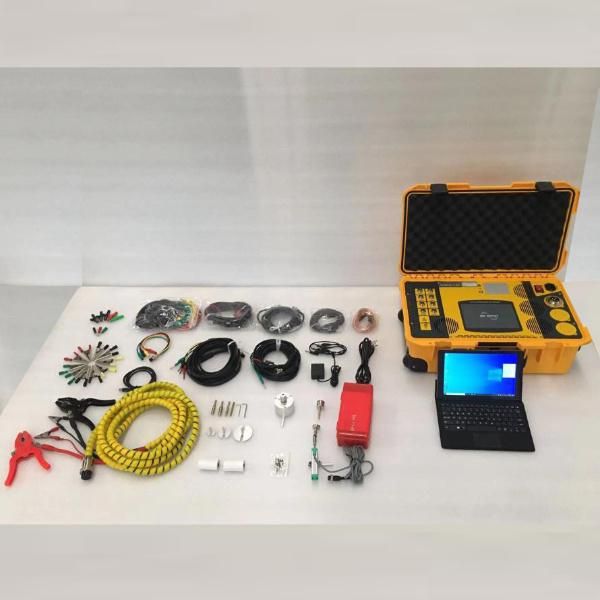

Packing ListMain Unit 1 pc Accessory case 1 pc Rotary speed sensor 50mm 1 pc Linear speed sensor 1 pc Speed signal connection cable (5core shielded wire) 1 pc Opening and closing control cable (3core sheathed cable) 1 pc External trigger detects cable (red/black, 2-core) 1 pc Ground cable 1 pc Contact test cable (4core sheathed cable) 1 pc Contact test extended cable (5M, yellow, green and red each one-piece, black 3pcs) 6pcs Short cable (0.5m black, 2m black) 2 pcs Power cord 1 pc Universal Joint and magnet base 1 pc Test clips and thimbles 18pcs Contact resistance test cable 1 pc Software 1 pc Print paper 2 rolls User's guide 1 pc Factory test report 1 pc
