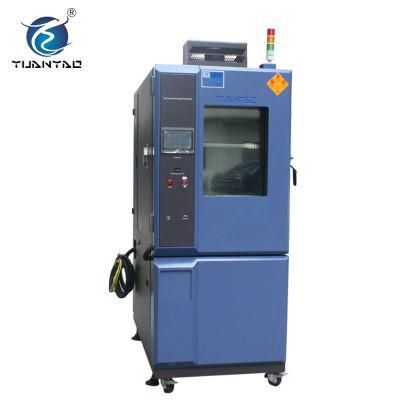

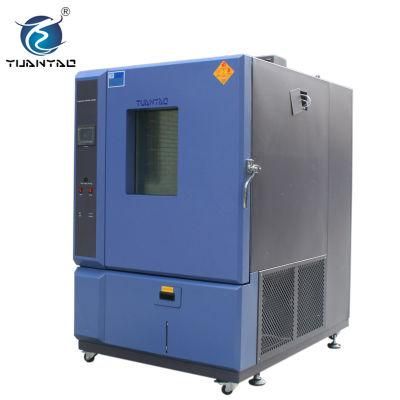

Climatic LED Temperature Cycling Test Cabinet

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Max Diameter of Workpiece：500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load

Base Info

  • Model NO.：YICT-800
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Controller
  • Weight：100-500Kg
  • Power Source：AC380V
  • Oil Cylinder Position：N,a
  • Inner Size：1000*1000*800mm
  • Compressor：Tecumseh Compressor
  • Volume：800 Liters
  • Temp. Range：-70degrees---+150degrees(Ks)
  • Temp. Rapid Change Range：-70degrees; -50degrs--+85degrs
  • Heating&Cooling Rate：3 Degrees,Min, 5degrees,Min, etc.
  • Temp. Fluctuation：+,- 2 Degree
  • Temp. Uniformity：+,-1.5degrees
  • Interior Chamber Material：SUS#304 Stainless Steel Plate
  • Exterior Chamber Material：Stainless Steel Plate + Powder Coated
  • Transport Package：Strong Wood Carton
  • Specification：SGS, TUV certified.
  • Trademark：Yuanyao Rapid temperature change test chamber
  • Origin：Dongguan, China(Mainland)
  • HS Code：9032100000
  • Production Capacity：10sets,Month

Description

 ModelYICT-225YICT-306YICT-408 Inner chamber size
 W×H×D (cm)60×75×5060×85×6080×85×50 Exterior chamber size
 W×H×D (cm) Depends on chamber designTesting temperature   range '-70ºC~150ºC(KS);-40ºC~150ºC(KL);-20ºC~150ºC(KR) Rapid-rate   temperature range -55ºC~+85ºC;-40~+80ºC;-20~+80ºC; 0~+80ºC Temperature gradient 3ºC/min, 5ºC/min, 8ºC/min, 10ºC/min, 15ºC/min (linear or non-linear,empty   loading),customization is available Temp. fluctuation ±0.3ºC  Temp. uniformity ±1.5ºC(empty loading after stablize for 30 mins) Temp. resolution 0.01ºC  Exterior chamber   material Cold rolled plate + Powder coating Interior chamber   material SUS#304 Stainless steel Insulation material PU+ fiberglass wool Circulation system Centrifugal fan air circulation system Heating system SUS# Stainless steel high-speed heater Refrigeration system Compressor + Finned evaporator + Air(Water) cooled condenser Controlling system Touch screen controller+SSR+PID Other components Test hole (50mm), Control status indicator, Interior light
 Compartment shelf (2 freely adjustable)Safety protection device Overheat protection circuit breaker,Compressor overload protection
 Control system overload protection, Overload indicator
 Phase sequence protection, High voltage and low voltage protection
 Over temperature protection, Fan overcurrent protectionPower supply AC 3Ψ380V 60/50Hz Customization service Non-standard or special requirements are all welcome
5.Customization service is available, we can set & design equipments according to your own specific requirements!
Climatic LED Temperature Cycling Test Cabinet

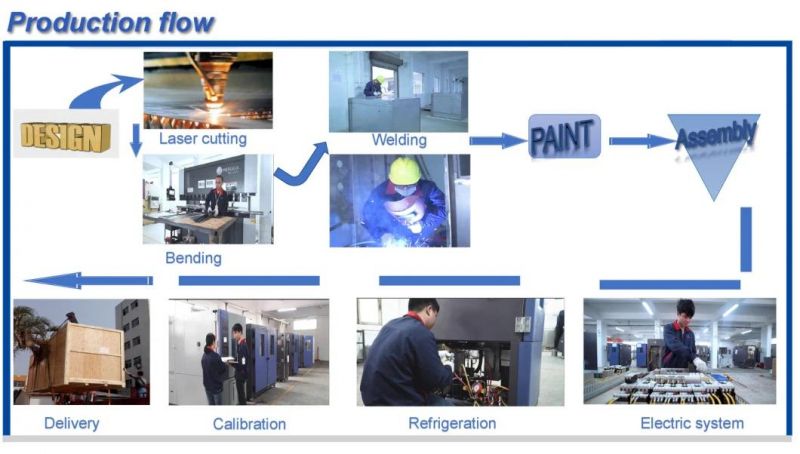

6.Production Line:
We have independent workshops, they are consist of material bending and welding area, machine assemble area, electric system area, cooling system area ,testing and finished product area.

We produce in strict accordance with international safety standard.

Many stock spare parts in warehouse ensure customer can get soon when they need.

Climatic LED Temperature Cycling Test Cabinet

7.In the past years, Yuanyao has exported more than 2,000 chambers to more than 70 countries all over the world.

1. Pre-sale service : Confirm customer's requirement to send suitable proposal.

2. Make final confirmation before production(machine outlook design and technical parameters).

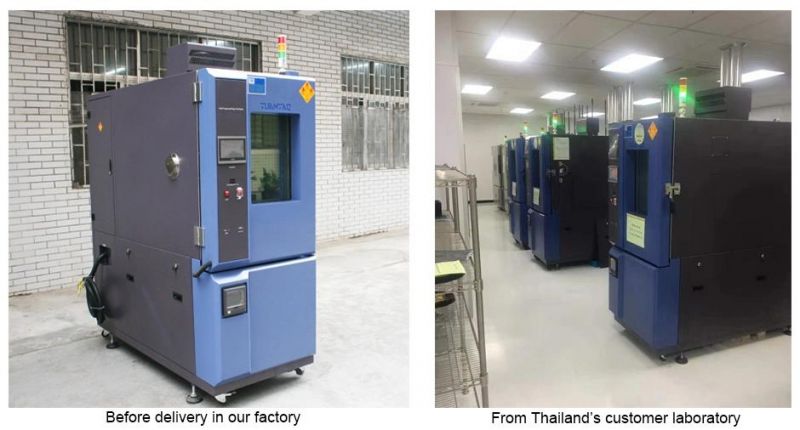

3. Update the latest production status to our customer and prepare full sets of machine operation documents and operation video(if customer need). We also welcome our customer to our factory for check before delivery.

4. After-sale service: Provide 1 years warranty for spare parts.

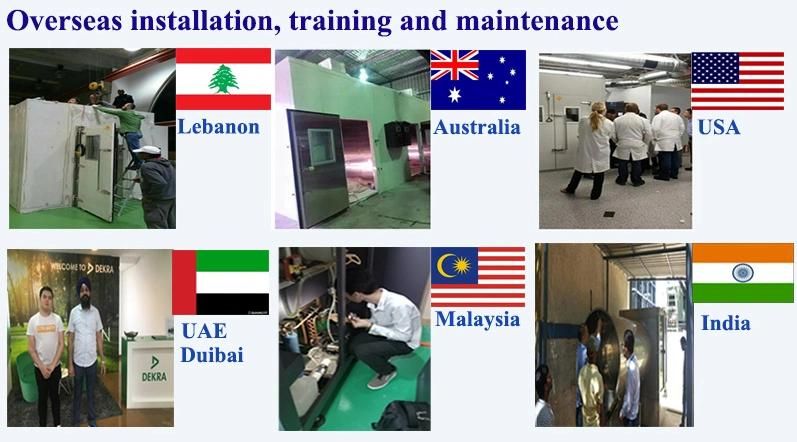

   Overseas technical support and onsite installation is available.

   24 hours standby on skype, wechat, phone,etc.

Climatic LED Temperature Cycling Test Cabinet

8.CE, SGS, ISO 9001:2015 certified manufacturer.
Climatic LED Temperature Cycling Test Cabinet
If you want to know more about the fast change temperature chamber,feel free to contact me any time.

Welcome to inquiry, and thanks for your reading !
