Transformer On-load Switch AC Parameter Tester

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provide lifelong after-sales service
  • Warranty：1 Year
  • Voltage Range：10V ~ 500V
  • Current range：0mA~100mA,0A~10A
  • Voltage current accuracy：0.5 Class
  • Weight：30kg (exclude accessories)

Base Info

  • Model NO.：ZXYZ-J
  • Transport Package：Carton,Wooden Case
  • Specification：With the change of technical scheme
  • Trademark：GDZX
  • Origin：Hubei
  • Production Capacity：500 Pieces,Month

Description

4,Accuracy
 1)Synchronous sampling channels: 6
 2)Sampling data accuracy: 16 digits
 3)Sampling speed: 200 k/s/channel4)Sampling panel caching depth: 8 M byte FIFO
 5)Voltage range: 0V~500V
 6)Current range: 0mA~100mA,0A~10A
 7)Voltage current accuracy: 0.5 5,Insulation
 1)Insulation resistance: power supply input terminal to case >20MΩ
 2)It can withstand 1500V AC voltage (RMS)6,Weight and volume:
  1)Weight: 30kg (exclude accessories)
 2)Dimension: 530*320*600(mm)



      Transformer On-load Switch AC Parameter Tester

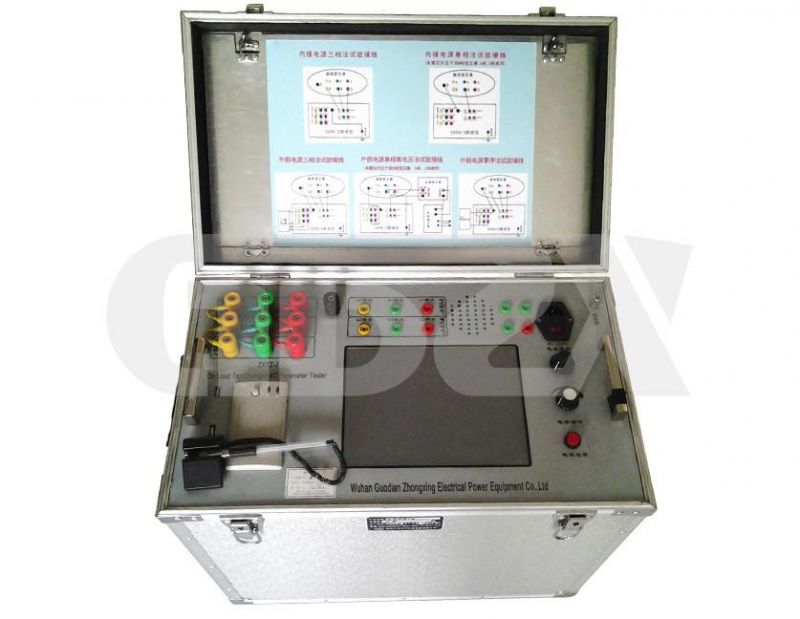

      Device display
      Transformer On-load Switch AC Parameter Tester      Transformer On-load Switch AC Parameter Tester
      About GDZX
      Transformer On-load Switch AC Parameter TesterTransformer On-load Switch AC Parameter TesterTransformer On-load Switch AC Parameter Tester
      Transformer On-load Switch AC Parameter Tester

      Transformer On-load Switch AC Parameter TesterTransformer On-load Switch AC Parameter TesterTransformer On-load Switch AC Parameter Tester
      Shipping and packaging
      Transformer On-load Switch AC Parameter Tester
      Features


      1. AC method to test the true transition waveform ( No Filtering processing), suitable for on site test of parameters like transition waveform, transition time, transient resistance and three-phase synchronization.

      2. It is easy to judge the on load tap changer when use AC test method. If the total transition waveform is continuous then the working condition is good

      3. Can test 10kV~500kV voltage no matter what kind of winding wiring ways.

      4. Built in power supply or external connecting power supply. Built in type can output three phase power with simple wire connection, external power supply can test high voltage test, zero sequence test

      5. High speed sampling: over 200k/s/channel ( usually DC method speed is 10k/s). Large storage capacity, cache depth up to 8M byte FIFO.

      6. With embedded computer and testing software, 10.4" color lCD, touch screen, printer, supporting U disk and USB keyboard and mouse

      7. Meet the request of intelligent power grid operation and management system. The on-site operator can connect the sampler with tablet PC and transmit data via internet

      8. Can transmit and export the data to office PC for further analysis or editing off line

      9. Can work as a digital multimeter

      10. Integrated structure, portable, simple wire connection
