• Model NO.：AT526
• Resistance Measuring Range：0.001m Ohm~33.000K Ohm
• Voltage Measuring Range：0.00001V~120.000V
• Test Speed：30t,S, 10t,S, 1t,S
• Resistance Max Display：33,000
• Voltage Max Display：1,200,000
• Name：Battery Internal Resistance and Voltage Tester
• Transport Package：Carton
• Specification：CE, ISO9001
• Trademark：APPLENT
• Origin：Jiangsu, China
• HS Code：9030332000
• Production Capacity：3000sets,M

 AT526Measurement parametersAC resistance  &  DC voltageAccuracy Resistance: 0.5%, Voltage:0.05%Measuring rangeResistance: 0.001mΩ ~33.000kΩ                                                                           Voltage: 0.00001V~120.000VSignal source AC 1KHZ                                                                                                                                                                                   RangeAutomatic, Manual with 7 ranges Test speed Fast : 30t/s ♣ Medium: 10t/s,  Slow: 1t/s Display resultdirectly reading, ΔABS, Δ%:, Δ,  sorting resultsMax display Resistance:33,000                                                                                        Voltage:1,200,000Correction Short circuit correction for all angeComparatorRHI/RNG/RLO     output VHI/VNG/VLO  output absolute value tolerance,±TOL sorting, percentage tolerance TOL sorting, sequence sorting  Trigger mode Internal, manufal,external and remoteInterfaceRC-232C, Handler (PLC ) Interface, USB interfaceOthers3.5 inch TFT-LCD display,Keypad lock and data hold function, internal memory and U-disk recordpower supply110V AC/240VAC, 50HZ, 15VASizes264* 107* 350mm / 4kgStandard accessoriesATL502: Kelvin test leads   ATL108 RS232 Interface cableOpinion accessoriesATL502A test probe ATL609 test fixture


Our main products are high precision digital LCR meters/ automatic capacitance tester/ Mult-channel battery test meters for AC resistance & DC voltage/ Battery internal resistance meters/ internal resistance online test meters/ battery capacity test meters/ Precision DC resistance meters/ leakage current & insulatio resistance meters / multi-channel temperature measuring meters etc.

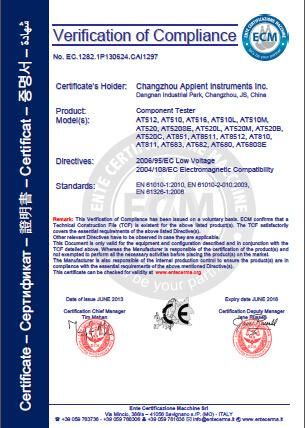

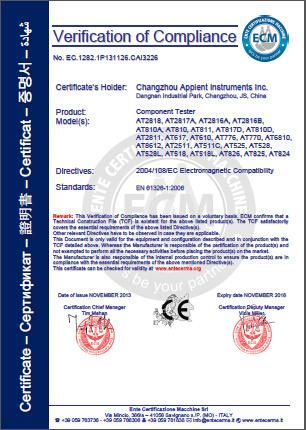

All our products are CE certificted.

Welcome contact us for more details .
