• Model NO.：BE-8102
• Electric Life：Resistive Load 50,000 Times
• Temperature Fluctuation：±1ºC
• Temperature Deviation：±2ºC
• Inner Chamber Dimension：W600xd500X H600mm
• Transport Package：Each Set Protected with Resin Fiber and PP Film, T
• Specification：Test Space600x600x600(customizable)
• Trademark：DGBELL
• Origin：Guangdong China
• HS Code：8514109000
• Production Capacity：100set ,Month

Basic Info.

Model NO. BE-8102 Electric Life Resistive Load 50,000 Times Temperature Fluctuation ±1ºC Temperature Deviation ±2ºC Inner Chamber Dimension W600xd500X H600mm Transport Package Each Set Protected with Resin Fiber and PP Film, T Specification Test Space600x600x600(customizable) Trademark DGBELL Origin Guangdong China HS Code 8514109000 Production Capacity 100set /Month

Product Description

Temperature Control Short Circuit Test Equipment

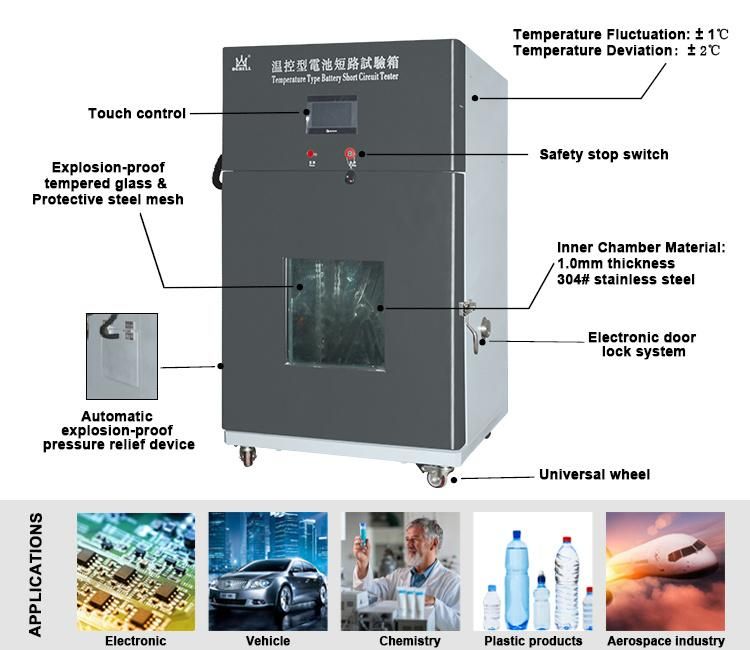

Product show

Application

1. Battery large current short-circuit machine is designed to comply with the standard;
2. According to the short-circuit test requirement, the short-circuit must be less than 5 mΩ to achieve maximum current;
3. Load-bearing capacity must be designed in the electrical system for short-circuit system; Thus, the Bell's team selects industrial DC magnetic contact with the full copper terminal and internal copper current conduction, and internal active bead axial fan is mounted to cool to ensure the test system safer and reduce the test machine power consumption and enable the test data inaccuracy.
4. Test judgment standards: no flame or explosion after battery short-circuit test.

Test requirements

• IEC 62133-2017
• UL 1642
• UN 38.3



Parameters


Model	BE-8102
Structure	All-in-one structure, the door uses explosion-proof lock and explosion-proof chain
Max. short-circuit current	1000A
Internal Resistance	80±20 mΩ (Load-current 400A)
Remote Control Available Distance	7 meters without solid barrier
Controlling Mode	PLC touch type (7 inch) + remote control
Mechanical Life	300 thousand times
Electric Life	Resistive load 50,000 times
Temperature Range	Normal temperature to 80°C or 0-80°C (Optional)
Temperature Fluctuation	±1ºC
Temperature Deviation	±2ºC
Inner Chamber Dimension	W600  X D500  X H600mm
Inner Chamber Material	1.0mm thickness 304# stainless steel
External Chamber Dimension	W940XD780XH1620 mm
External Chamber Material	Cold-rolled sheet paint with1.5mm thickness, total thickness together with inner chamber is 100mm)
Observation Window	390 X 360mm (20mm thick explosion-proof tempered glass) and protective steel mesh
Power Supply	AC220V / 3.0KW
Data Output	Current and voltage temperature can be recorded with the interface display. The test data can be directly output by USB flash disk
Security System	Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch
Options	Temperature acquisition, voltage acquisition system, video monitoring system



Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.

15+ years experience in test chambers manufacturing, High performance for your projects.

With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.

FAQ

Q1 : Can you customize the product?
   A: Yes, we can customize any products according to requirements. Hot selling lab electronic
      temperature humidity cabinet/Environmental climate test chamber/Car Battery Safety Test Chamber also can            be customized.

Q2 : How to choose the most suitable products?
   A: Our professional team will give you the best suggestion, just be patiently to tell us the information
       about the parameters you require.

Q3 : Can you arrange installations and commissioning in our lab?
   A:  Firstly, for standard chamber we had 3-5 days commissioning before shipping,
        you just need link power in your lab, then you can start to operate.
        Secondly, we had detailed operation manual with chamber , any problems you can find and solve in it.
        Thirdly, some customized chambers we should install and teach your team to operate .
