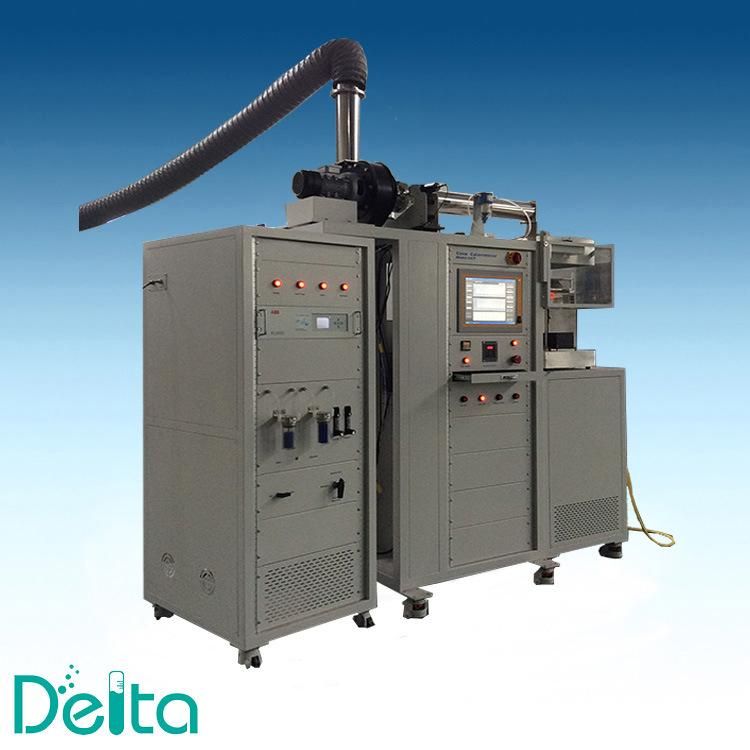

ISO5660 ASTM E1354 BS476-15 Heat Release Rate Hrr Test Machine
Delta Technology (Chongqing) Co., Ltd.- After-sales Service:Online Training for Operation and Installation
- Warranty:12 Months
- Max Diameter of Workpiece:Heat Release Rate Hrr Test Machine
- Mass Scope of Workpiece:<900kg
- Type:Material Testing Machine
- Maxcapacity:Na
Base Info
- Model NO.:CCT
- Accuracy Grade:0.5
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
- Control:Computer Control
- Weight:100-500Kg
- Power Source:AC220V
- Oil Cylinder Position:Heat Release Rate Hrr Test Machine
- Item Name:Heat Release Rate Hrr Test Machine
- Application:Test Heat Release, Mass Loss of Building Material
- Reference Standards:ISO5660, ASTM E1354, BS476-15
- Application Field:Building Material, Railway, Marine, Cable, etc.
- Features:International Standard Heat Release Rate Hrr Test
- Conical Heater:5000 W, Output 100 Kw,M2
- Temperature Controller:3 Type K Thermocouples and a 3-Term (Pid)
- Operation Method:Through Computer, PLC Control
- Working Gas:Compressed Air
- Calibration Gas:CH4, N2, CO2,Co Mixed Gas
- Usage:for Cone Calorimeter Test, Used in Sbi
- PLC:Omron Brand
- Gas Feed Unit:ABB Brand
- Transport Package:Heat Release Rate Hrr Test Machine in Veneer Case
- Specification:1800mm (W) x 900mm x (H) x 2600mm (D)
- Trademark:DELTA
- Origin:China
- HS Code:9031809090
- Production Capacity:10 Sets,Month
Description
Overview
Product DescriptionProduct Parameters
Application Field:
Features:
Measured properties:
- Heat release rate;
- Flue gas flow rate;
- C coefficient;
- Time to ignition;
- Extinction time;
- Total oxygen consumption;
- Smoke release rate;
- Mass loss rate;
- Effective heat of combustion;
- Rates of release of combustion gas (e.g. CO and CO2)
No. Item Name CCT ISO5660 ASTM E1354 BS476-15 Heat Release Rate HRR Test Machine 1 Dimension 1800mm (W) x 900mm x (H) x 2600mm (D) 2 Weight 350kg 3 Power supply 220V, 50Hz 4 Ambient temperature 10 ~ 35 Centigrade 5 Working gas Compressed air 6 Calibration gas CH4, N2, CO2/CO mixed gas
Application Field:
- Building products;
- Railway rolling-stock applications;
- Maritime applications;
- Electric cables;
- Etc;
Features:
- Integrated body and 19" analysis rack, 15" touch screen panel type PC for the whole control and automatic testing
- Conical Heater - is wound in the form of a truncated cone, rated 5000 W at 230 V with a heat output of 100 kW/m2.
- Facility for testing horizontally or vertically orientated specimens
- Temperature control by the use of a 3 type K thermocouples and a 3-term (PID) temperature controller.
- Auto Split Shutter automatically opened to transmit radiation to the sample, Automatic Spark Igniter to facilitate measurement of ignition time
- Specimen Holders - for specimens 100mm x 100mm up to 50mm thick, in the horizontal and vertical orientation.
- Load Cell - mass measurements are conducted via a strain gauge load cell with an accuracy of 0.1g. Fitted with a quick electronic tare facility and mechanical stops to avoid movement damage, give stable results and long life.
- Exhaust System - manufactured from stainless steel for long life. This comprises, hood, gas sampling ring probe, exhaust fan (with adjustable flow controls from 0-50g/s, at a resolution of at least 0.1g/s) and an orifice plate flow measurement (thermocouple and differential pressure transducer). Normal operation is at a nominal 24 l/s.
- ABB Gas feed unit, Model SCC-S, including 1 gas path, condensate monitor, pump and flow controller with needle valve Peltier cooler and condensate pump. SCC-S can remove water automatically.
- ABB EL3020-Uras26+ Magnos206, CO 0-1%, CO2 0-10%, automatic calibration of CO & CO2, does not require the use of mixture of CO&CO2 gas. O2 0-25%, Only once a month is used to calibrate the zero point with the nitrogen,
- Smoke Obscuration - measured with a laser system, using photodiodes, and a 0.5 mW Helium Neon laser, with main and reference (compensating) photo detectors. Supplied with alignment cradle and 0.3, 0.8 neutral density filters for calibration.
- Medtherm Heat Flux Meter - for setting the irradiance level at the surface of the specimens, the range from 0-100KW/m2.
- Provide the Self circulation cooling water to cool heat flux meter, without External tap water.
- Calibration Burner - to calibrate the rate of heat release measured by the apparatus using methane of 99.5% purity.
- Methane MFC, to control the flow rate of Methane automatically.
- OMRON PLC to control all movement such as Split Shutter, Spark Igniter etc.
- DAQ(Data Acquisition) Program controllable with the touch screen panel PC
- Provide 10units of PMMA samples for comparison testing.
