High Stability Environmental Temperature Humidity Vibration Table Equipment
Ai Si Li (China) Test Equipment Co., Limited- Type：Vibration Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
Base Info
- Model NO.：THV-Series
- Control：Computer Control
- Weight：1000-2000Kg
- Power Source：AC380V
- Temperature Range：-40~150c
- Vibration Direction：Vertical Horizontal Vibration
- Max. Speed：2.0m,S
- Max. Acceleration：1000m,S2 ( Non Load)
- Temperature Control Accuracy：+,-0.5 Degree
- Humidity Range：20%~98%R.H.
- Cooling Method：Air Cooling
- Application：Auto Parts
- Transport Package：Wooden Case
- Specification：CE Certified
- Trademark：ASLi
- Origin：Guangdong China
- HS Code：8514109000
- Production Capacity：100 Sets, Year
Description
Choose proper vibration test bench according to customer's test condition, the technical parameters please take Electrodynamics Type Vibration Tester's parameters in this catalog for reference
2. Original refrigerating compressor unit and its main accessories are internaltional famous brand;
3.LCD color touch screen controller, capable of automatic control of temperature humidity programs;
4. RS-232 communication. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure that in addition to good cool,
5. Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration
For Vibration Shaker:

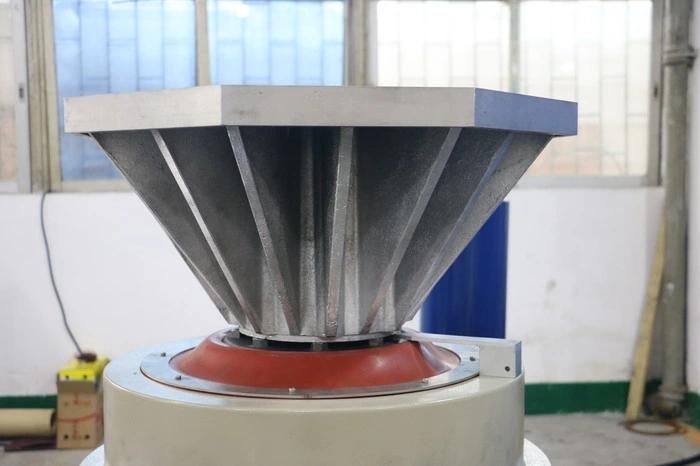

For Vertical Expander:
For Horizontal Expander:
Detailed Images
Our Company We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Temperature Humidity Vibration Combined Tester for Auto Parts Comprehensive Test is our star products , and we had obtained the CE certification for this machine . FAQQ1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the fixtures.
If you need more information about high stability environmental temperature humidity vibration equipment, please don't hesitate to contact me.

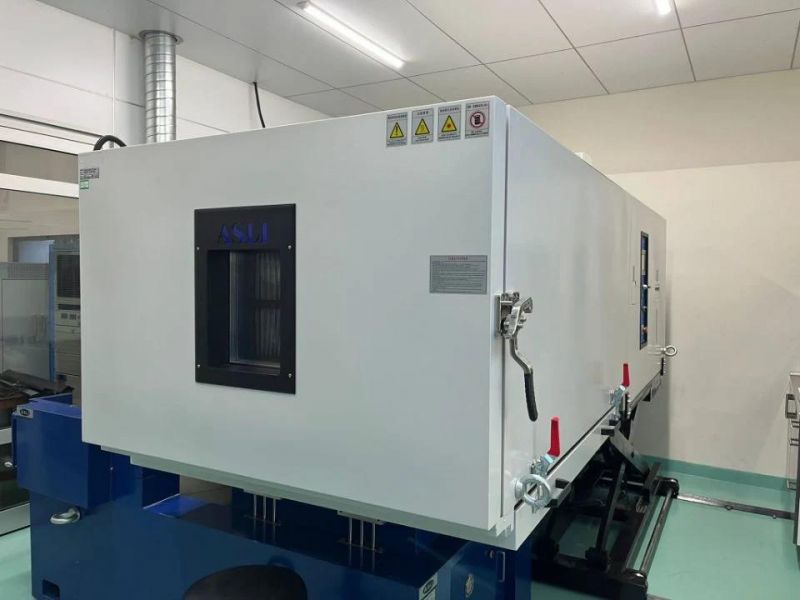

Temperature Humidity Vibration Combined Features:
1. A combined structure of test chamber and refrigerating system boasting compact and graceful design; independent console.2. Original refrigerating compressor unit and its main accessories are internaltional famous brand;
3.LCD color touch screen controller, capable of automatic control of temperature humidity programs;
4. RS-232 communication. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure that in addition to good cool,
5. Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration
For Vibration Shaker:
| Model | ES-3 | ES-3a | ES-6 | ES-6a | ES-10 | ES-20 | ES-30 | ES-40 | ES-50 |
| Rated Sine Force (N) | 3000 | 3000 | 6000 | 6000 | 10000 | 20000 | 30000 | 40000 | 50000 |
| Rated Random | 3000 | 3000 | 6000 | 6000 | 10000 | 20000 | 30000 | 40000 | 50000 |
| Force (N) | 3-3500 | 3-3500 | 3-3500 | 3-3500 | 3-3000 | 3-3000 | 3-2800 | 3-2800 | 3-2700 |
| Frequency Range (Hz) | 1000 | 400 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Rated Acceleration (m/s2) | 1.6 | 1.6 | 1.6 | 1.6 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Rated Speed (m/s) | 25 | 40 | 25 | 51 | 51 | 51 | 5l | 51 | 51 |
| Rated displacement (p-p) mm | 100 | 120 | 180 | 250 | 270 | 300 | 450 | 500 | 750 |
| Max. Loading (Kg) | 3.5 | 9 | 6.5 | 12 | 14 | 30 | 40 | 50 | 50 |
| moving coil (Kg) | Φ150 | Φ230 | Φ230 | Φ230 | Φ240 | Φ320 | Φ450 | Φ450 | Φ450 |

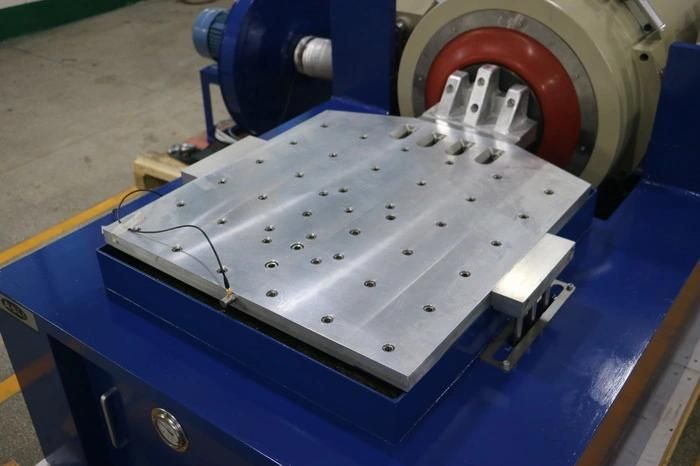

For Horizontal Expander:
Detailed ImagesOur Company We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Temperature Humidity Vibration Combined Tester for Auto Parts Comprehensive Test is our star products , and we had obtained the CE certification for this machine . FAQQ1. What is your terms of packing?A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the fixtures.
If you need more information about high stability environmental temperature humidity vibration equipment, please don't hesitate to contact me.
