• Model NO.：PCLC-901D
• Low Voltage Impulse Voltage：32V
• Max.Resolution：0.4m
• Locating Range：100km
• Communication Interface：USB,Bluetooth (Optional)
• Power Supply：Input AC220V,50Hz,Current 1A,Charge
• Dim.：274*218*81mm
• Weight：3.5kgs
• Transport Package：Export Standard Carton with Strong Pallet
• Specification：CE, ROHS
• Trademark：Grewin
• Origin：Tianjin
• HS Code：85045000
• Production Capacity：100 Per Month

Basic Info.

Model NO. PCLC-901D Low Voltage Impulse Voltage 32V Max.Resolution 0.4m Locating Range 100km Communication Interface USB,Bluetooth (Optional) Power Supply Input AC220V,50Hz,Current 1A,Charge Dim. 274*218*81mm Weight 3.5kgs Transport Package Export Standard Carton with Strong Pallet Specification CE, ROHS Trademark Grewin Origin Tianjin HS Code 85045000 Production Capacity 100 Per Month

Product Description

GENERAL DESCRIPTION

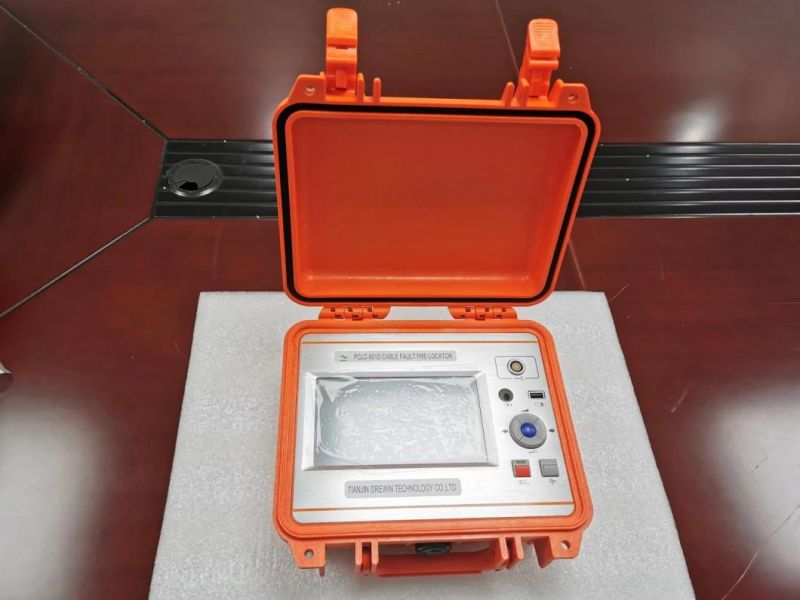

GENERAL :The PCLC-901D Power Cable Fault Pre-locator is an easy operation device used for distance locating . It's easy to operate,support both touch screen/button operation and with friendly interface.

PCLC-901D can be used alone under the low voltage impulse mode.

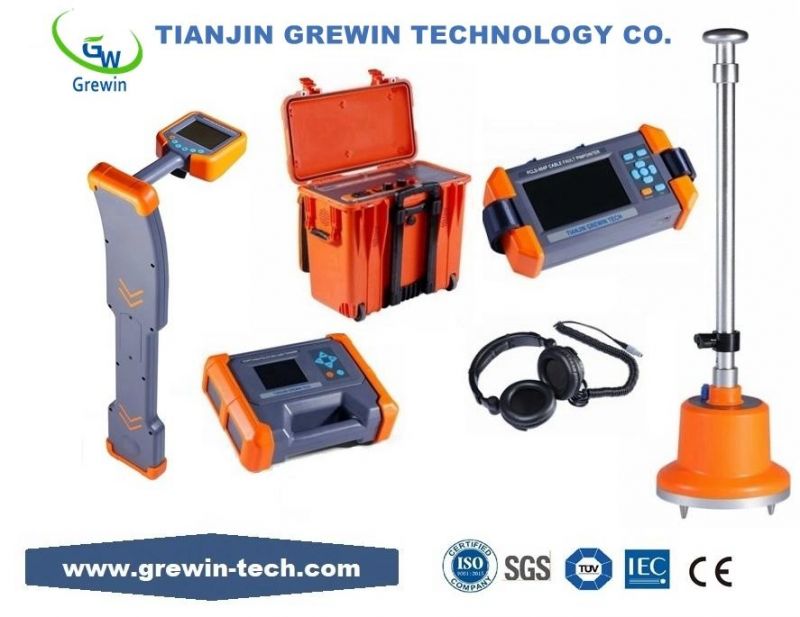

Under the mode of impulse current,PCLC-901D needs to work with HVSG-500GX high voltage generator items.Under the multiple impulse mode,PCLC-901D also need PCLC-900C coupler.After distance locating,user could use PCLD-901P items for fault pinpointing. And these products can be combined into a set of high performance and innovative cable fault testing system.

FUNCTION FEATHER:Multiple distance locating method:-Low current impulse method: apply to the locating of the low resistance fault. Short circuit fault, open circuit fault. It also can be used in the measurement of the cable length, the intermediate joints, T joints, and cable termination joint. This method also can be used to correct the wave velocity.
-Impulse current method: apply to the high resistance fault, breakdown fault. Use the current coupler to gather signal from the earth wire
-Multiple impulse method: improvement of the SIM method
200MHz real-time sampling-Advance tech.Upgrading for SIM method
-Max. 0.4m measurement resolution,PCLC-901D has small blind zone and is special for the short cable and nearly-terminal fault cable
Touch screen and press key operation-Touch operating screen with smart gesture operation
-Support cursor drag-drop function and double-click function,easy to locate
-Simple function menus with high performance.
Big color LED screen, friendly interface-Simple function menus with high performance
7" LED screen,160°viewing angle,bright with 750cd/m2 to view under sunshine-PIP copy(pic. temporary storage). There'll be a main window and three temporary storage windows could check three waveform together.
Waveform storage and PC communication-Special software management for software upgrade, backup and restore in device.
-Waveform storage and communication with computer.
-Internal storage of waveform.
-Optional mini printer for waveform printing
-Support connection with PC or laptop
Power management-Back light weakens if no operation in 2 min and power off in 10 min. if no operation.
-Built-in Polymer Lithium-ion battery.
-Working time could reach 7 hours for each use.


SPECIFICATION:

Locating methods:	Low voltage impulse method Impulse current method Multiple impulse method
Sampling frequency:	200MHz
Gain range:	0-70dB
Low voltage impulse voltage:	32V
Max.resolution:	0.4m
Locating range:	100km
Dead zone:	2m
Battery:	L-ion battery rechargeable batteries,7.4 V endurance time over 7 hours
Communication interface:	USB,bluetooth (optional)
Power supply:	Input AC220V,50Hz,current 1A,charge for 6 hours
Dim.:	274×218×81mm
Weight:	3.5kgs
Operating Temperature:	-10ºC-40ºC
Humidity:	5-90%RH
Elevation:	<4500m

Operation example:

Main menu	Submenu
Range	200m,400m,800m,1.5km,3km,6km,12km,25km,50km,100km
VOP	XLPE cable,oil paper cable,plastic cable,VOP+,VOP-
Scale	Global,zoom in,zoom out
Copy	1/2/3 zone copy,1/2/3 zone compare
Staff	Scale switch,new staff,contact setting,fault setting,full length setting,contact delete
Docu.	Local storage,USB disk storage,main unit to USB,docu.recall
Operate	system setting,screen correct

Testing range is the device measuring distance.
For TDRL or ARM(multiple impulse method):
For the initial testing, the range should be hundreds meters longer than the cable complete length, for example,if the cable is 1400m, it's suggested to choose 3000m but no 1500m. If the suspect point is close, it is suggest to reduce the testing range.
For Impulse current mode:
When initial testing,the range should be triple of the cable length. For example, if the cable is 200m, it is suggested to choose 800m.If the suspect point is close, it is suggest to reduce the testing range.
For testing range chosen:
Choose Range menu to choose different range, total 10 levels from min. 200m to max. 100km
