Three Phase AC/DC Multi-function Meter With Transmitter Field Calibrator

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • AC Phase voltage output range：10V-460V
  • AC Phase voltage Resolution：6 effective digits
  • AC Phase voltage output power：rated 25 VA,phase
  • AC current output power：rated output 20 VA,Phase

Base Info

  • Model NO.：ZX5080
  • AC current output Range：1mA~24A
  • Power output Stability：better than 0.02% RG,1 min
  • Phase angle Resolution：0.001degree
  • Frequency Adjusting range：40 Hz -70 Hz
  • Harmonic：Output 2~31th harmonic.
  • Transport Package：Wooden Case or Carton
  • Specification：Universal Testing Machine
  • Trademark：GDZX
  • Origin：China
  • Production Capacity：1200sets,Year

Description

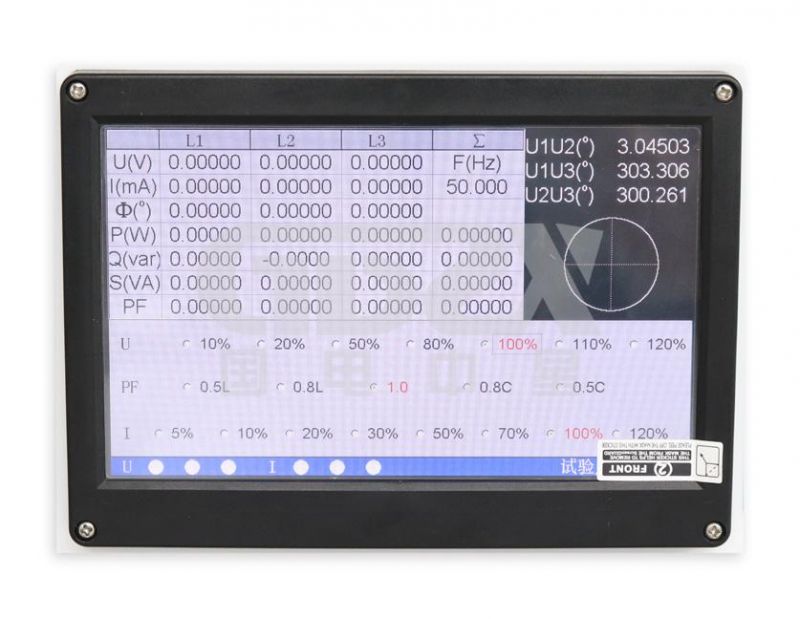

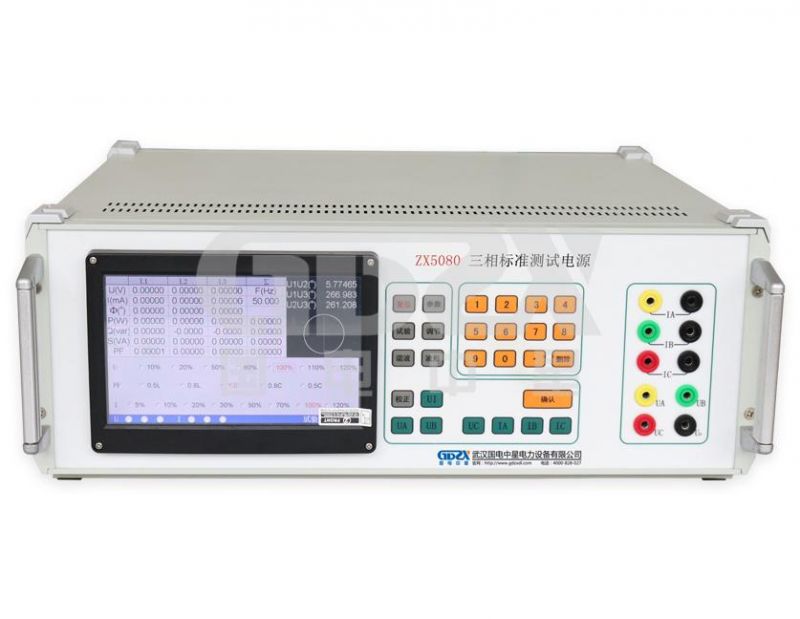

     ZX5080 Three-phase AC standard source adopts meter source integrated structure, full digital closed-loop standard source technology, embedded system, large screen TFT color LCD, CPLD chip and a series of advanced devices such as high-precision A/D and D/A. It has small volume and light weight. It can be widely used in electric energy measurement industry, electrical laboratory and other relevant departments, and is easy to carry to the site.    Three Phase AC/DC Multi-function Meter With Transmitter Field Calibrator




Three Phase AC/DC Multi-function Meter With Transmitter Field Calibrator

                Technical parameters Source Output
                 AC Phase voltage output
                1. Regulation fineness: 0.01% RG
                2. Resolution: 6 effective digits
                3. Accuracy: better than 0.1% RG
                4. Stability: better than 0.02%RG/ 2 min
                5. Distortion degree: <0.2% (non capacitive load)
                6. Output power: rated 25 VA/phase
                7. Full load regulation rate: ≤0.01% RG
                8. Range: 10V - 460V
                9. Four gears: 57.7 V, 100 V, 220 V, 380 V, switch automatically
                10. Long-term stability: ± 60 PPM/year
                AC current output
                1. Adjust fineness: 0.01% RG
                2. Accuracy: better than 0.1% RG
                3. Resolution: 6 effective digits
                4. Stability: <0.02% RG / 1 min
                5. Distortion degree:< 0.5%
                6. Output power: rated output 20 VA/Phase
                7. Full load regulation rate: 0.01% RG
                8. Range: 1mA~24A
                9. Gears: 0.2A, 1A, 5A, 20A, switch automatically
                Power output
                1. Accuracy: better than 0.1% RG
                2. Stability: better than 0.02% RG / 1 min
                3. Resolution: 6 effective digits ( active power, reactive power, apparent power)
                Power factor
                1. Adjusting range:-1 ~ 0 ~ + 1
                2. Resolution: 0.00001;
                3. Accuracy: 0.001
                Phase angle
                1. regulation range: 0 ~ 359.99°
                2. Resolution: 0.001°
                3. Accuracy: 0.05°
                Frequency
                1. Adjusting range: 40 Hz ~ 70 Hz
                2. Resolution: 0.001 Hz
                3. Accuracy: 0.005 Hz

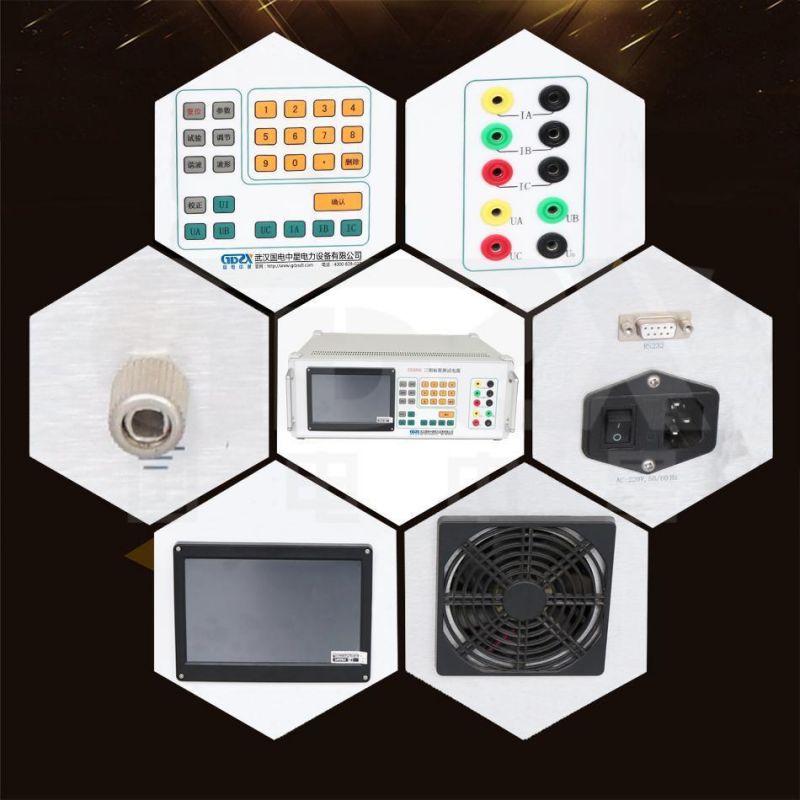

                HarmonicOutput 2~31th harmonic. Product pictures

                Three Phase AC/DC Multi-function Meter With Transmitter Field CalibratorThree Phase AC/DC Multi-function Meter With Transmitter Field Calibrator



                Three Phase AC/DC Multi-function Meter With Transmitter Field Calibrator
                Company introduction

                    Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

                Three Phase AC/DC Multi-function Meter With Transmitter Field Calibrator





                Three Phase AC/DC Multi-function Meter With Transmitter Field Calibrator





                Service and Warranty



                Service

                * Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
                * Ensure customer get the detailed information about the product in hand.
                * Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
                * Welcome customers visit.

                * The contract and the technical agreement to sign by both parties.
                * Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
                * Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
                * Move quick and efficient, professional on delivery, installation, debugging, training and others.                 Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.Three Phase AC/DC Multi-function Meter With Transmitter Field Calibrator

                PACKING AND SHIPPING

                (1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.

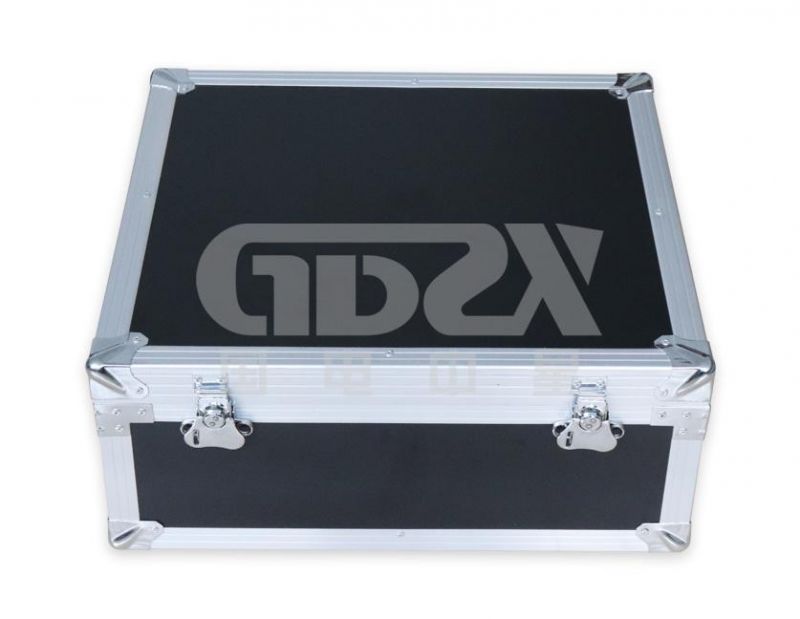

                (2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.Three Phase AC/DC Multi-function Meter With Transmitter Field Calibrator  Test casesThree Phase AC/DC Multi-function Meter With Transmitter Field Calibrator  Three Phase AC/DC Multi-function Meter With Transmitter Field Calibrator Three Phase AC/DC Multi-function Meter With Transmitter Field Calibrator


                Features

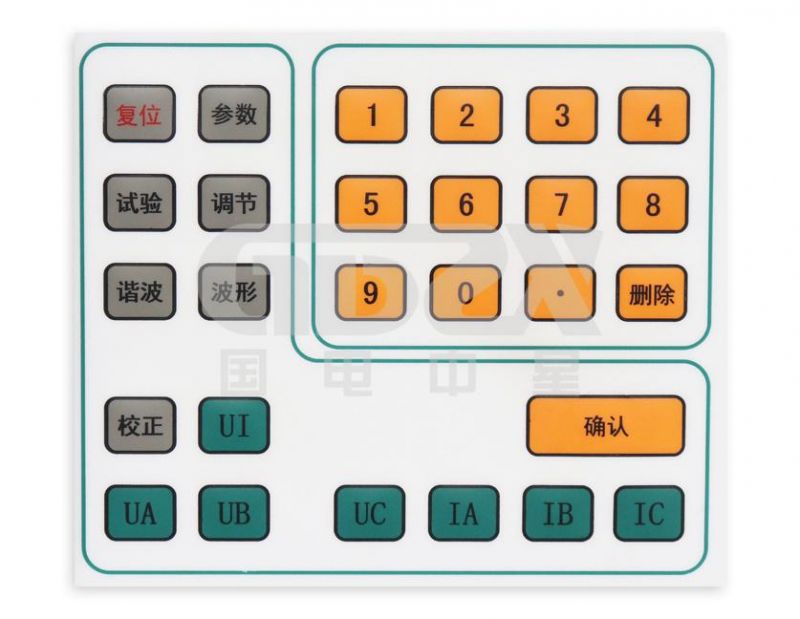

                1.  Design with touch panel and mask button, massive information to see and simple to use

                2.  built-in standard energy meter for digital closed loop feedback, U, I, Φ, F, W, VAR, VA, PF all for reference

                3.  Perfect over circuit, over voltage. short circuit, open circuit, over heat, over load protection

                4.  Independent control on Three phase voltage current circuits, every phase voltage current parameters can be regulated.

                5.  Auto shift range, can freely preset rated value

                6.  Multiple choose of voltage, current, phase regulation test point

                7.  With R232 communication interface for PC control and software upgrade

                8.  Two accuracy levels 0.05 or 0.01 for options
