Automatic Capacitance And Inductance Tester With Short Circuit Protection Function
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Rated output：2V,20V,500VA
- Current range：0-1000A
- Inductance range：0.1mH~5mH, 5mH~50H
- Capacity range：5~20000kV
Base Info
- Model NO.：ZX-CHA
- Rated voltage：power frequency 220V+,-10%
- Rated frequency：50Hz
- Ambient temperature：-10~+ 50 Centigrade
- Dimensions and weight：370*260*220mm,12kg
- Transport Package：Carton
- Specification：Customized
- Trademark：GDZX
- Origin：China
- Production Capacity：1500PCS,Year
Description

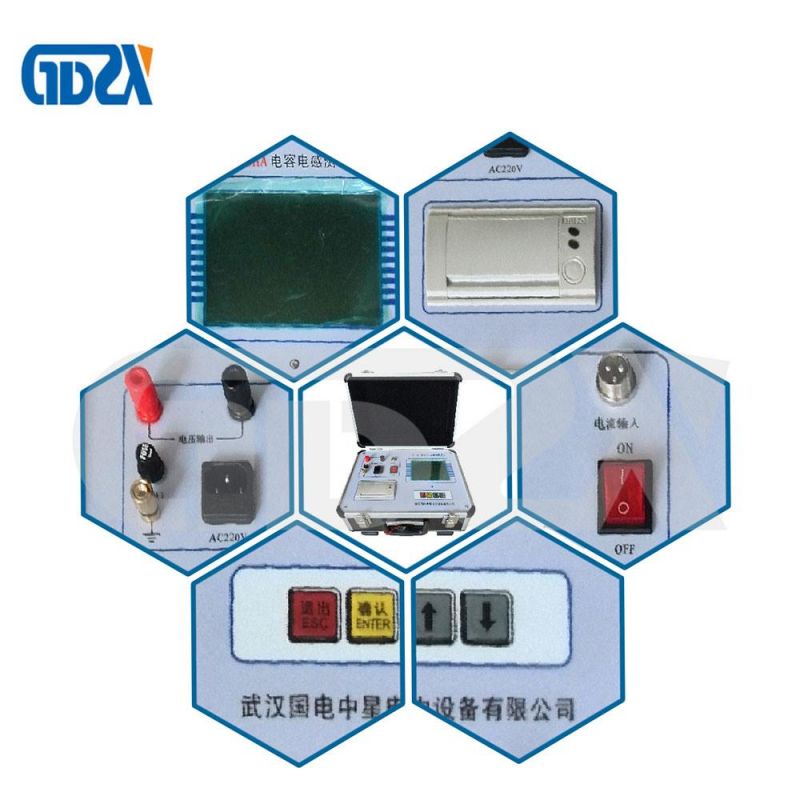

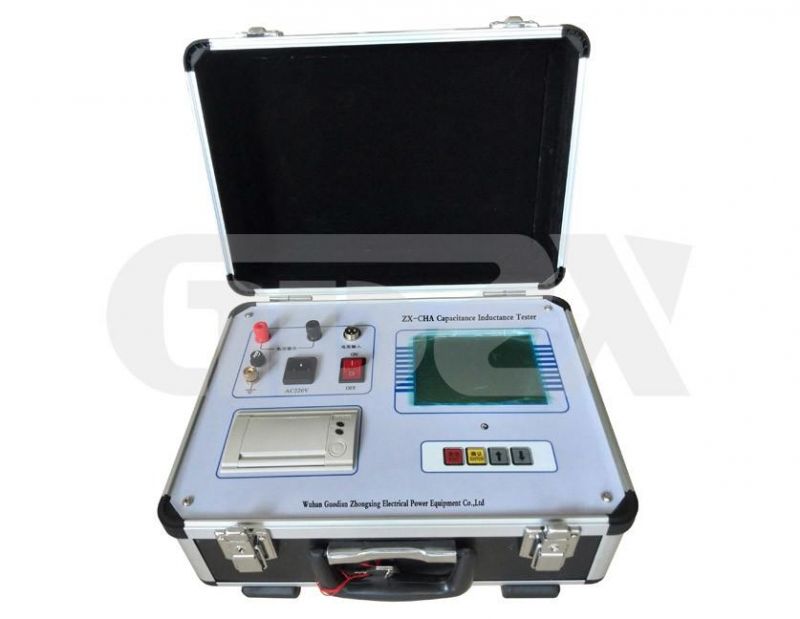

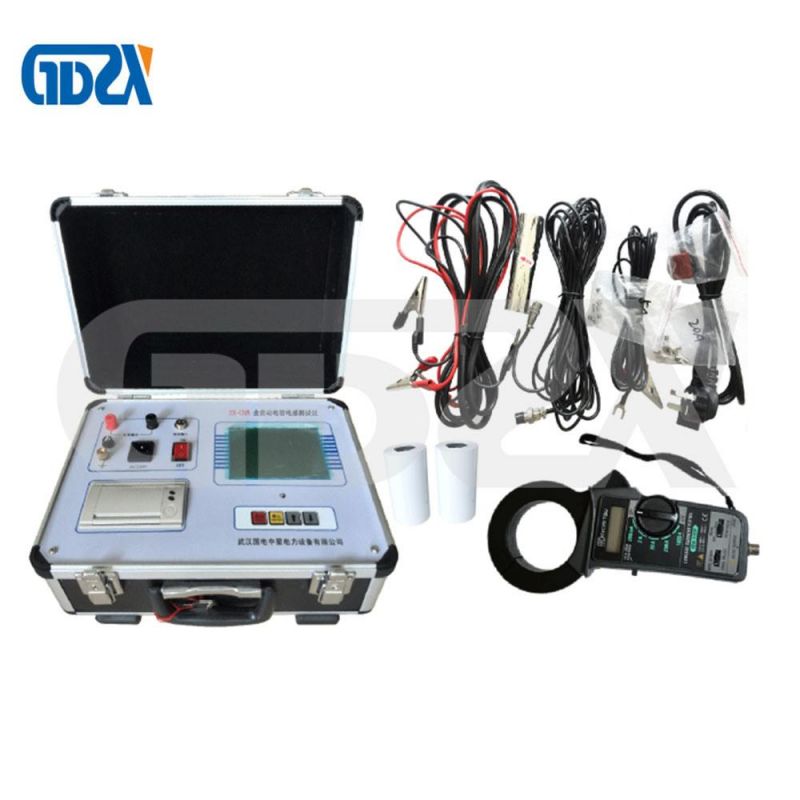

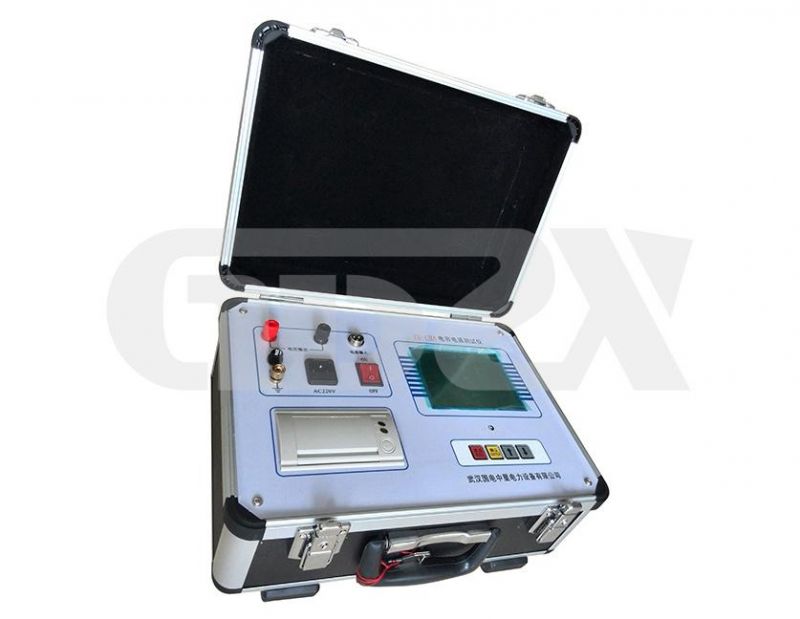

ZX-CHA capacitance and inductance tester (with imported clamp) adopts bridge circuit structure, with standard capacitor and tested capacitor as two arms of bridge circuit. When the capacitance value of the capacitor is measured, the test voltage is applied to the standard capacitor and the tested capacitor at the same time. The processor collects the current signal flowing through the sensor and processes to obtain the capacitance value of the tested capacitor.
1) Capacitance measurement a. Measurable capacitance range: 0.1μF~3,300μF
b. Range of measurable capacity: 5~20,000kvar
c. Measurement accuracy: ± (1.0% reading + 0.02μF)
d. Resolution: 0.001μF 2) Current measurement a. Current measurement range: 0~199.9mA; 0~1.999A; 0~19.99A; 0~199.9A0~1000A
b. Measurement accuracy: ± (3.0% reading + 0.05A)
c. Resolution: 0.01A 3) Inductance measurement a. Inductance measurement range: small inductance 0.1mH~5mH; Large inductance mode 5mH~50H
b. Inductance measurement range: 50mΩ ~ 20KΩ
c.Measurement accuracy: ± (3.0% reading + 0.05mH)
d. Resolution: 0.01mH 4) Resistance measurement range:
a. Resistance measurement range: small resistance 50mΩ~1Ω; Large resistance mode 1Ω~20KΩ
b. Measurement accuracy: ± (3.0% reading + 0.05Ω)
c. Resolution: 0.01 Ω 2. Working power 1) Rated voltage: power frequency 220V ± 10%
2) Rated frequency: 50Hz;
3) Rated output: 2V / 20V / 500VA 3. Working conditions: 1) Ambient temperature: -10 ºC~+ 50 ºC
2) Relative humidity: ≤90% 4. Printing method: LCD display with English characters;
Panel-type high-speed printer 5. Dimensions and weight: 370*260*220mm/12kg
Test cases
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.
Features
1. The instrument can measure the single capacitance of a group of parallel capacitors without disconnecting the wire (both single-phase capacitance and three-phase capacitance can be measured). At the same time, the instrument can also measure the inductance of various reactors, and can also be used as the power frequency current tester is used, one machine and three uses, to meet a variety of uses on site.
2. During measurement, the instrument can display the measured capacitance or inductance value, as well as the measured voltage, current, capacity, power, frequency, impedance, phase angle and other data, so as to better analyze the quality of the test sample.
3. The instrument adopts a 240 × 128 large screen with backlit LCD display, which can be clearly observed during the day and night, with English menu prompts and easy operation.
4. The instrument has a built-in large-capacity non-volatile memory, which can store 50 sets of measurement data.
5. The instrument has a built-in high-precision real-time clock function, which can calibrate the date and time.
6. The instrument comes with a high-speed micro thermal printer, which can print measurement and historical data.
7. Instrument test power supply over-current protection function, short circuit of power supply output will not damage the instrument.
8. The instrument also has an automatic measurement function, which can automatically identify the type of sample (capacitance, inductance, resistance).
Technical parameters
b. Range of measurable capacity: 5~20,000kvar
c. Measurement accuracy: ± (1.0% reading + 0.02μF)
d. Resolution: 0.001μF
b. Measurement accuracy: ± (3.0% reading + 0.05A)
c. Resolution: 0.01A
b. Inductance measurement range: 50mΩ ~ 20KΩ
c.Measurement accuracy: ± (3.0% reading + 0.05mH)
d. Resolution: 0.01mH
b. Measurement accuracy: ± (3.0% reading + 0.05Ω)
c. Resolution: 0.01 Ω
2) Rated frequency: 50Hz;
3) Rated output: 2V / 20V / 500VA
2) Relative humidity: ≤90%
Panel-type high-speed printer
