• Model NO.：TPV-8
• Testing Range：Kinematic: 0.5~20000mm2,S Kinetic:0.3~40000MPa.S
• Temperature Controller Precision：±0.1ºC
• Thermostatic Bath：300*300mm, Double Layer
• Power Supply：220V (Customizable)
• Transport Package：Standard Export Wooden Case
• Specification：ISO,CE
• Trademark：TOP
• Origin：Chongqing, China
• HS Code：9027809900
• Production Capacity：100 Sets Per,Mouth

Basic Info.

Model NO. TPV-8 Testing Range Kinematic: 0.5~20000mm2/S Kinetic:0.3~40000MPa.S Temperature Controller Precision ±0.1ºC Thermostatic Bath 300*300mm, Double Layer Power Supply 220V (Customizable) Transport Package Standard Export Wooden Case Specification ISO/CE Trademark TOP Origin Chongqing, China HS Code 9027809900 Production Capacity 100 Sets Per/Mouth

Product Description

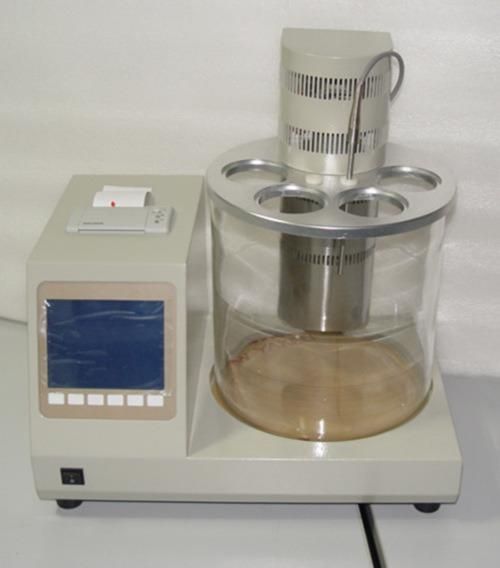

ASTM D445 Kinematic viscosity testing equipment/ viscosity analyzer/ oil viscosity index tester


 Application:

Viscosity analyzer TPV-8 is designed as per requirements of GB/T265-88, ASTM D445 etc. You can place four samples and test at the same time. Further more, it can be used for other tests as a high viscosity thermostated water bath.

Features:

1. Thermostated water bath (glass container). The outer layer is surrounded by plexiglass insulation cover; inside temperature is well-distributed, with good temperature control.

2. Internal parts including heater, diversion tubes ect in bath are made of stainless steel, corrosion-resistant, with long working life. With durable ring fluorescent lighting; good transparency; easy to observe.

3. Adopt high precision digital temperature controller to control the temperature in the bath. Actuator uses Solid State Relay (SSR) with accurate temperature control; no contracts, no noisy, no sparks, fast, long working life etc.

4. Capillary analyzer is adopted three point vertical type, easy to operate, portable and reliable.

Technical Parameters

Standard	GB265-88 ,GB1814,ASTM D445,IP71 ect.
Capillary Viscosity Analyzer	SH/T0173-92; JJG155
Display	High precision digital temperature controller
Temperature range	-20~150ºC(can be adjusted)
Test range	Test range for Kinematic Viscosity: 0.5~20000mm2/s; Test range for Dynamic viscosity: 0.3~40000mPa.s
Temperature controller precision	±0.1ºC
Timing precision	±0.1S
Timing range	0.1S-999.9S
Thermostatic bath	300×300mm, double layer
Temperature tester element	Imported precision platinum resistance

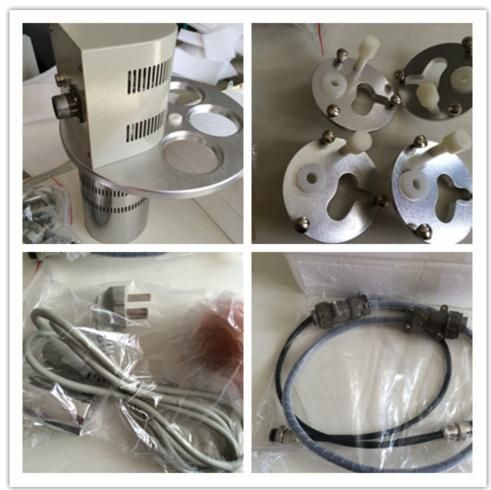

Deatiled images:




Related Certificates:

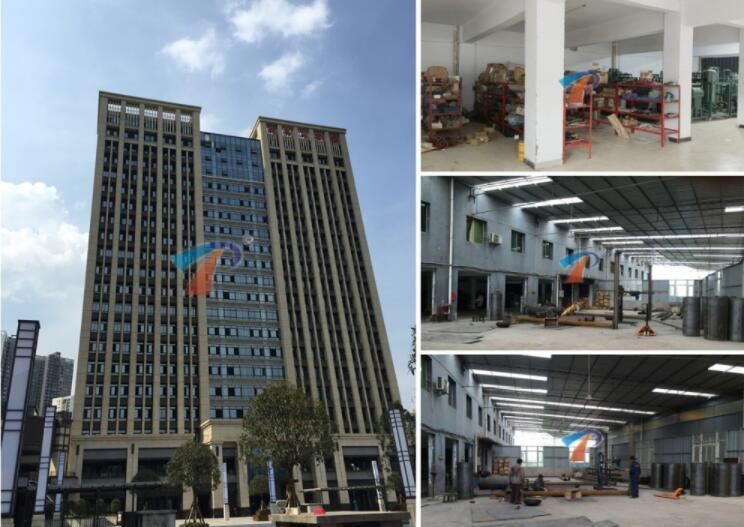

Our Company:




Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.

Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
