Small Size Drill Hole Deviation Measuring Device/Hole Wall Quality Tester
Beijing Samyon Instruments Co., Ltd.- After-sales Service：24hours
- Warranty：One Year
- Product Name：Drill Hole Monitor
- Communication：WiFi
- Band Width：1-500K
- Max Depth：150m
Base Info
- Model NO.：8360
- Weight：About 80kg
- Transport Package：Wood Case
- Trademark：SAMYON
- Origin：Cn
- HS Code：903180
- Production Capacity：600sets Per Month
Description
Type
8360
Data Logger
PC-104 Mainboard ,4 core processor,4G internal
Data Storage
64GB SSD hardware
Display
10.4 Inch Industrial LCD 1024×768
Operation Mode
Touchable
System
WES7 Insert version
Scan speed
≥20 repeat time/s
Band width
1-500K
Ultrasonic wave precision
≤0.5%
Measurement precision (Level)
0.2%FS
Range
320~7200mm
Frequency
45kHz/63kHz/88kHz
Transmit Power
1000V
Max depth
150m
Max depth resolution
≤5mm,Depth error≤1%
sound speed calibration
Yes

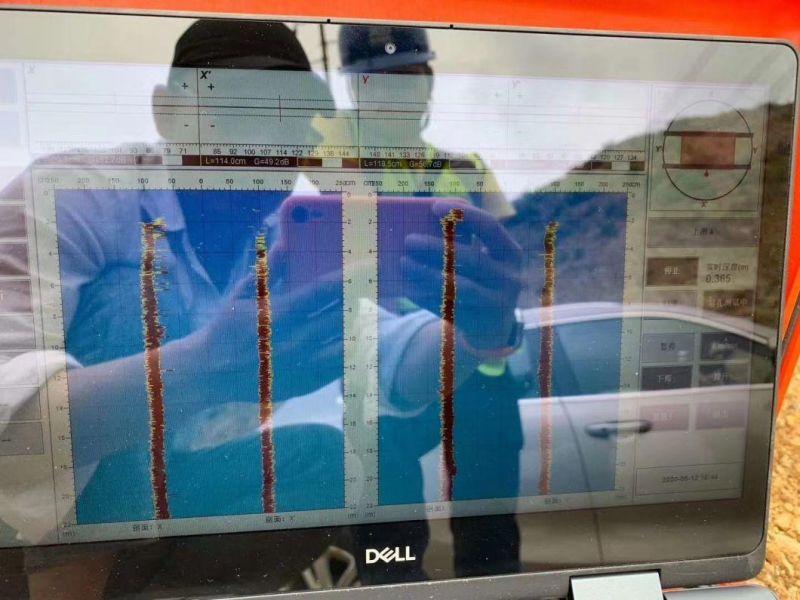

Data record mode
Color image, data file
Output mode
Printer(Color), USB or WIFI
Position
GPS
Work Mode
-20~+70ºC
Power supply mode
1.Data logger power
2.220V and 380V
Data logger size
350mm×250×150mm
Data logger weight
4.5KG
Ultrasonic sensor size
145mm*145mm*350mm
Ultrasonic sensor weight
15kg
Maximum mud density
1.3g/cm3
Lifting speed
Lifting up, down adjustable,0-20m/min adjustable, Emergency lift up.
Self-stop function
Borehole surface and borehole bottom auto self-stopping function.

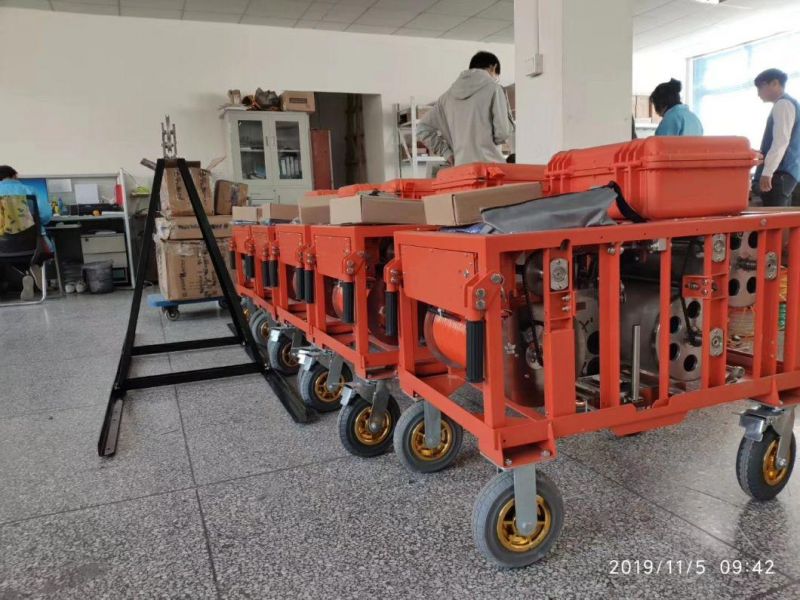

winch lifting system size
800mm×450mm×380mm
Winch lifting system weight
80kg
