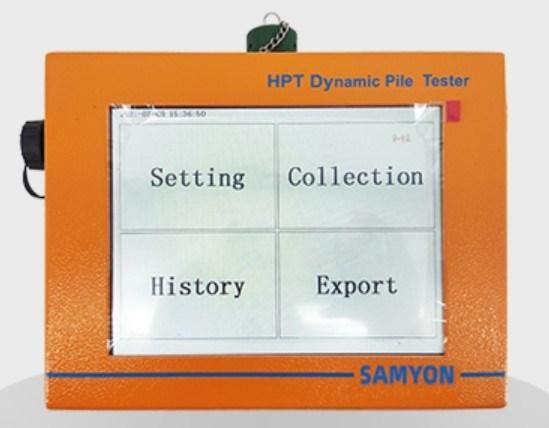

ASTM D4945 High Strain Dynamic Pile Tester for Pile Loading Capacity
Beijing Samyon Instruments Co., Ltd.- After-sales Service：24hours
- Warranty：One Year
- Standards：ASTM D 4945
- Sampling Frequency：10 kHz, 20 kHz, 40 kHz.
- Sampling Points：1024, 2048 and 4096.
- Maximum Sampling Time：up to 400 Ms
Base Info
- Model NO.：HPT
- Transport Package：Carton
- Specification：ISO
- Trademark：SAMYON
- Origin：China
- HS Code：903180
- Production Capacity：100 PCS ,Month
Description
Sampling frequency is Optional of 10 kHz, 20 kHz, 30 kHz and 40 kHz.
Sampling points are optional of 1024, 2048 and 4096. Maximum sampling time is up to 400 ms.
Before test the two accelerometers and two strain transducers are self-checked automatically, determine whether the system is in normal state.
Automatically check the static strain deviation of the strain transducer during installation and adjusted to zero before blow.
During test every blow can be saved automatically.
Built-in lithium battery can be used more than 5 hours continuously.
RCAPWAP program carry on match analysis automatically or manually.
