• Model NO.：TP-6698
• Transport Package：Wooden Case
• Specification：LCD display
• Trademark：TOP
• Origin：Chongqing, China
• HS Code：9027809900
• Production Capacity：200 Set,Month

Basic Info.

Model NO. TP-6698 Transport Package Wooden Case Specification LCD display Trademark TOP Origin Chongqing, China HS Code 9027809900 Production Capacity 200 Set/Month

Product Description

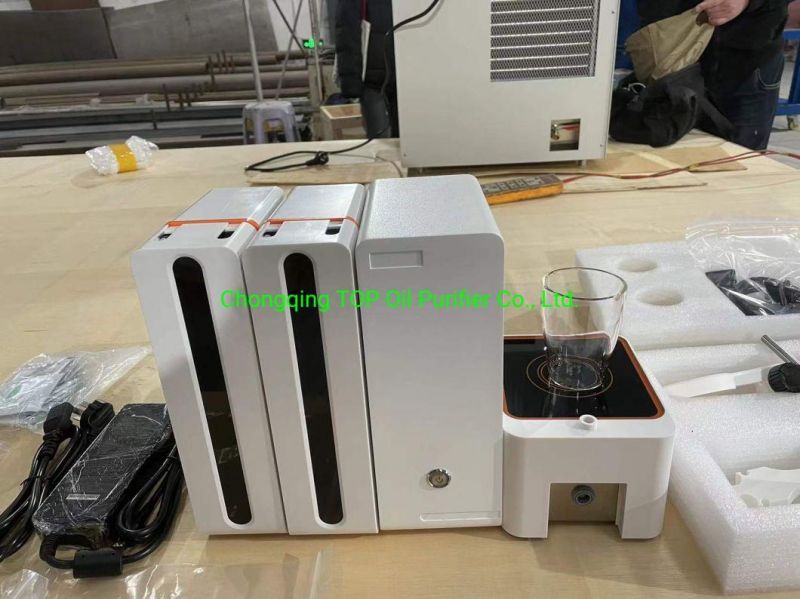

Widely Application Automatic Potentiometric Titrator(TP-6698)

Application:
TP-6698 Automatic Titrator meet the demand of mult complex liquid inlet automatically. There is no need to add solution manually. With the most secure built-in burette, to avoid contact with harmful chemicals which protect user security; Cloud services , connect via the Ethernet port ,to achieve the sharing between the instrument and Hanon huge database.Lead the laboratory instruments to Cloud generation.it refers to ASTM D2896 and ASTM D664.


Characteristics:
1. Multi-Channel modular combination, combine up to 4 dosing units & 6 channels work at   same time.
2. 3 standard burettes (5ml/10ml/25ml) available for options according to different application
3. Unique built-in dosing unit to avoid the harmless chemical leak.
4. Multiple self-checking function to avoid mis-operating.
5. Flexible application edit functions, users can storage your own titration mode according to your testing and use the storage mode next time with one click.
6. RS232/USB port,with networked CAN bus communication functions
7. Can work with external 16-samples auto-sampler, making the multitasking operation much easier.


Features
Mixed synchronous inlet system:
The world's leading Mixed synchronous inlet system with 4-channel sample inlet simultaneously, supports expand up to 6 channels. Totally automatic in add titrant, any combination of additives or auxiliary agents.

Built-in burette:
The most secure built-in burette, burette built in the instrument and can be observed though the window during the test to avoid the harmless chemical leak. Burette volume is optional:5ml/15ml/25ml

Cloud Service:
With ethernet interface,it can storage the database to the cloud server.Lead the laboratory instruments to Cloud generation.

Titration platform diversification:
Flexible to work with independence titration stand or 16 auto-sampler, multi-tasking operating through 16 auto-sampler can be fully automated, the whole process without staff to monitor, improve the work much more efficiency.

Technical parameters

MV measuring range	-2500.0MV~+2500.0MV
MV measuring Resolution	0.1MV
MV measuring Accuracy	0.1MV
pH measuring range	-20.000PH~+20.000PH
pH measuring Resolution	0.001PH
pH measuring Accuracy	0.003PH
Temperature measuring range	0~100ºC
Temperature measuring accuracy	±0.1ºC

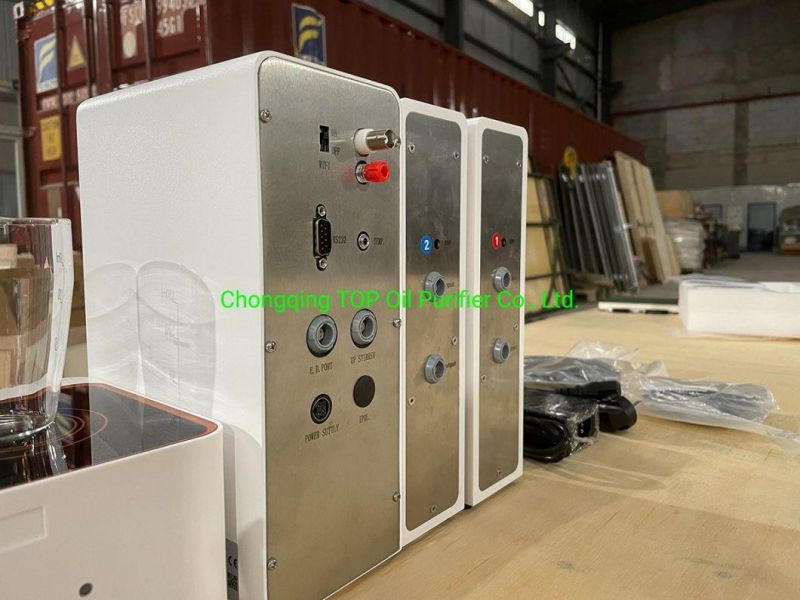

Interface	2xUSB, 1xRS232, 1xEthernet
Max titration station	6
Max liquid filling module	4
Burette	5ml, 10ml, 25ml
Burette resolution	1/48,000
Burette rehydration time	16 seconds (100% filling rate)
Operation	Controlled by PC
Electrode Interface Type	Q9, Q6, Combination electrode connector
Sampling	Up to 16 samples  (16 positions Auto-sampler is optional)

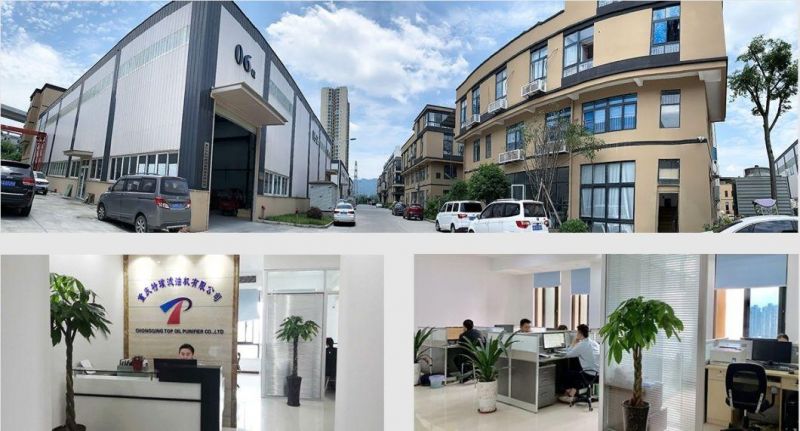

About us:
Hello Friend!
Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.

TOP Oil Purifiers uses single or multi-stage filtration to remove, particulate, free water, and small quantities of dissolved water if necessary. The systems are usually customized to suite the specific customer application. Oil "regeneration", "reclamation", "recycling" are all terms used to describe the process of restoring used, aged, contaminated oils to "like new" reusable condition. The reclamation process removes free water, most dissolved water, dissolved gas, particulate, carbon contamination, acids, oxidation by products, most color bodies, wear metals, and most additive chemicals.

TOP Oil Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
TOP Oil Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
