Ipx1~Ipx4 Water Resistane Test Chamber for Elctronics Parts
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece：700mm
- Mass Scope of Workpiece：<900kg
- Type：Water Resistane Test Chamber
- Maxcapacity：N,a
- Accuracy Grade：0.5
- Load Way：N,a
Base Info
- Model NO.：YWT-IPX3
- Loading Method：N,a
- Display：N,a
- Control：Manual Control
- Weight：100-500Kg
- Power Source：AC110V
- Test Standard：IEC60529
- Accessories：Wiper, Casters with Adjusters, etc
- Power：Customized
- Customization：Available
- Thiickness of Staninless Steel Plate：1.2mm
- Test Time：30mins
- Color：Stainless Steel
- Materials：Stainlsss Steel
- IP Level：Ipx1,Ipx2,Ipx3,Ipx4
- Application：Light,Lamp, Auto Parts, Electronics, etc.
- Transport Package：Strong Wood Carton
- Specification：IEC60529
- Trademark：Yuanyao
- Origin：China
- HS Code：9031809090
- Production Capacity：100 Sets,Month
Description
Major Specifications:Model YSRT-1728-A YSRT-1728-E(IEC-529)(CNS14165) Internal Dim.WHD(mm) 1200×1200×1200 1200×1200×1200 External Dim.WHD(mm) 1750×1850×1300 1750×1850×1300 Water Temp. Normal Normal
Spray Type
Total water
flow(L/min)R1 1.8 IP×1 With in 1--1.5mm/min(In drip box) R2 3.2 IP×2 With in 3--3.5mm/min(In drip box) S1 24.5 IP×3 angle±600,R:400mm,1.1L/min S2 39.2 IP×4 angle±1800,R:400mm,1.8L/min
Preesure of
spray nozzle
(kgf/cm 2 )R1 0.1 1.Flow rate of the water=0.07L/min
2.IP×3,Radius:400mm,Number or open holes=16,total water flow:1:1L/min.
3.IP×4,Radius:400mm,Number or open holes=25,total water flow:1:8L/min.
*Radius:200mm,R400mm.(For IP×3,IPx4) R2 0.3 S1 1 S2 3 (RPM)Test Specimen Frame 17RPM 1RPM
Spray Nozzle Rotation Speed23RPM
Swing 60°from vertical for 4 seconds at one time
Swing 180°from vertical for 12 seconds at one time
Material Interior SUS#304 Exterior Other Components Chamber lamp.Wiper
casters with Adjusters Chamber lamp.Wiper,casters with Adjusters Power Source [K.W] AC 1Ψ 220V 60/50Hz 4KW

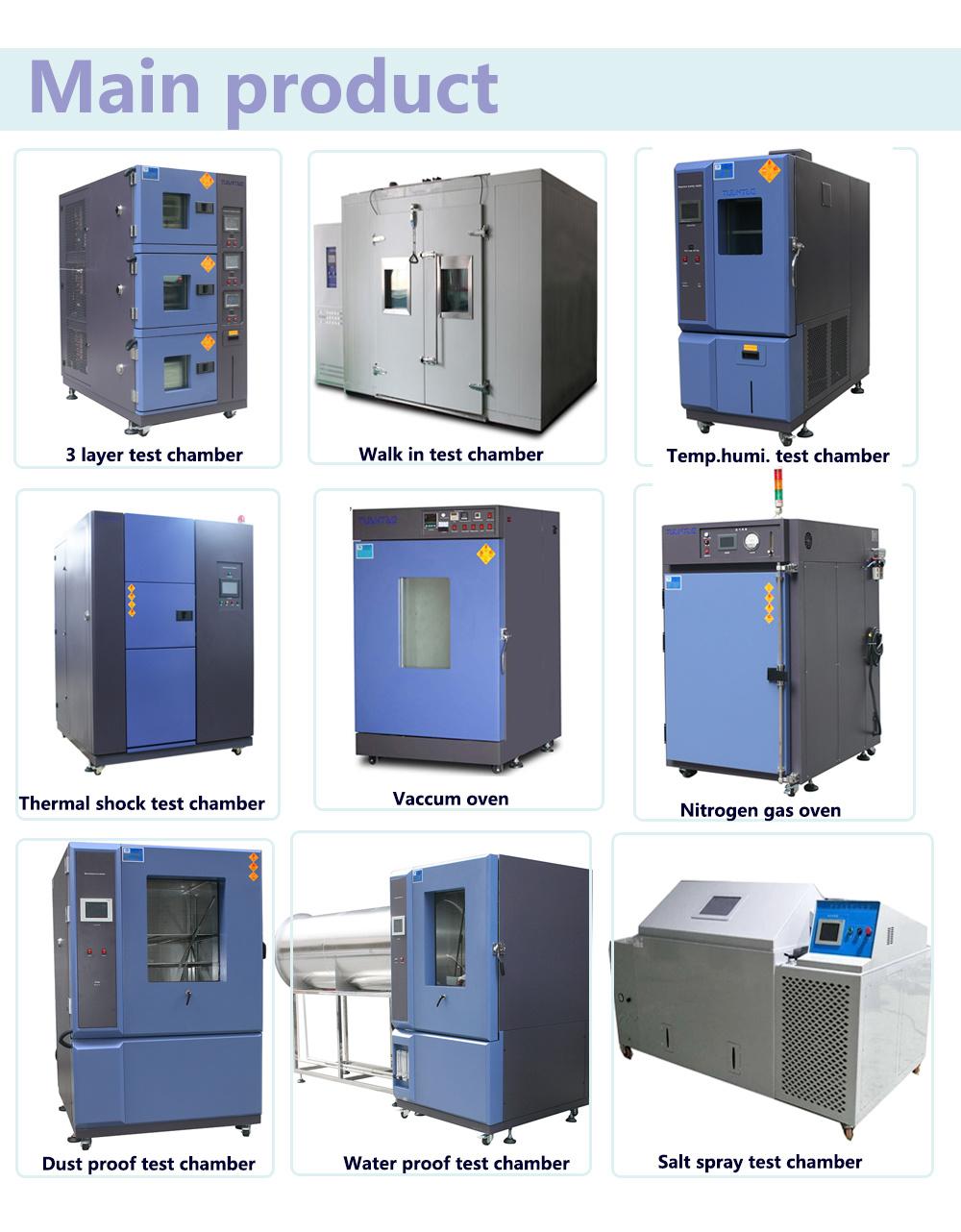

In addition to IEC60529 IPX1 ~ IPX6 grade water rain spray test chamber, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Other styles / size with different configurations are available upon request, welcome to enquire and purchase!

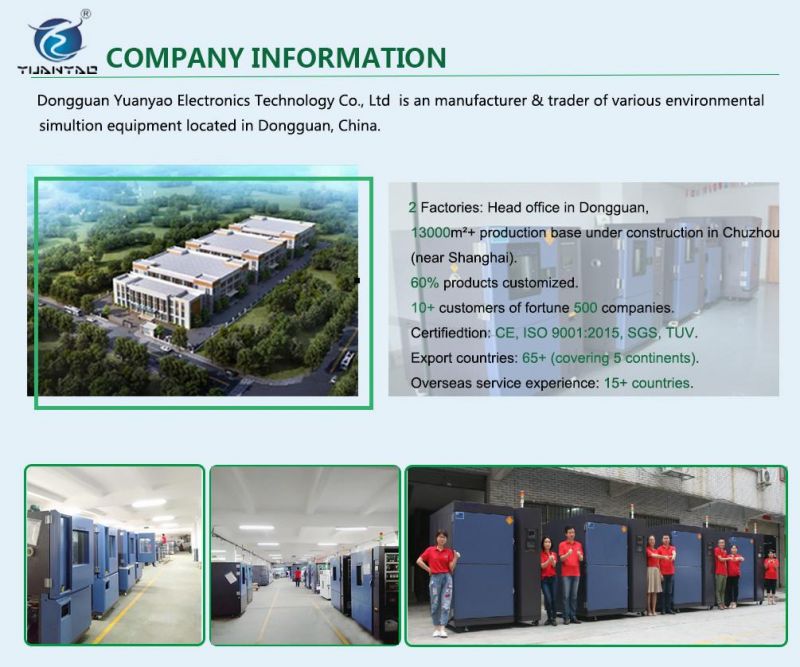

Company profile
If you have any question,please feel free to contact us.
We are here waiting for you !
