• Model NO.：HJ-69
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-69 Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

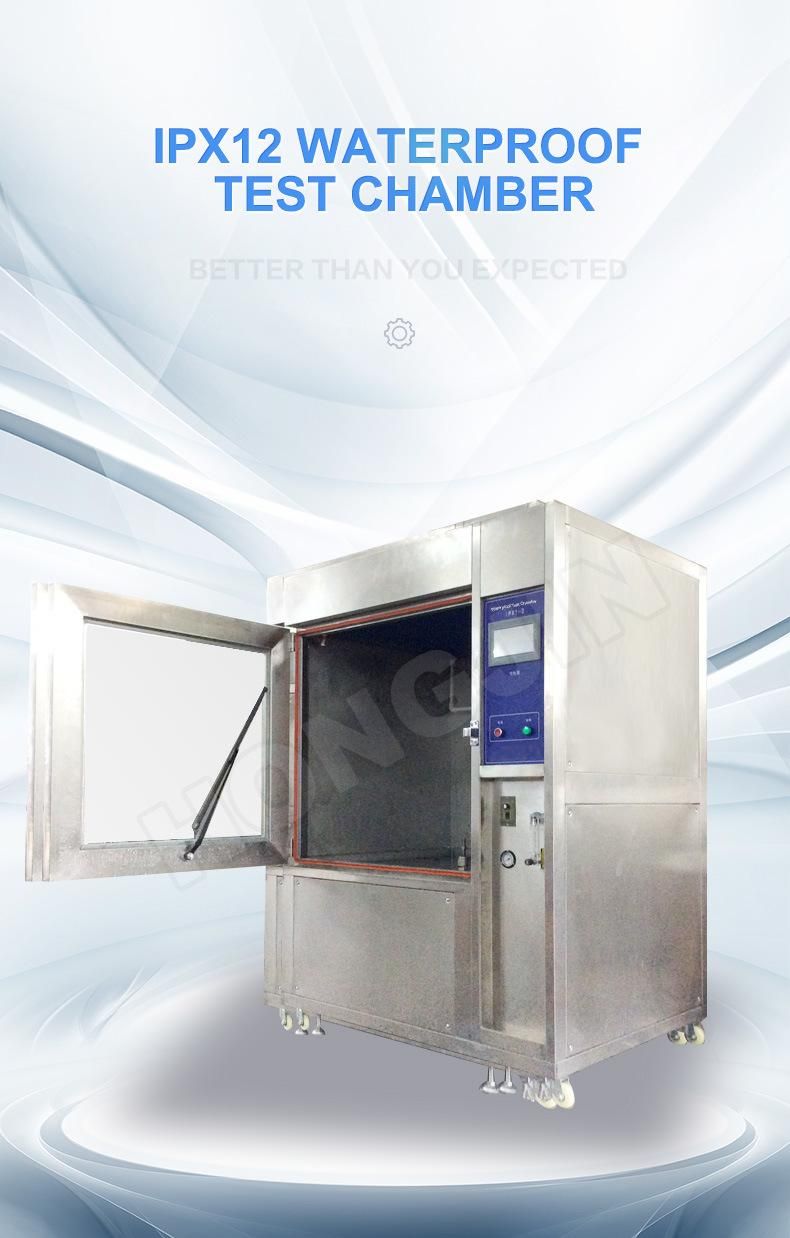

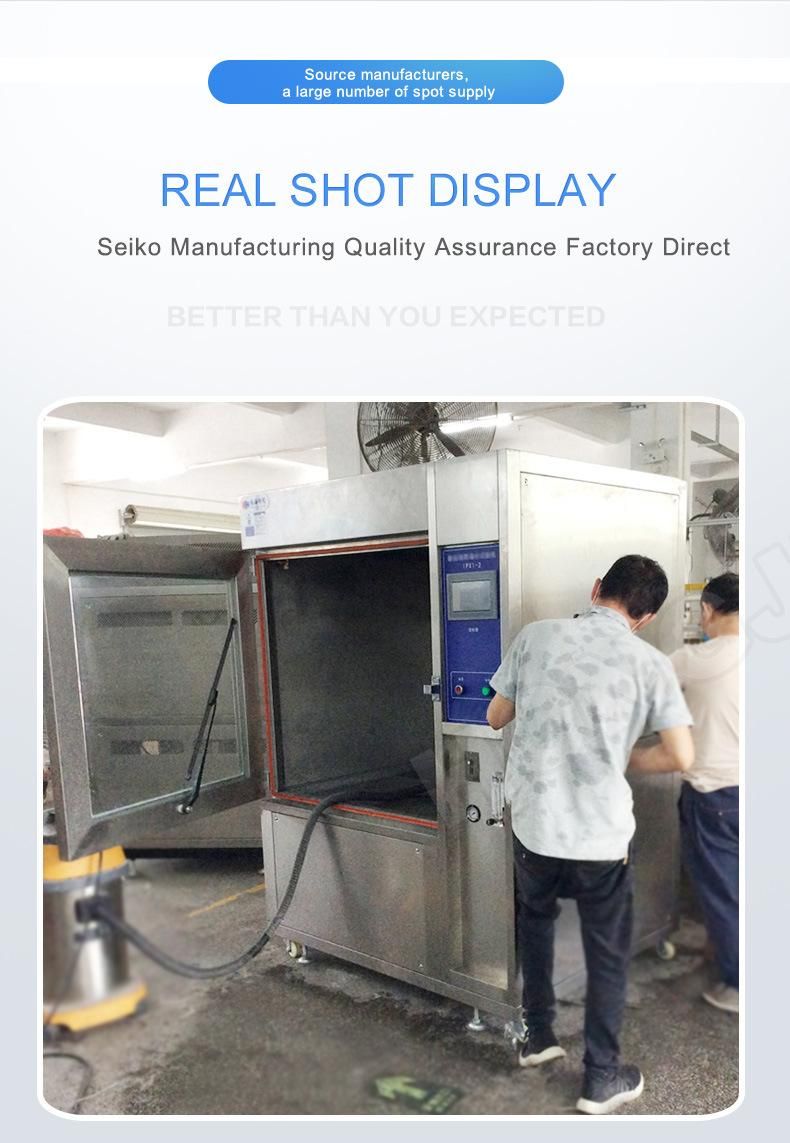

Rain test chamber application
The application of the rain test machine has a greater impact on product aging, pigment fading, and metal corrosion. Therefore, aging tests are increasingly being valued by industries such as rubber, plastics, chemicals, automobiles, and textiles. There are many climatic and environmental factors. Such as temperature, humidity, rain, etc., the waterproof test box is an environmental test equipment that simulates rain
This product is suitable for testing whether electrical products, housings and seals can ensure good performance of equipment and components in a rainy environment. The drip test that meets the IP protection level IPX1/IPX2 is mainly suitable for external lighting and signal devices and the waterproof test of automobile lamp housings. At the same time, it detects that the product may be affected by water intrusion during transportation or use, and provides a reliable basis for product technical standards ; The whole test process is completed in the box, the water will not splash outside, and the water can be recycled.

Meet the standard: GB/T4208-2017 IEC 60229:2013

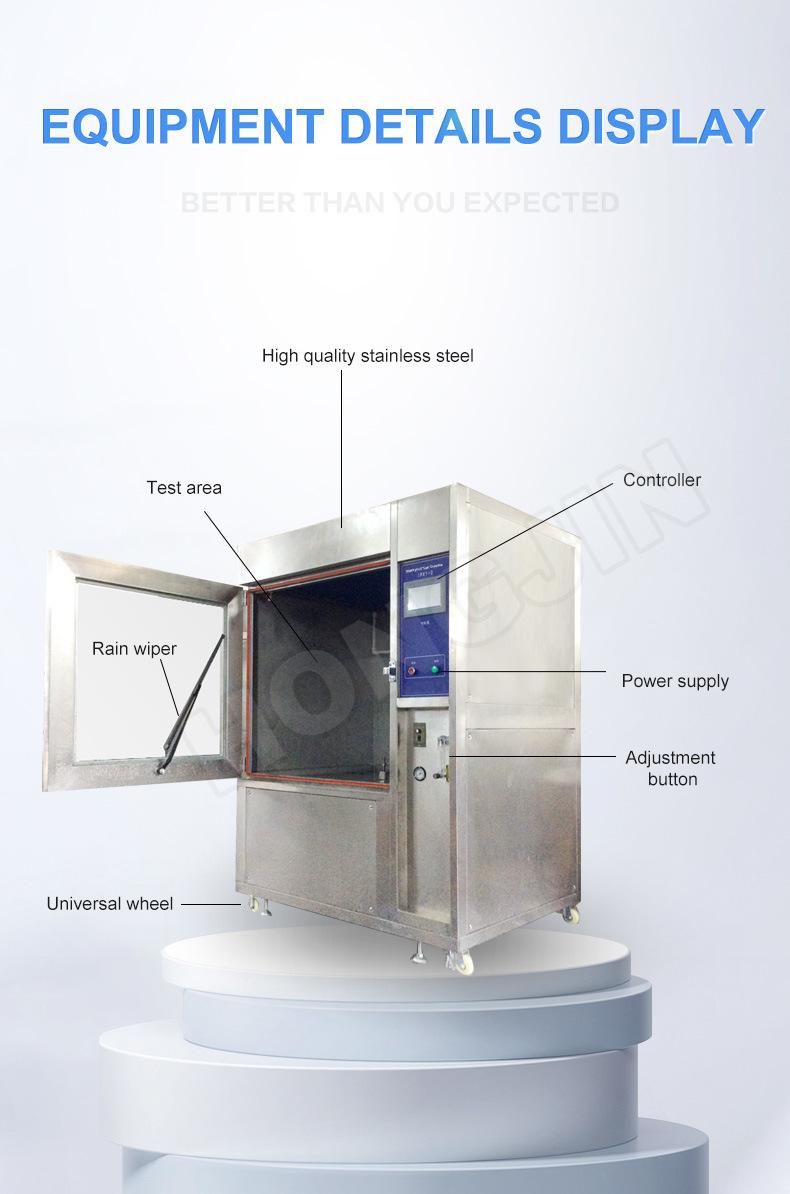

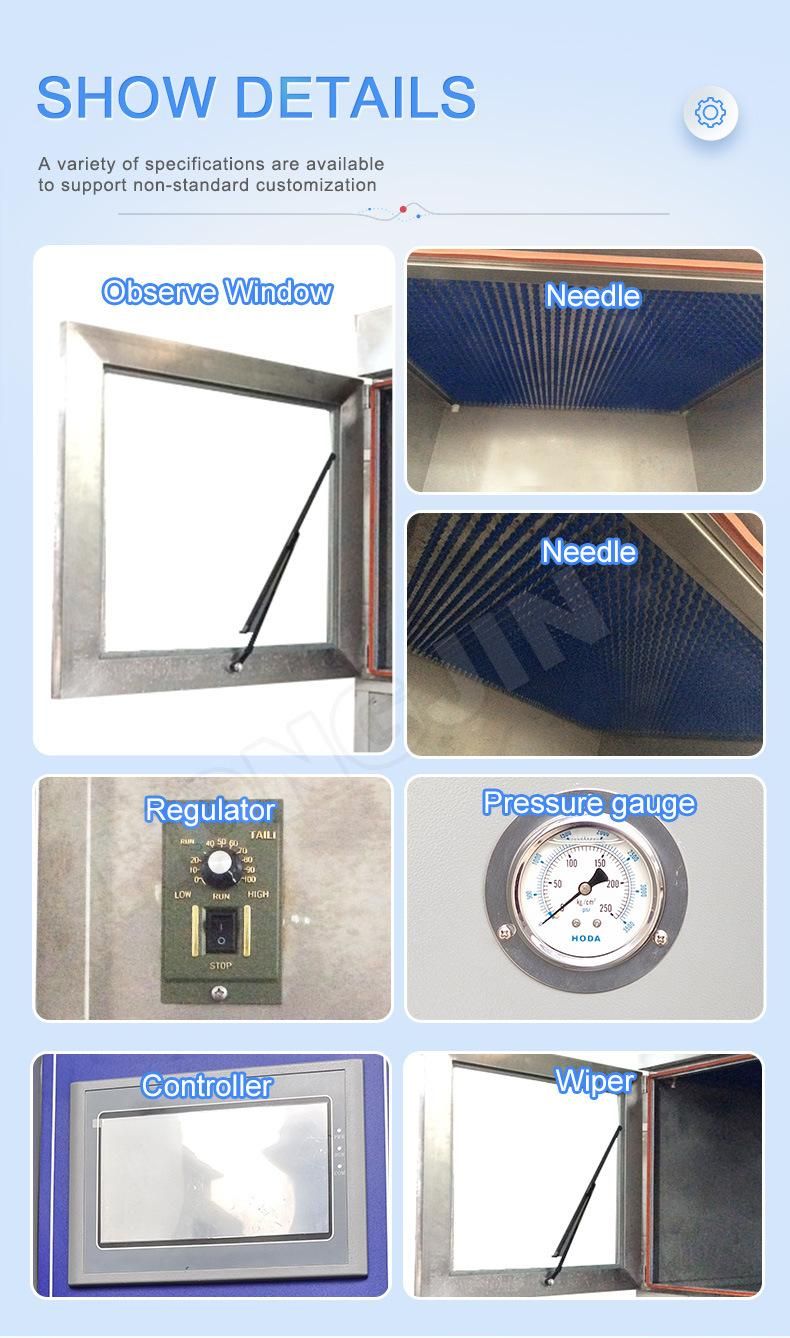

Structural Material:
1. The inner tank is made of stainless 304 steel
2. The outer box is made of stainless 304 steel
3. The sample stage is equipped with a round turntable with adjustable speed

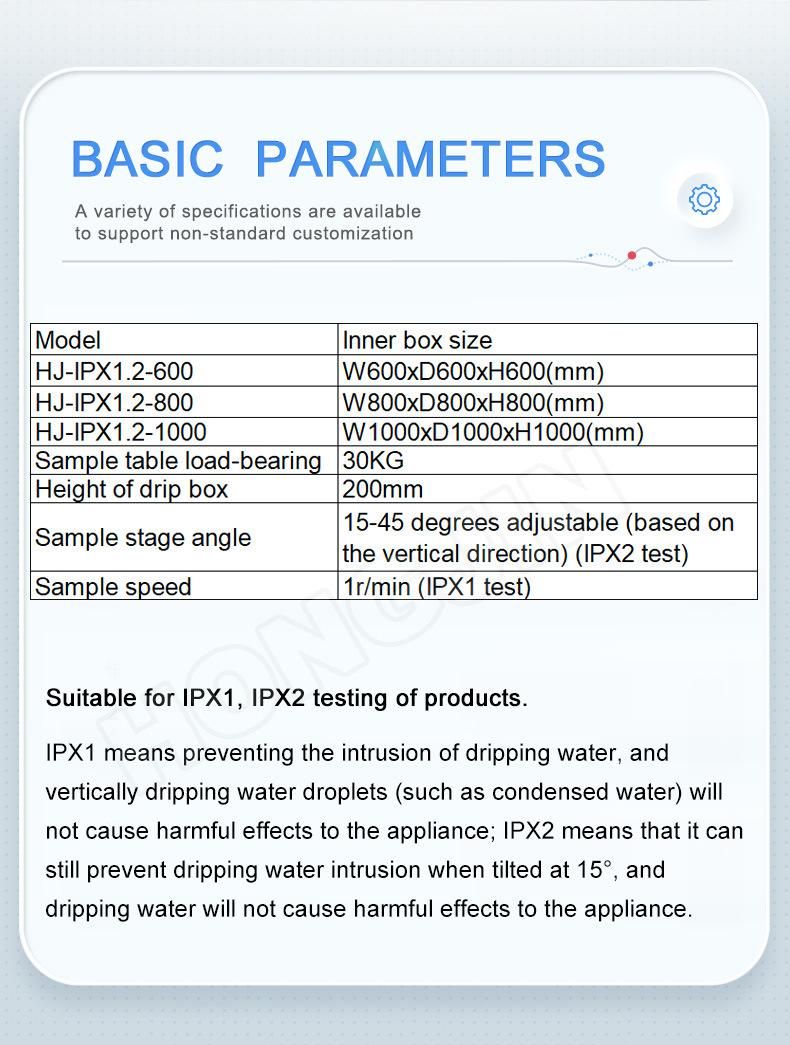

Model	Inner box size
HJ-IPX1.2-600	W600xD600xH600
HJ-IPX1.2-800	W800xD800xH800
HJ-IPX1.2-1000	W1000xD1000xH1000
Sample table load-bearing	30KG
Height of drip box	200mm
Sample stage angle	15-45 degrees adjustable (based on the vertical direction) (IPX2 test)
Sample speed	1r/min (IPX1 test)
