• Model NO.：THR-Volume-A
• Test Hole：Dia. 50mm
• Application：Pharmaceuticals
• Transport Package：Wooden Case
• Specification：CE, ISO
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：8514109090
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. THR-Volume-A Test Hole Dia. 50mm Application Pharmaceuticals Transport Package Wooden Case Specification CE, ISO Trademark ASLi Origin Guangdong, China HS Code 8514109090 Production Capacity 100 Sets/Month

Product Description

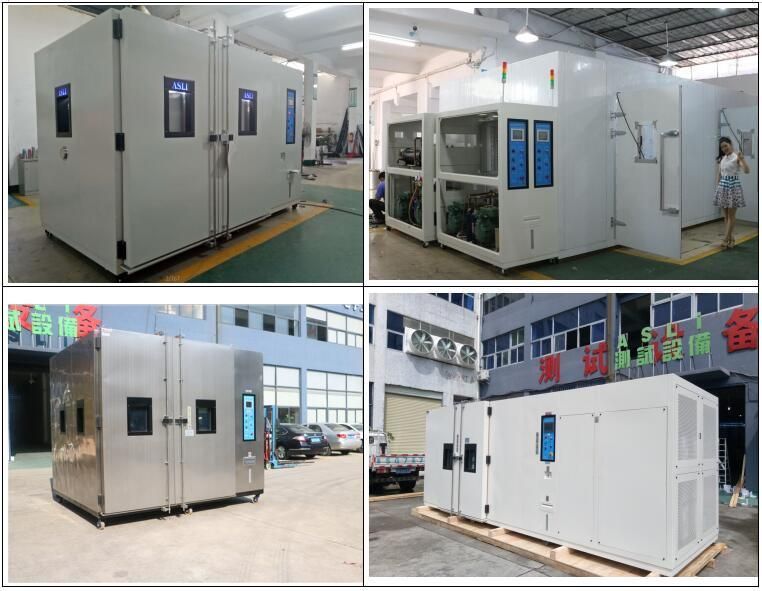

ICH Walk In Temperature Humidity Stability Chamber for Pharmaceuticals


Product Description

laboratory walk in climate chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.



Walk in Test Room Technical Parameters:

Model	THR-volume (low-temperature options : A ~ F)
Inner Dimensions(cm)	Customers designated space size and design
Temperature Range	Low Temperature(A:25ºC  B:0ºC  C:-20ºC D:-40ºC  E:-60ºC  F:-70ºC) High Temperature 80ºC (80ºC ~150ºC is optional)
Humidity Range	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)
Control Accuracy  of Temperature and Humidity	±0.5ºC; ±2.5% R.H.
Temperature Rising/Falling Velocity	Temperature rising approx. 0.1~3.0°C/min  temperature falling approx. 0.3~1.0°C/min; ( The Falling Velocity Min.1.0°C /min is a optional)
Cooling System	Water cooled
Optional Accessories	Slope for cart , Recorder, Water Purifier, Dehumidifier



Temperature Test Room Features:

1. Graceful appearance, circularly shaped body, surface treated with mist strips . Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for viewing sample under test, with interior light
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5.French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, with quick or ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.

Corresponding standard :

1. GB11158 Technical conditions for high-temperature testing room

2. GB10589-89 Technical conditions for low-temperature testing room

3. GB/T10586-89 technical conditions for humidity testing room

4. GB/T2423.1-2001 testing methods for low-temperature

5. GB/T2423.2-2001 testing methods for high-temperature

6. GB/T2423.3-93 technical conditions for humidity testing room

7. GB/T2423.4-93 testing method for alternating hot and humid

8. IEC60068-2-1.1990 testing methods for low-temperature

9. IEC60068-2-2.1974 testing methods for high-temperature

10. GJB150.3 High-temperature test

11. GJB150.4 Low-temperature test

12. GJB150.9 muggy test

13. GB/T2423.22 temperature test
