Large Test Range Underground Cable Locator Fault Tester
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provide lifelong after-sales service
- Warranty：1 Year
- Pulse amplitude：100Vpp
- Pulse width：0.1uS and 2uS
- Measuring distance：Smax: 30km Smin: 15m
- Power supply：USB3.0 or standard phone USB charge.
Base Info
- Model NO.：ZX-A11
- Shape：210*165*45mm
- Weight：0.9kg
- Transport Package：Carton,Wooden Case
- Specification：With the change of technical scheme
- Trademark：GDZX
- Origin：Hubei
- Production Capacity：500 Pieces,Month
Description
ZX-A11 Cable Fault Tester is for detecting cable fault of various kinds, cables of different cross-sections, different media or materials, like power cables, high-frequency coaxial cable, local cable, street lamp cable, underground wires. The cable faults like low resistance, short circuit, wire breaking open circuit fault, high resistance leak and flash-over fault. Super cable management system, auto report generation.
Technical Indicators
| Pulse amplitude: | 100Vpp |
| Pulse width: | 0.1uS and 2uS |
| Measuring distance: | Smax: 30km Smin: 15m |
| Measurement error: | rough measurement absolute error:±10m, rough measurement relative error:±1% |
| Power supply: | USB3.0 or standard phone USB charge. |
| Shape: | 210*165*45mm |
| Weight: | 0.9kg |

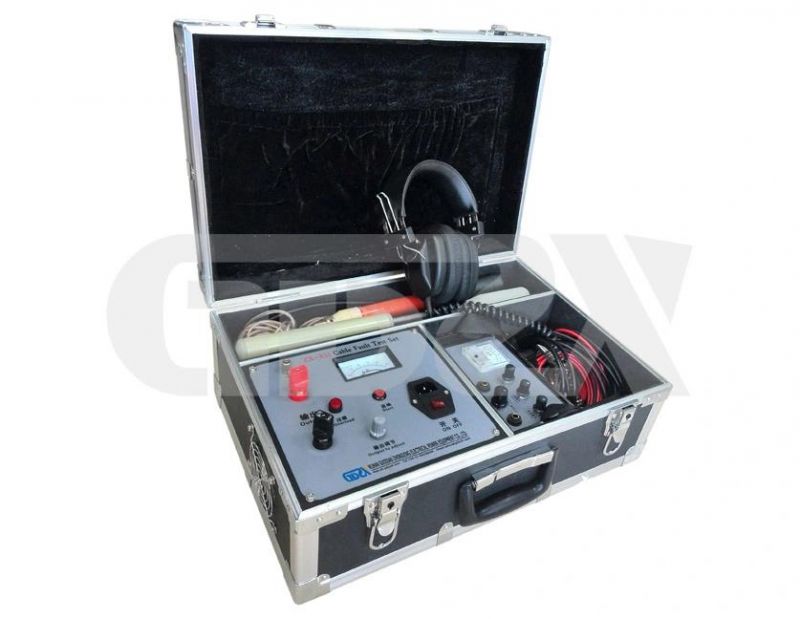

Device display
About GDZX
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Shipping and packaging
Features1. Control by Industrial laptop, RS232 communication interface
2. Windows operating system, super cable management system, automatically generate test reports.
3. Fault distance, speed test functions; the smallest, lightest cable fault tester.
4.100MHz sampling frequency, the minimum resolution 0.5m (100m / us).
5. Automatic continuous sampling, never miss any discharge waveform.
6. Test Method: flashover, low-voltage pulse sampling.
7. Waveform Analysis: single / multiple pulse method, manual / automatic method, online expert method.
